CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory

Name: CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory
Brand: CLGR®

G80 Forged Alloy Eye Safety Hook, also called G80 Eye Self-Locking Hook, Safety cargo hook and Eye Hook with Positive Locking Latch. It is made from superior alloy steel that's heat-treated for extra durability, and it can be quickly and safely connected to Grade 80 Chain.

The self-locking hook is designed with an automatic locking mechanism that securely closes under load, preventing slings from slipping out or disengaging, thereby significantly enhancing safety during lifting operations.

To Get A Quote >

CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory Manufacturers

CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory Suppliers

CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory Factory

CLGR® Grade 80 Forged Alloy Eye Safety Hook - The China Manufacturer Supplier, Factory Exporter

 

Overview of CLGR® Grade 80 Forged Alloy Eye Safety Hook

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, 32mm
Standard	European Type
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Forged / Heat Treatment
Surface Finish	plastics spraying
Important Note	Using with grade 80 alloy chain or wire rope for overhead lifting

Specifications of CLGR® Grade 80 Forged Alloy Eye Safety Hook

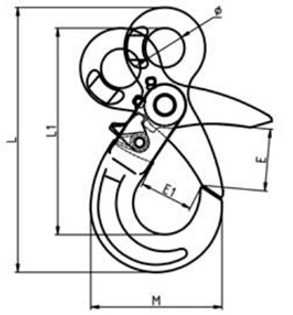

Part No.	Weight (kg)	W.L.L.(t)	B.L.(t)	Φ±1	E±2	E1±2	L1±3	L±3
8CRESLH6	0.5	1.12	4.48	21	35	28	110	141
8CRESLH7/8	0.88	2	8	25	40	35	136	175
8CRESLH10	1.58	3.15	12.6	34.5	50	45	168	214
8CRESLH13	3.0	5.3	21.2	40	60	52.5	207	268
8CRESLH16	5.9	8	32	50	65	63.3	254	332
8CRESLH18/20	7.0	12.5	50	64.5	80	86	274.5	332
8CRESLH22	12.3	15	60	70	83	76	319	415
8CRESLH26	20	21.2	84.8	80	106	96	362	472
8CRESLH32	44	31.5	126	105	140	133	470	614
