CLGR® Grade 80 Eye Safety Hook with Dacromet European Type - Trawling Gear

Name: CLGR® Grade 80 Eye Safety Hook with Dacromet European Type - Trawling Gear
Brand: CLGR®

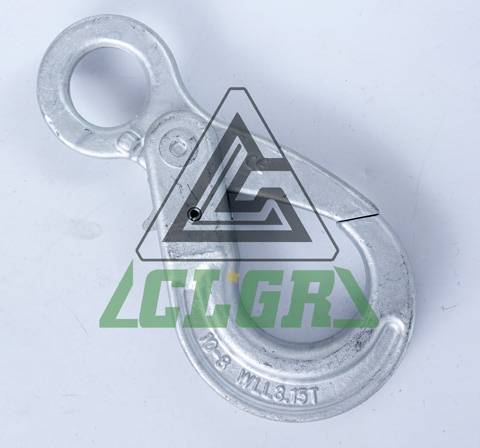

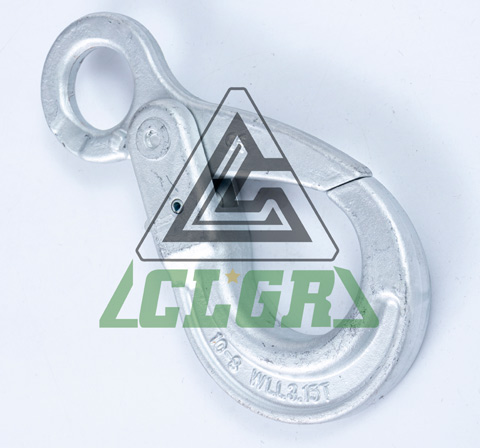

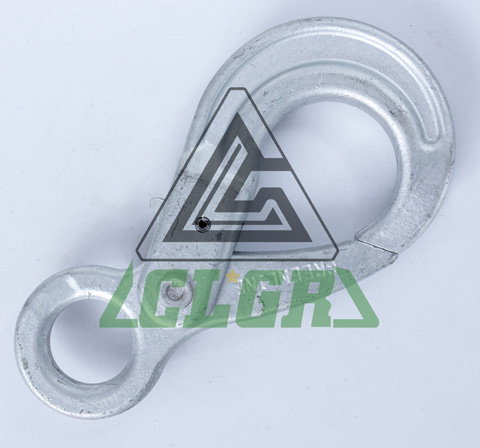

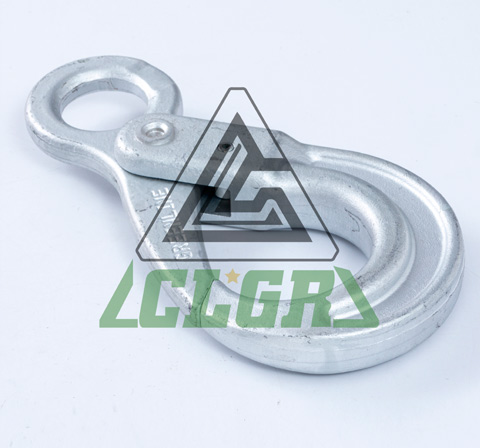

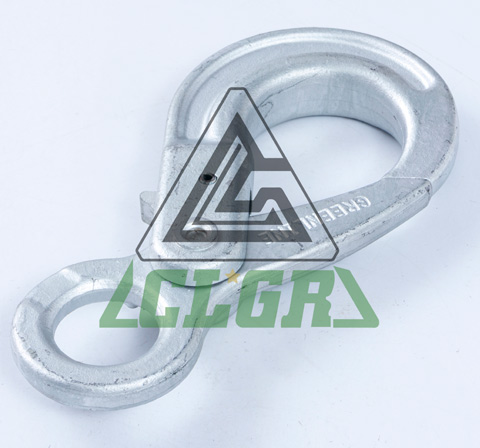

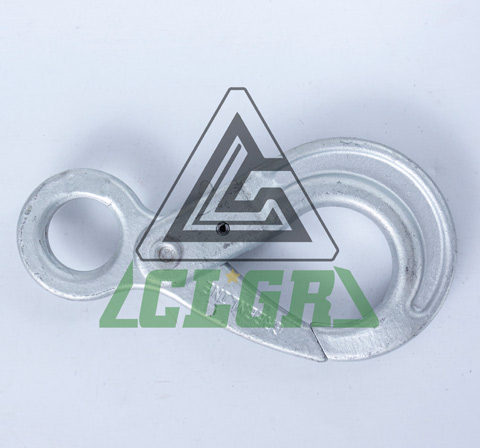

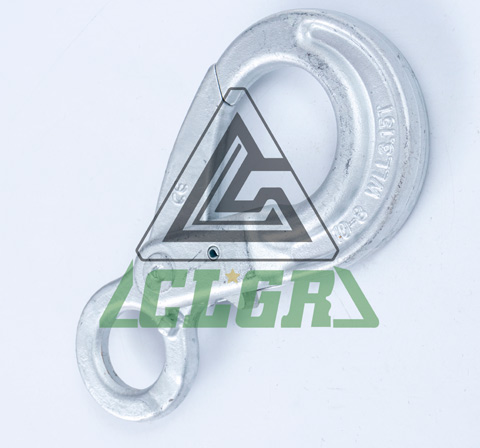

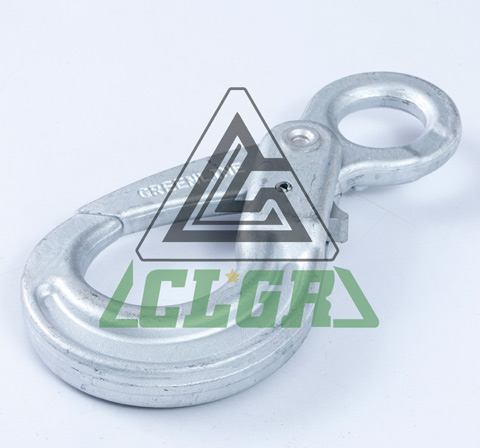

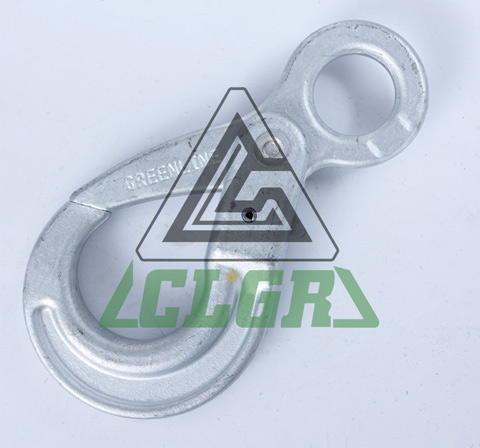

G80 Eye Safety Hook with Dacromet European Type, also called Grade 80 Eye Self-Locking Hook and Safety cargo hook. It is made from superior alloy steel that's heat-treated for extra durability, and it can be quickly and safely connected to Grade 80 Chain.

The Dacromet describes a specialized dip-spin coating technology that deposits a zinc-rich sacrificial coating. The Dacromet provides excellent corrosion resistance and gives it a metallic silver appearance, perfectly for tough ocean fishing jobs.

The self-locking mechanism ensures the hook remains securely closed under load, preventing accidental release. For optimal safety, always attach the load to the bottom of the chain system.

To Get A Quote >

7 CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Trawling Gear

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Factory

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Exporter

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type China

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type for Sale

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Price

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Company

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Cost

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Wholesale Manufacturers

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Wholesale Suppliers

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Factories

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Companies

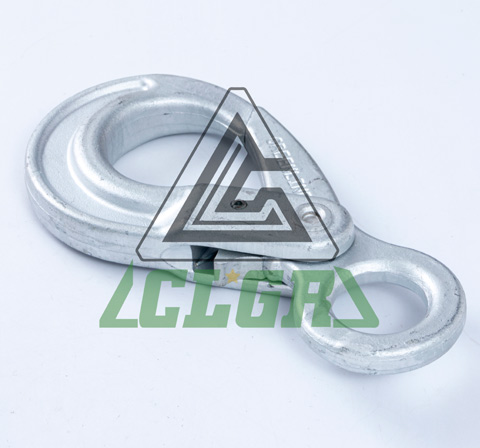

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Maker

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Speed

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Function

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Uses

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Application

CLGR® Grade 80 Eye Safety Hook with Dacromet European Type Suppliers

 

Overview of CLGR® Grade 80 Eye Safety Hook with Dacromet European Type - Trawling Gear

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, 32mm
Standard	European Type
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Forged / Heat Treatment
Surface Finish	Dacromet
Important Note	Using with grade 80 alloy chain or wire rope for overhead lifting

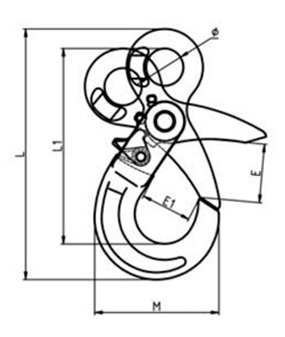

Specifications of CLGR® Grade 80 Eye Safety Hook with Dacromet European Type - Trawling Gear

Part No.	Weight (kg)	W.L.L.(t)	B.L.(t)	Φ±1	E±2	E1±2	L1±3	L±3
8CRESLHDA6	0.5	1.12	4.48	21	35	28	110	141
8CRESLHDA7/8	0.88	2	8	25	40	35	136	175
8CRESLHDA10	1.58	3.15	12.6	34.5	50	45	168	214
8CRESLHDA13	3.0	5.3	21.2	40	60	52.5	207	268
8CRESLHDA16	5.9	8	32	50	65	63.3	254	332
8CRESLHDA18/20	7.0	12.5	50	64.5	80	86	274.5	332
8CRESLHDA22	12.3	15	60	70	83	76	319	415
8CRESLHDA26	20	21.2	84.8	80	106	96	362	472
8CRESLHDA32	44	31.5	126	105	140	133	470	614
