CLGR® G100 Eye Safety Hook, also referred to as G100 Eye Self Locking Hook, Self Locking Slip Hook, Grade 100 Self-Closing Eye Hook Grade 100 Eye Latchlok Self-Locking Hook and Safety cargo hook.
The Self-Locking hook automatically close and lock under load. Made from superior alloy steel with heat-treated for extra durability, this eye safety hook features a convenient eye design that makes it easy to connect to all kinds of lifting gear - ropes, straps, cables and chains.
Grade 100 alloy is approved for overhead lifting.
Quality Assured: Click on our specific test videos.
Brand | CLGR® |
Size | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm |
Standard | European Type |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Forged / Heat Treatment |
Surface Finish | Powder Coated |
Important Note | Using with Grade 100 alloy chain or wire rope for overhead lifting |

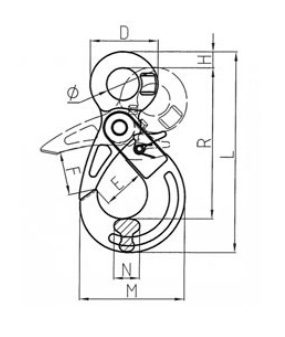

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A | D±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
10CRESH06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 20 | 110 | 70 | 141 |
10CRESH08 | 0.9 | 2.5 | 10 | 27 | 51 | 35.5 | 26 | 137 | 90 | 175 |
10CRESH10 | 1.5 | 4 | 16 | 34.5 | 64.3 | 45 | 30 | 169 | 108 | 212.5 |
10CRESH13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.5 | 40.5 | 209 | 138.5 | 270 |
10CRESH16 | 5.7 | 10 | 40 | 50 | 104 | 62 | 50.5 | 254 | 170.5 | 331 |
10CRESH20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 62 | 277 | 192.5 | 369 |
10CRESH22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 66 | 319.5 | 205 | 417 |
