CLGR® Alloy Viking G Hook LS Type - By Steel Plate

Name: CLGR® Alloy Viking G Hook LS Type - By Steel Plate
Brand: CLGR®

CLGR® Alloy Viking G Hook LS Type is made from cutting by steel plate. Ultimate load is 5 times the Working Load Limit.

Our G hooks are engineered to excel in extreme working conditions spanning industries like construction, offshore marine, and heavy manufacturing.

Viking g hook from China manufacturer can offer superior load-bearing capacity, military-grade reliability and cost-effective solutions for global buyers.

Conduct sampling inspection and perform 20,000 times fatigue testing;

Implement rigorous sampling and fracture testing for each production batch;

Execute 100% magnetic particle inspection (MPI).

To Get A Quote >

CLGR® Alloy Viking G Hook LS Type Factory

CLGR® Alloy Viking G Hook LS Type Exporter

CLGR® Alloy Viking G Hook LS Type for Sale

CLGR® Alloy Viking G Hook LS Type Company

CLGR® Alloy Viking G Hook LS Type Wholesale Manufacturers

CLGR® Alloy Viking G Hook LS Type Wholesale Suppliers

 

Overview of CLGR® Alloy Viking G Hook LS Type - By Steel Plate

Brand	CLGR®
Material	Super Alloy Steel
Safety Factor	5: 1
Processing	Cutting / Heat Treatment
Finish	Powder Coated
WLL	1.0t, 1.5t, 3.2t, 5.6t
Tips	Color Code: Customized according to customers' requirements
Note	Never exceed working load limit

Specifications of CLGR® Alloy Viking G Hook LS Type - By Steel Plate

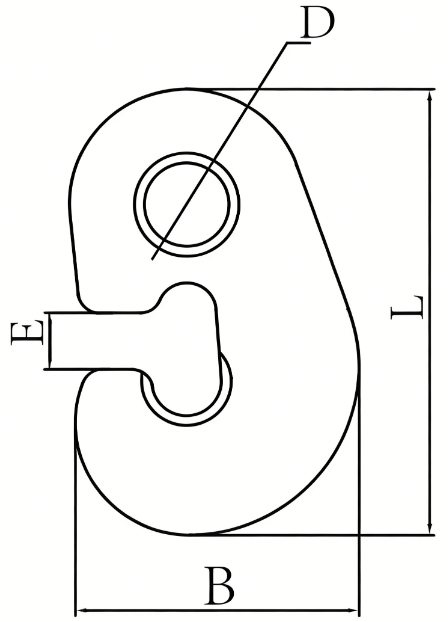

drawing-alloy-viking-g-hook-ls-type-by-steel-plate

Part No.	WEIGHT	WLL/T	B.L/T	D±1	B±2	E±0.5	L±1.5
8CR-EG1T	0.33	1	5	17	57	11.5	91
8CR-EG1.5T	0.6	1.5	7.5	20	66	13	107
8CR-EG3.2T	0.9	3.2	16	26	77	15	123
8CR-EG5.6T	3.1	5.6	28	38	115	23	180
8CR-EG10T	4.4	10	50	41	126	25	195
8CR-EG12.5T	6.6	12.5	62.5	47	140	28	230
