CLGR® Grade 80 Eye Sling Hook with Latch GS Type - The China Manufacturer Supplier, Factory

Name: CLGR® Grade 80 Eye Sling Hook with Latch GS Type - The China Manufacturer Supplier, Factory
Brand: CLGR®

Grade 80 Eye Sling Hook with Latch, also known as Eye Sling Hook with Safety Catch and Eye Slip Hook with Latch. It is designed for the assembly of chain slings and forged by super alloy steel and conforms to EN 1677-4.

G80 Eye Sling Hook with Latch is a connecting device used with eye connector and grip latch for lifting and hoisting operations. Its rotating design allows lifted objects to turn freely during movement, reducing risks caused by friction.

This product meets the G80 standard, offering high strength and stability. It also features a safety latch to prevent accidental release.

To Get A Quote >

CLGR® Grade 80 Eye Sling Hook with Latch GS Type - The China Manufacturer Supplier, Factory Manufacturers

CLGR® Grade 80 Eye Sling Hook with Latch GS Type - The China Manufacturer Supplier, Factory Suppliers

CLGR® Grade 80 Eye Sling Hook with Latch GS Type - The China Manufacturer Supplier, Factory Exporter

Overview of CLGR® Grade 80 Eye Sling Hook with Latch GS Type

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm
Standard	European Type
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered.
Latch	Forged / Casted / Stamped
Surface Finish	Body: Powder coated
Latch	Hot dip galvanized / Galvanized / Dacroment / Stainless steel
Important Note	Using with grade 80 alloy chain or wire rope for overhead lifting.

Specifications of CLGR® Grade 80 Eye Sling Hook with Latch GS Type

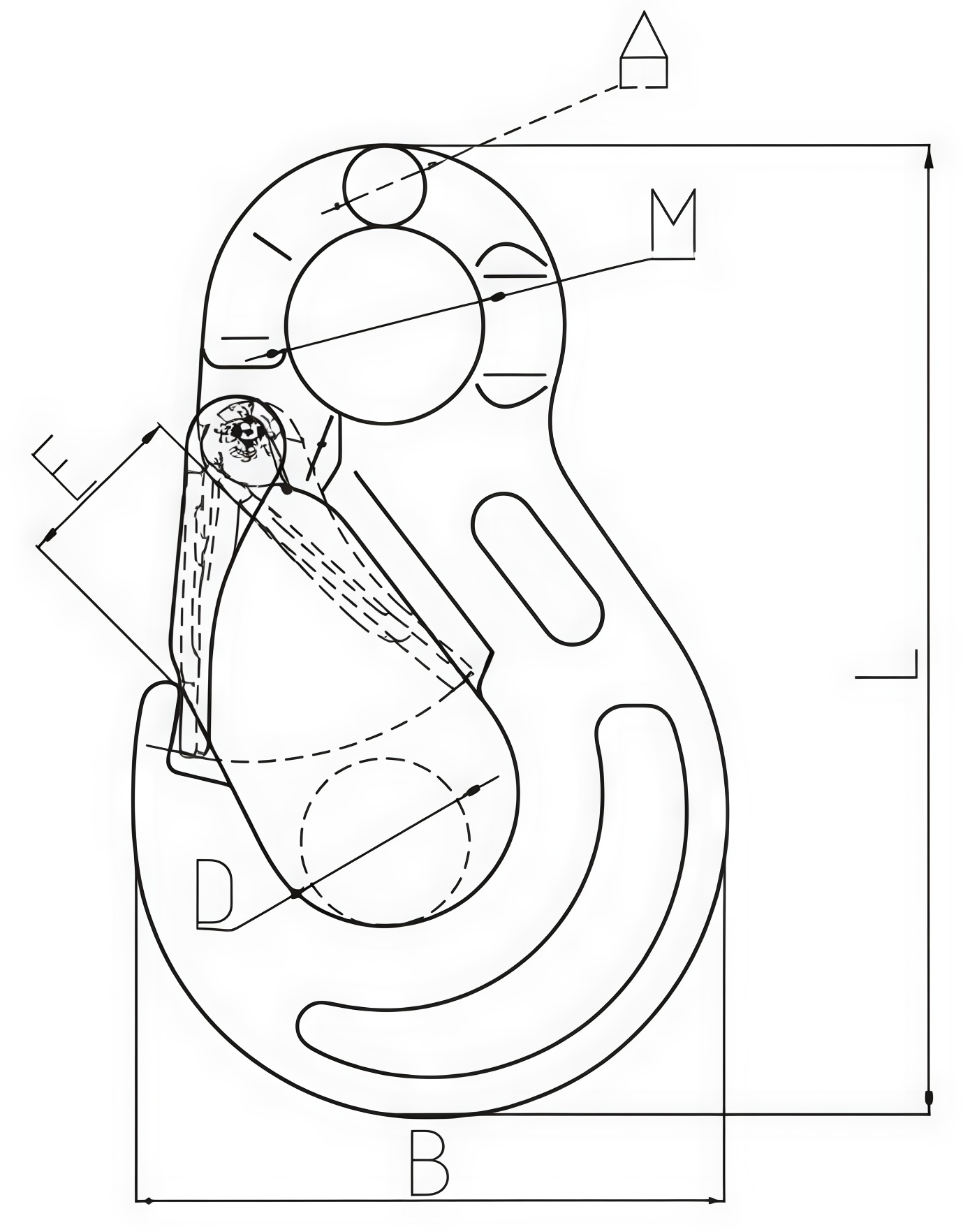

Part No.	WEIGHT /kg	W.L.L. (T)	B.L. (T)	M±2	A±2	E±2	H±3	B±3	L±3	D±3
8CRESHGS06	0.3	1.12	4.48	20.5	9	18.5	20	68	109	17
8CRESHGS7/8	0.55	2	8	25	11	22	27	84	133.5	24
8CRESHGS10	1.05	3.15	12.6	34	14	28	33	102.5	167.5	29
8CRESHGS13	1.75	5.3	21.2	42.5	17.5	35	40	128.5	207.5	36
8CRESHGS16	3.2	8	32	52	22	43	48	156.5	253	50
8CRESHGS20	5.3	12.5	50	62	26	51.5	56	187	300	60
