G80 Viking OFG Hook Alloy Steel is also called G80 Viking G hook.
It can be matched with sling and G80 chains which can meet the standard EN818-2 standards.
To ensure the highest quality and reliability, we conduct strict sampling and breakage testing for each batch of products, along with fatigue testing up to 20,000 cycles. Additionally, 100% magnetic particle inspection is performed to detect any surface or near-surface flaws, guaranteeing the durability and safety of every product.
Brand | CLGR® |
WLL | 3.15T, 5.3T, 8T, 12.5T |
Standard | European Type |
Material | Superior Alloy Steel |
Safety Factor | 5: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Powder Coating |
Note | Special specifications and marks can be made according to customer requirements. |

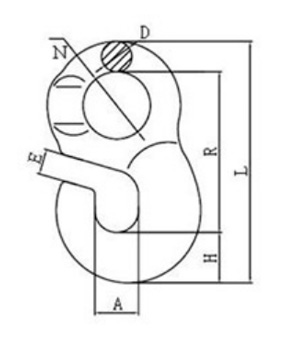

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A±0.5 | N±1 | D±1 | H±1 | R±1.5 | E±0.3 | L±2 |
8CROFGGH3.15T | 0.51 | 3.15 | 12.6 | 20 | 32 | 14 | 22 | 76.5 | 12 | 113 |
8CROFGGH5.3T | 1.3 | 5.3 | 21.2 | 26 | 40 | 18 | 29 | 95.5 | 15 | 143.5 |
8CROFGGH8T | 1.9 | 8.0 | 32 | 32 | 50 | 22 | 35.5 | 117 | 18.4 | 176 |
8CROFGGH12.5T | 3.65 | 12.5 | 50 | 38 | 60 | 26 | 43 | 141 | 22 | 216.5 |
