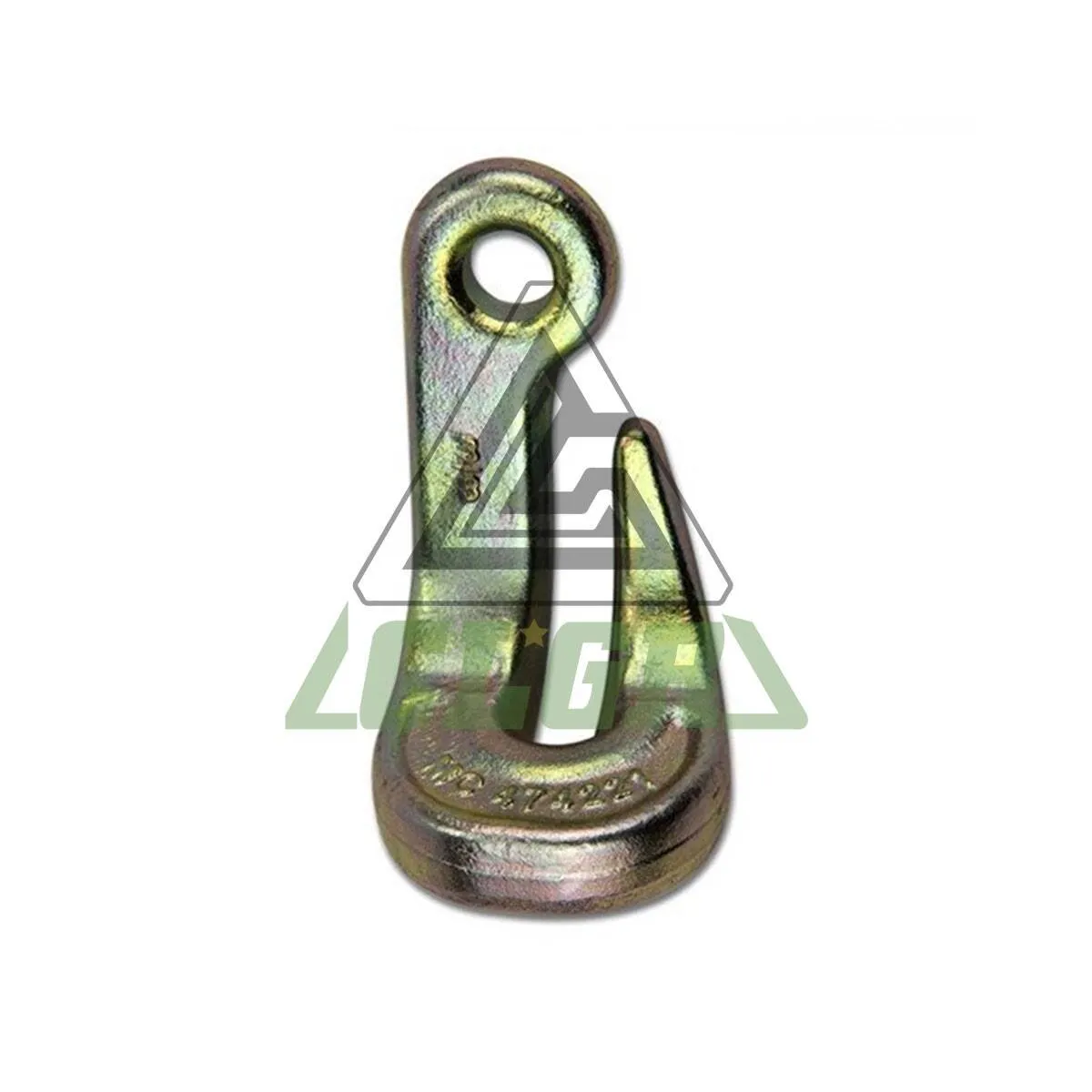

CLGR® Forged Alloy Eye Bend Hook Type A

Name: CLGR® Forged Alloy Eye Bend Hook Type A
Brand: CLGR®

CLGR® Forged Alloy Eye Bend Hook, Type A also known as Alloy steel eye bend hook.

Meet international quality standards, this heavy-duty eye bend hook is drop forged from superior alloy steel and undergoes quenching and tempering heat treatment, delivering exceptional strength and a 4:1 safety factor for maximum reliability in demanding lifting and rigging applications.

Engineered for superior load security, this Alloy Eye Bend Hook features zinc plated or powder coating finishes for enhanced corrosion protection in harsh industrial environments. Its robust eye bend design ensures secure connections with chains, slings, and other rigging hardware

Available in three sizes with 5/16'', 3/8'', 1/2'' Eye bend hook.

Ideal for construction, marine, industrial lifting, and heavy-duty rigging scenarios where safety and performance are critical.

Secure packaging ensures safe delivery, with custom options available to meet specific project requirements.

To Get A Quote >

clgr forged alloy eye bend hook type a china manufacturer supplier factory

Overview of Forged Alloy Eye Bend Hook Type A

Brand	CLGR®
Origin	China
Material	Alloy Steel
Processing	Forged Quenched & Tempered.
Finish	Zinc Plated or Powder Coating.
Safety Factor	4:1
Size	5/16”, 3/8”, 1/2” Eye bend hook

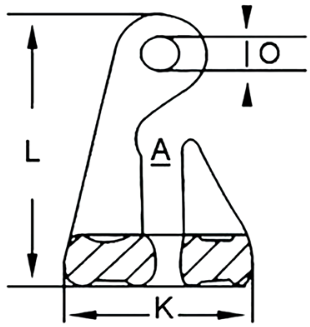

Specifications of Forged Alloy Eye Bend Hook Type A

drawing-clgr-of-forged-alloy-eye-bend-hook-type-a-china-supplier

CODE NO.	SIZE	DIMENSIONS				MBS	U.W.
CODE NO.	SIZE	A	K	L	O	KGS	KGS
CREBH101	5/16”	5/16”	2.24	3.07	0.51	10000	0.81
CREBH102	3/8”	3/8”	2.71	3.97	0.67	13000	1.76
CREBH103	1/2”	1/2”	3.26	4.4	0.82	27000	2.97

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
