Grade 100 Master Link Assembly is also known as G100 Master Links with Sublinks, Oblong Master Link Sub-Assembly, Grade 100 Quad Master Link Assembly, Master Ring With Sub Ring and Welded Master Link Assembly.
The Master Link Assembly are primarily used for rigging assembly. The master-sub link assembly connects chain connectors and chain links to form composite sling systems, designed for lifting heavy loads and equipment.

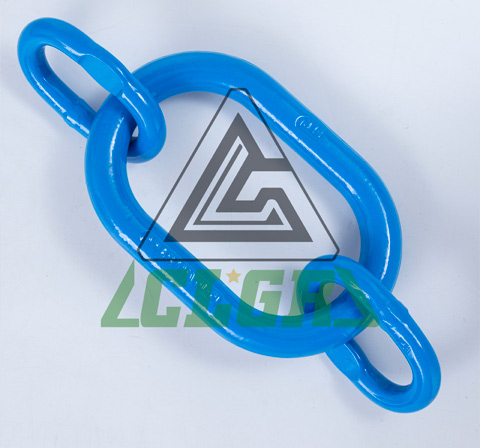

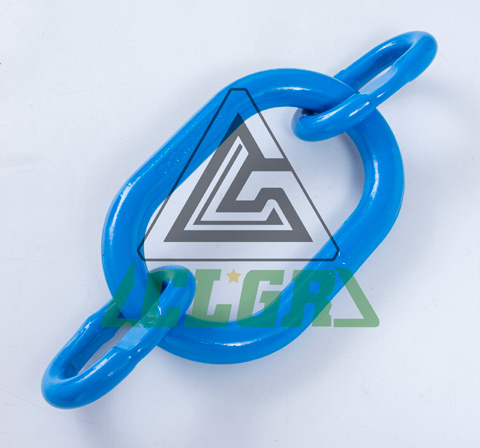

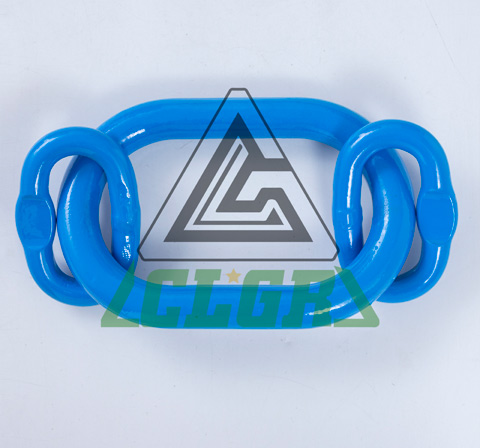

This assembly features a fully forged master ring integrated with two or more welded sub-rings, constructed from high-grade alloy steel. It maintains a safety factor of 4:1 to ensure reliable performance under heavy loads.
Brand | CLGR® |
Size | 19-13mm, 23-16.5mm, 27-19mm, 33-23mm, 36-27mm, 50-33mm, 50-36mm |
Material | Super Alloy Steel |
Standard | European Type (EN1677-4) |
Safety Factor | 4: 1 |
Processing | Body: Drop Forged Sub-Assembly: Welded Quenched and Tempered Pressing flat only on request |
Surface Finish | Powder Coated |
Note | Color code can be made according to customers' requirements. |

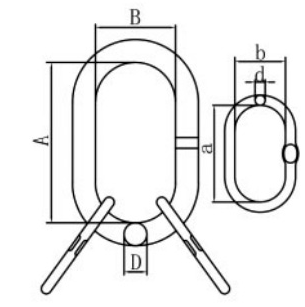

| Part No. | G100 Chain Diameter (MM) | Weight (kg) | WLL(t) | Dimension (mm) | |||||
| For 3/4 Leg Sling | A | B | D | a | b | d | |||
| 10CRMLAEU06 | 6MM | 1.3 | 3 | 135 | 75 | 19 | 84 | 25 | 13 |
| 10CRMLAEU08 | 8MM | 2.33 | 5.3 | 160 | 90 | 23 | 70 | 35 | 16.5 |
| 10CRMLAEU10 | 10MM | 3.7 | 8 | 180 | 100 | 27 | 85 | 40 | 19 |
| 10CRMLAEU13 | 13MM | 6.5 | 14 | 200 | 110 | 33 | 115 | 50 | 23 |
| 10CRMLAEU16 | 16MM | 10.1 | 21.2 | 260 | 140 | 36 | 140 | 65 | 27 |
| 10CRMLAEU20 | 19/20MM | 22.8 | 33.6 | 350 | 190 | 50 | 150 | 70 | 33 |
| 10CRMLAEU22 | 22MM | 26 | 33.9 | 350 | 190 | 50 | 180 | 100 | 36 |
Ultimate load is 4 times the Working Load Limit.
There will be pressing flat only on request for use with G100 Omega Link.
