CLGR® Stainless Steel Oval Rings High Tensile, also known as Master Link Stainless Steel Type 304 or 316, 304/316 Stainless Steel Oblong Master Links and Stainless Steel Master Rings.
Stainless steel master links are essential in fisheries for connecting nets, securing floats/sinkers, and rigging aquaculture cages, particularly in saltwater operations like trawling and marine farming.
Grade 316 is preferred for long-term seawater exposure due to superior molybdenum-enhanced corrosion resistance, while 304 suits short-term or low-corrosion applications. Welded, electropolished, and proof-tested, it's the optimal choice for harsh environments and elevated temperatures.
Brand | CLGR® |
Size | 12mm, 16mm, 19mm, 22mm, 25mm, 25mm, 28mm, 30mm, 30mm, 32mm, 35mm, 38mm |
WLL | 1T, 1.7T, 3.2T, 4.6T, 5.8T, 4T, 7.3T, 10T, 7.5T, 12.7T, 13.5T, 15T stainless steel oval welded master link |
Safety Factor | 5:1 |
Material | Stainless Steel (AISI 304 / AISI 316) |
Processing | Welded |
Surface Finish | Highly Polishing |
Note | SS Rings not for lifting. |

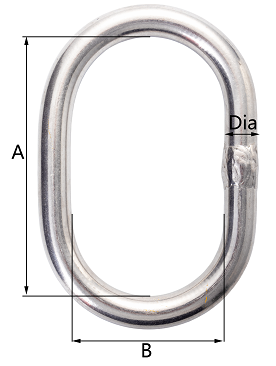

Part No. | Dia. (mm) | WLL 5:1 (ton) | A (mm) | B (mm) | Weight (kg) |
CRSSMLW1.0 | 12 | 1 | 70 | 30 | 0.2 |
CRSSMLW1.7 | 16 | 1.7 | 85 | 35 | 0.4 |
CRSSMLW3.2 | 19 | 3.2 | 110 | 45 | 0.7 |
CRSSMLW4.6 | 22 | 4.6 | 120 | 50 | 1.1 |
CRSSMLW5.8 | 25 | 5.8 | 130 | 50 | 1.5 |
CRSSMLW4.0 | 25 | 4 | 150 | 80 | 2.5 |
CRSSMLW7.3 | 28 | 7.3 | 150 | 60 | 2.1 |
CRSSMLW10 | 30 | 10 | 150 | 60 | 2.5 |
CRSSMLW7.5 | 30 | 7.5 | 150 | 80 | 2.76 |
CRSSMLW12.7 | 32 | 12.7 | 150 | 60 | 2.8 |
CRSSMLW13.5 | 35 | 13.5 | 160 | 75 | 3.2 |
CRSSMLW15 | 38 | 15 | 150 | 60 | 4.2 |
We can supply rings mounted with thimbles, G-hooks, swivels etc.
