CLGR® Stainless Steel Long Quick Link, also known as Stainless Steel Quick Repair Link, Long Quick Chain Repair Link, Chain Connector/Connecting Link and Oval Quick Link.
These are longer versions of the standard Quick Links, they are steel screw-links designed for general purpose connecting of two chains or chain to components.
The Long Quick Links are available in a variety of sizes, including 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm to ensure a perfect fit for every project. This link is made from grade 304/316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.
Stainless Steel Long Quick Links provide a fast, easy, and durable connection between 2 lengths of chain or chain and other fittings such as eye bolts, turnbuckles, and hooks.
Brand | CLGR® |
Size | 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
Material | Stainless Steel (AISI 304 / AISI 316) |
Processing | Stamping |
Surface Finish | Highly Polishing |

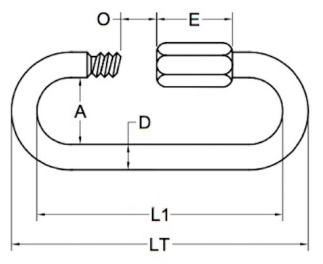

Part No. | Size | A (mm) | D (mm) | E (mm) | L1 (mm) | LT (mm) | O (mm) | Break Load (Kgs) |
CRSSQLL3.5 | 3.5mm | 8.5 | 3.5 | 15 | 40 | 47 | 8.5 | 360 |
CRSSQLL4 | 4mm | 11.5 | 4 | 18 | 45 | 53 | 11 | 500 |
CRSSQLL5 | 5mm | 13 | 5 | 20 | 46 | 56 | 10 | 790 |
CRSSQLL6 | 6mm | 14 | 6 | 25 | 58 | 70 | 14 | 1130 |
CRSSQLL8 | 8mm | 17 | 8 | 25 | 72 | 88 | 17 | 2000 |
CRSSQLL10 | 10mm | 20 | 10 | 36 | 85 | 105 | 20 | 3100 |
CRSSQLL12 | 12mm | 23 | 12 | 43 | 100 | 124 | 23 | 4500 |
