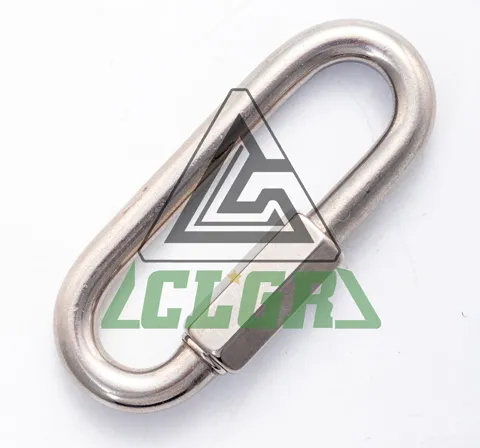

CLGR® Galvanized Quick Link Standard/Short Type, also known as Quick Repair Link, Chain Repair Link, Chain Connecting Link and Oval Quick Link.
It was made of superior mild steel with an Electric galvanized finish. Quick links are developed for permanent or semipermanent connections. Providing any connection as a machinery part when fitted with chain, webbing, or wire rope, while being also used as connector on PPE.
The Standard Oval Quick Links provide a fast, easy, and durable connection between 2 lengths of chain or chain and other fittings such as eye bolts, turnbuckles, and hooks.
Brand | CLGR® |
Material | Superior Mild Steel |
Size | 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
Safety Factor | 2.5:1 |
Processing | Stamping |
Surface Finish | Zinc Plated (Electric Galvanized) |
Part No. | Size | A | B | C | D | L | L1 | E | W.L.L | N.W. |
mm | lbs | kgs/100pcs | ||||||||
CRGQLS3.5 | 3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 175 | 0.8 |
CRGQLS4 | 4 | 19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 500 | 1.2 |
CRGQLS5 | 5 | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 650 | 2.1 |
CRGQLS6 | 6 | 26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 875 | 3.5 |
LGGQLS7 | 7 | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 1200 | 5.45 |
CRGQLS8 | 8 | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 1525 | 7.5 |
CRGQLS9 | 9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 1975 | 10.5 |
CRGGQLS10 | 10 | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 2300 | 13.5 |
CRGQLS12 | 12 | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 2500 | 22.8 |
CRGQLS14 | 14 | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 2800 | 35 |
CRGQLS16 | 16 | 61.5 | 29.5 | 19 | 16 | 140 | 108 | 45 | 3500 | 50 |
