CLGR® CB711-95 Marine Boat Spek Anchor Supplier, China Anchor Manufacturer

Name: CLGR® CB711-95 Marine Boat Spek Anchor Supplier, China Anchor Manufacturer
Brand: CLGR®

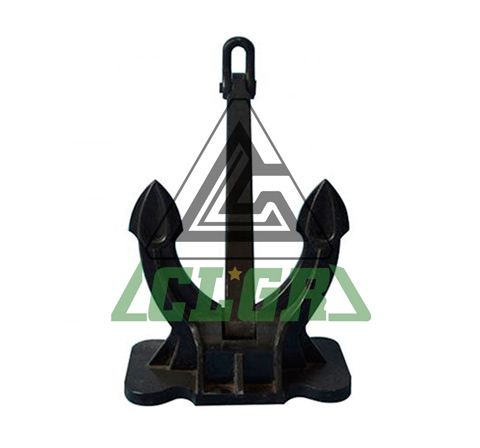

The Spek anchor is a modern stockless anchor designed as an enhanced version of the Hall anchor, featuring a lower center of gravity. Its key structural improvement lies in the centralized positioning of the anchor head's core along the pin centerline, extending downward to the base.

Distinctive design elements include an anchor crown plate and reinforced ribs at the crown, ensuring robust construction. The flukes are engineered to pivot effortlessly upon seabed contact, enhancing stability and holding performance.

Additionally, the Spek anchor is shaped to fit seamlessly into anchor pockets, with its flukes naturally oriented upward. Upon deployment, the flukes swiftly rotate away from the hull plate upon impact, preventing damage to the vessel's shell plating.

In recent years, the Spek anchor has gained widespread adoption as a preferred stockless anchor for newly constructed vessels.

It is available in a broad range of sizes, from 100 kg to 26,000 kg, catering to diverse maritime applications.

To Get A Quote >

CLGR® CB711-95 Marine Boat Spek Anchor Supplier, China Anchor Manufacturer

Overview of CLGR® CB711-95 Marine Boat Spek Anchor

Brand	CLGR®
Material	Casting Steel
Weight	100kg-26,000kg
Categories	Anchor, Marine Equipment
Finish	Blacking Bitumen Painting, Hot Dip Galvanized
Application	Used for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.

Specifications of CLGR® CB711-95 Marine Boat Spek Anchor

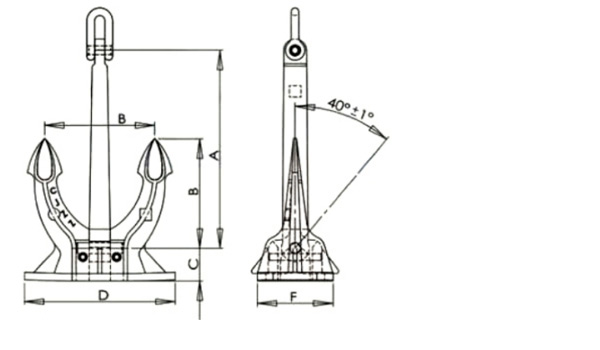

Part No.	NOMINAL WEIGHT (KG)）	SIZE（mm）
Part No.	NOMINAL WEIGHT (KG)）	A	B	C	D	F
CRSA100	100	672	373	112	515	290
CRSA150	150	710	428	128	590	290
CRSA180	180	846	470	140	640	300
CRSA240	240	900	500	150	690	358
CRSA300	300	960	550	166	760	399
CRSA360	360	1065	600	180	828	411
CRSA420	420	1090	600	180	828	431
CRSA500	500	1170	630	196	900	450
CRSA570	570	1170	630	196	900	475
CRSA660	660	1260	700	210	960	486
CRSA780	780	1355	750	225	1032	519
CRSA900	900	1440	800	240	1100	547
CRSA1020	1020	1530	850	252	1170	573
CRSA1140	1140	1630	900	268	1240	591
CRSA1290	1290	1710	900	268	1340	620
CRSA1440	1440	1710	950	279	1300	640
CRSA1590	1590	1710	950	279	1300	671
CRSA1740	1740	1800	1000	300	1378	689
CRSA1920	1920	1850	1050	312	1454	704
CRSA2100	2100	1890	1050	312	1454	717
CRSA2280	2280	2010	1050	312	1654	736
CRSA2460	2460	2010	1100	324	1514	764
CRSA2640	2640	2070	1150	332	1584	794
CRSA2850	2850	2070	1150	352	1584	804
CRSA3060	3060	2160	1200	360	1650	820
CRSA3300	3300	2155	1200	360	1650	834
CRSA3540	3540	2330	1200	360	1650	834
CRSA3780	3780	2430	1350	393	1850	880
CRSA4050	4050	2430	1350	393	1850	917
CRSA4320	4320	2520	1400	413	1926	917
CRSA4500	4500	2520	1400	413	1926	951
CRSA4890	4890	2520	1400	413	1926	954
CRSA5250	5250	2610	1450	414	2000	964
CRSA5610	5610	2610	1450	414	2000	991
CRSA6000	6000	2700	1500	446	2060	1006
CRSA6450	6450	2700	1500	446	2060	1028
CRSA6900	6900	2790	1550	456	2138	1024
CRSA7350	7350	2790	1550	456	2138	1062
CRSA7800	7800	2920	1550	456	2138	1091
CRSA8300	8300	3060	1700	510	2332	1126
CRSA8700	8700	3060	1700	510	2332	1156
CRSA9000	9000	3060	1700	510	2332	1169
CRSA9900	9900	3190	1700	510	2332	1188
CRSA10500	10500	3190	1700	531	2440	1188
CRSA11100	11100	3290	1770	531	2440	1212
CRSA11700	11700	3390	1770	531	2440	1237
CRSA12300	12300	3440	1910	573	2632	1279
CRSA12900	12900	3440	1910	573	2632	1279
CRSA13500	13500	3440	1910	573	2632	1316
CRSA14100	14100	3440	1910	573	2632	1353
CRSA14700	14700	3690	2050	615	2824	1369
CRSA15400	15400	3690	2050	615	2824	1399
CRSA16100	16100	3690	2050	615	2824	1387
CRSA16900	16900	3820	2120	636	2922	1413
CRSA17800	17800	3950	2120	636	2922	1431
CRSA18800	18800	3950	2190	657	3018	1461
CRSA20000	20000	4070	2190	657	3018	1493
CRSA26000	26000	4250	2360	716	3256	1618
