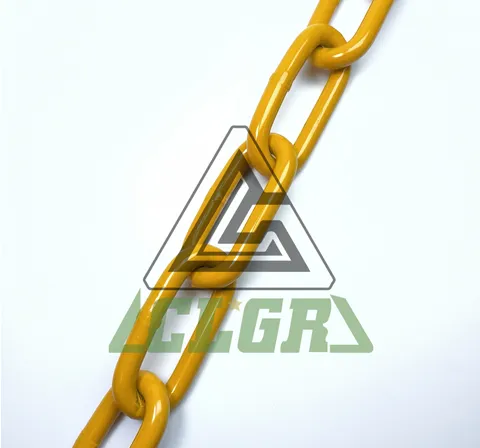

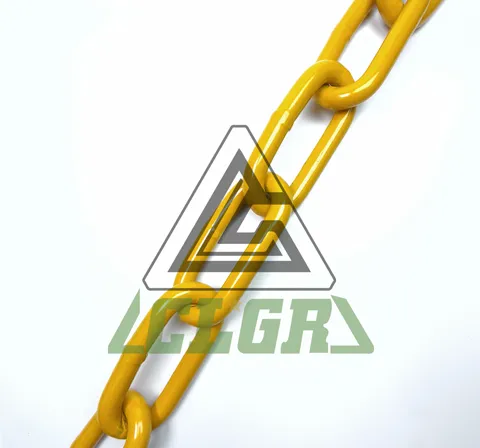

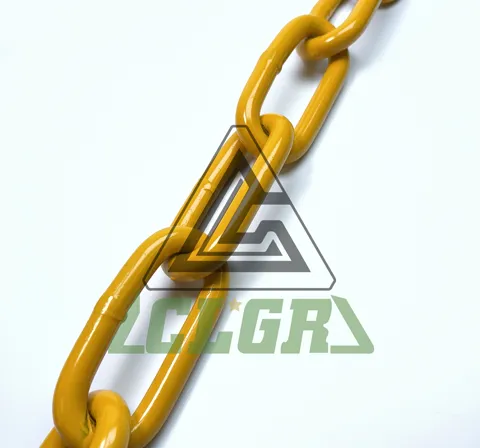

CLGR® G80 Fishing Chain Alloy Steel Long/Mid/Short Link

Name: CLGR® G80 Fishing Chain Alloy Steel Long/Mid/Short Link
Brand: CLGR®

CLGR® G80 Fishing Chain Alloy Steel Long/Mid/Short Link combines G80 mechanical values with lightweight construction and longer links, crafted from superior alloy steel treated to minimize hydrogen embrittlement risk.

Ideal for Fishing Trawlers due to its design and weight, G80 Fishing Chain Alloy Steel Long/Mid/Short Link from CLGR®, one of the link chain manufacturers, is unsuitable for lifting applications but suitable for container lashing as G80 marine chains.

G80 Fishing Chain Alloy Steel Long/Mid/Short Link provided by CLGR® is 100% proof-loaded with every link tested, and is easily assembled using connecting links or shackles, with a pitch designed to accommodate quick links and fittings between adjacent chain-links.

To Get A Quote >

1 CLGR® G80 Fishing Chain Alloy Steel LongMidShort Link

 

Overview of CLGR® G80 Fishing Chain Alloy Steel Long/Mid/Short Link

Brand	CLGR®
Size	Short link chain: 721mm, 1030mm, 1339mm, 1648mm, 1957mm, 2060mm Mid link chain: 1040mm, 1352mm, 1450mm, 1664mm, 1976mm, 2288mm, 2692mm Long link chain: 745mm, 953mm, 1163mm, 1380mm, 16100mm, 19100mm, 22120mm, 28*150mm
Material	Superior Alloy Steel
Safety Factor	4:1
Processing	Welded
Surface Finish	Self colored, Painted (Yellow or Black)
Note	NOT FOR OVERLOAD LIFTING

Specifications of CLGR® G80 Fishing Chain Alloy Steel Long/Mid/Short Link

Part No.	Kinds of Chain	Size (MM)	Chain Diameter (MM)	Width (MM)		Weight Kg/m	Breaking Load min KN
Part No.	Kinds of Chain	Size (MM)	Chain Diameter (MM)	Inside min	Outside max	Weight Kg/m	Breaking Load min KN
8CRFCSL7×21	Short Link Fishing Chain	7*21	7.00	10	25.5	1.09	60.5
8CRFCSL10×30		10*30	10.00	14	36	2.2	126
8CRFCSL13×39		13*39	13.00	18.1	47.1	3.8	212
8CRFCSL16×48		16*48	16.00	22.4	57.4	5.63	320
8CRFCSL19×57		19*57	19.00	27.8	68.8	7.99	450
8CRFCSL20×60		20*60	20.00	29	72	8.85	510
8CRFCML10×40	Mid Link Fishing Chain	10*40	10.00	15	37	1.97	126
8CRFCML13×52		13*52	13.00	19.5	48.5	3.36	212
8CRFCML14×50		14*50	14.00	18.5	49.5	4.00	246
8CRFCML16×64		16*64	16.00	24	59	5.06	320
8CRFCML19×76		19*76	19.00	28.5	69.5	7.15	450
8CRFCML22×86		22*88	22.00	27	74	9.45	610
8CRFCML26×92		26*92	26.00	31	86	13.63	849
8CRFCLL7×45	Long Link Fishing Chain	7*45	7.00	10	25.5	0.83	60.5
8CRFCLL9×53		9*53	9.00	15	35	1.45	102
8CRFCLL11×63		11*63	11.00	18	43	2.16	151
8CRFCLL13×80		13*80	13.00	22	51	2.93	212
8CRFCLL16×100		16*100	16.00	26	61	4.42	320
8CRFCLL19×100		19*100	19.00	27	68	6.45	450
8CRFCLL22×120		22*120	22.00	32	84	8.74	610
8CRFCLL25x127		25*127	26.00	35	96	12	787
8CRFCLL28×150		28*150	28.00	44	103	14.3	984
8CRFCLL32x170		32*170	34.00	42	118	21	1286
