CLGR® DIN 5683 Long Link Chains

Name: CLGR® DIN 5683 Long Link Chains
Brand: CLGR®

CLGR® DIN 5683 Long Link Chain, also named DIN5683 round link chain.

DIN 5683 Long Link Chain is a welded steel chain engineered for general-purpose applications across engineering, industrial, agricultural, and marine sectors when paired with compatible accessories.

As products engineered by leading link chain manufacturers, the chain links for sale are manufactured to international standards and features elongated links that provide flexibility and durability in dynamic environments.

CLGR® DIN 5683 Long Link Chain is particularly well-suited for farming equipment and marine mooring applications, where its robust construction and corrosion-resistant finishes (e.g., hot-dip galvanized or electro-galvanized options) ensure reliable performance under demanding conditions.

To Get A Quote >

Overview of CLGR® DIN 5683 Long Link Chain

Brand	CLGR®
Size	13mm, 16mm, 18mm, 20mm, 23mm, 26mm, 30mm, 33mm, 36mm, 39mm
Material	Superior Alloy Steel
Standard	DIN 5683 Long Link Chain
Processing	Welded
Surface Finish	Zinc Plated/Self-color/Hot Dipped Galvanized
Note	NOT FOR OVERLOAD LIFTING

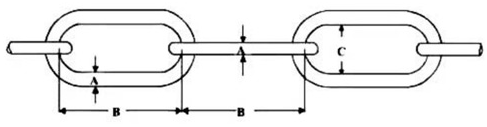

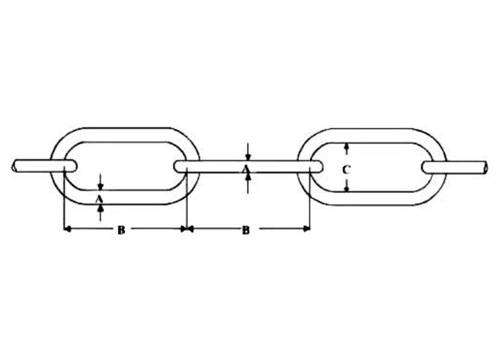

Specifications of CLGR® DIN 5683 Long Link Chain

Part No.	Size(mm)			Pitch		Width		PL KN	BL KN	Weight (KG)
	Size(mm)			Pitch		Width		PL KN	BL KN
	A		Tol	B	Tol	C	Tol	Proof Load	Break Load
CR5683C13	13	4/8	±0.7	36	±4	18	±2	110	210	3.9
CR5683C16	16	5/8	±0.8	144	±4	56	±3	32	160	4.4
CR5683C18	18	1" 1/16	±0.9	162	±4	63	±3	40	200	5.6
CR5683C20	20	1" 3/16	±1	180	±5	70	±3	50	250	6.9
CR5683C23	23	1" 5/16	±1.2	207	±5	81	±4	63	320	9.1
CR5683C26	26	1"	±1.3	234	±6	91	±4	80	400	12
CR5683C30	30	1" 3/16	±1.5	270	±7	105	±5	110	560	15
CR5683C33	33	1" 5/16	±1.7	297	±7	116	±5	130	670	19
CR5683C36	36	1" 7/16	±1.8	324	±8	126	±6	160	800	22
CR5683C39	39	1" 9/16	±2	351	±9	137	±6	190	950	26

Operating forces cannot be specified exactly in accordance with DIN 5683. In practice, the operating force values in the table are assumed.
