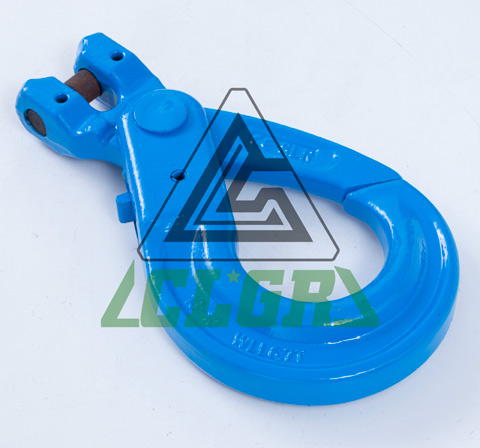

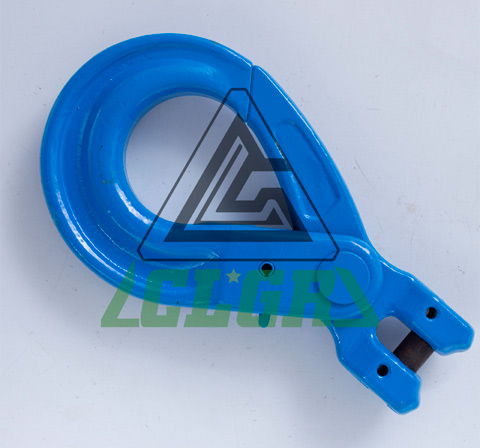

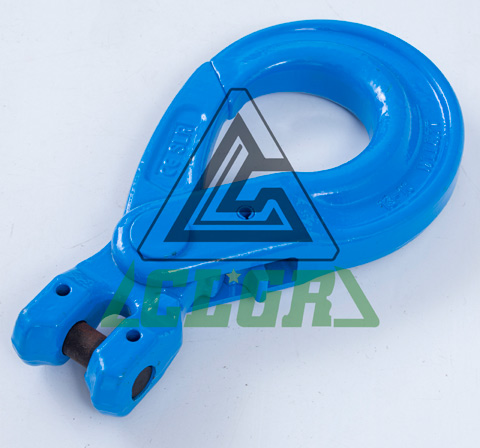

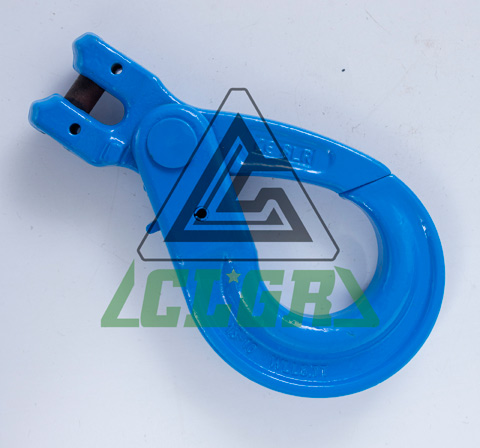

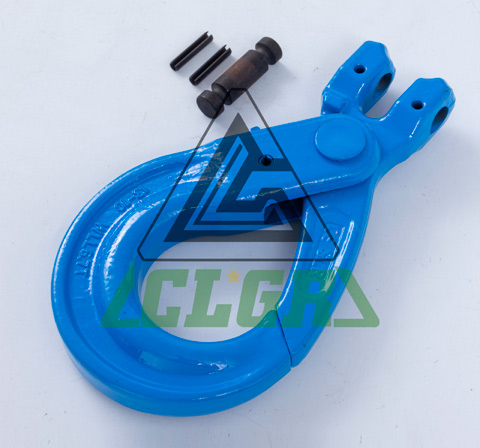

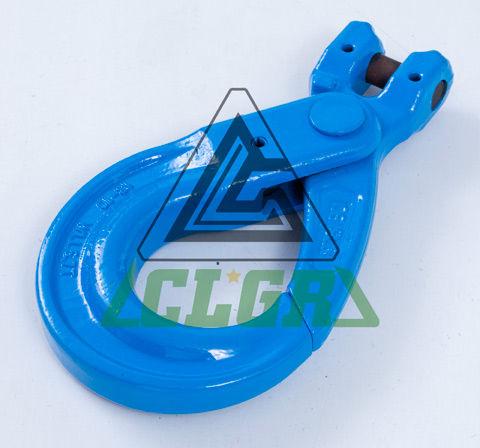

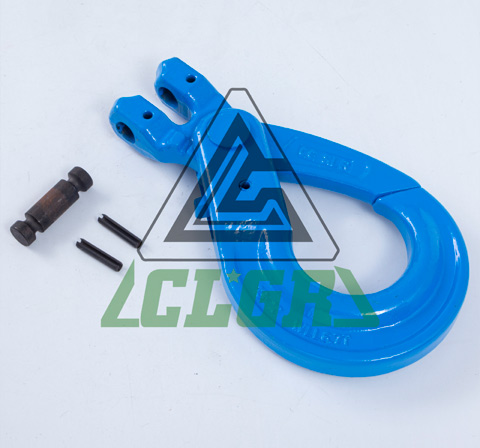

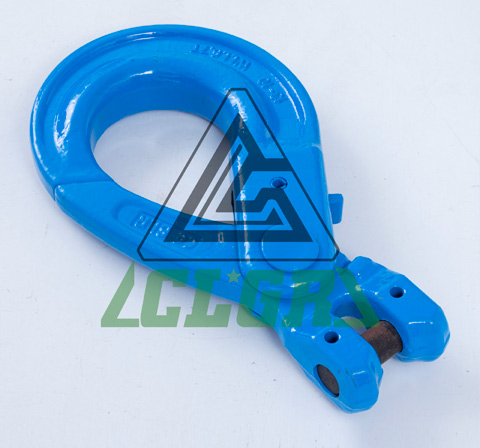

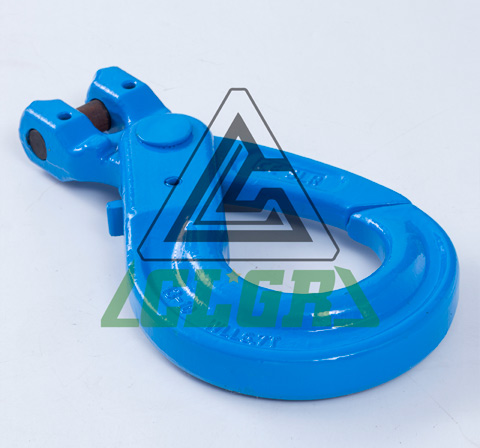

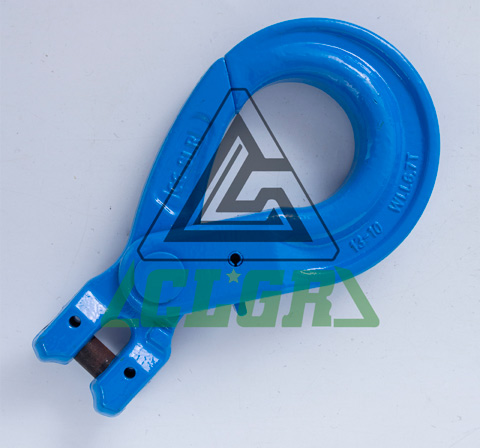

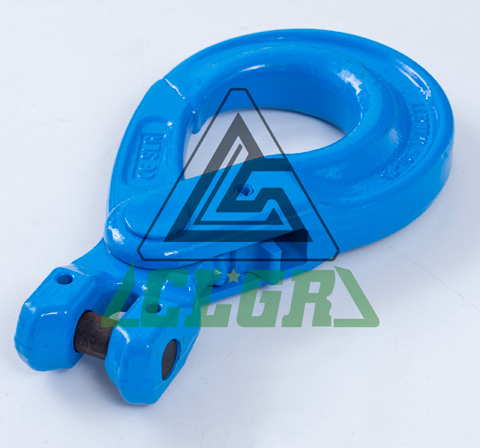

CLGR® G100 Clevis Safety Hook BKG is also known as Grade 100 Clevis Self-Locking Hook and G100 Self-Closing Clevis Hook.
G100 Clevis Safety Hook BKG is made from high-tensile alloy steel, delivering exceptional strength to weight ratios. The Clevis Self-Locking Hook is matched with the G100 chain for lifting, and it can prevent accidental detachment, significantly improving the safety of high-altitude, dynamic, or high-risk operations.
Heavy-duty hook features a durable self-closing latch, meaning the latch engages as soon as a load is applied.
Brand | CLGR® |
Size | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm |
Material | Super Alloy Steel |
Standard | European type |
Safety Factor | 4: 1 |
Processing | Forged / Heat Treatment |
Finish | Powder Coating |
Tips | Color Code: Customized according to customers' requirements |
Impartant Note | Use Only Grade 100 Attachments For Overhead Lifting |

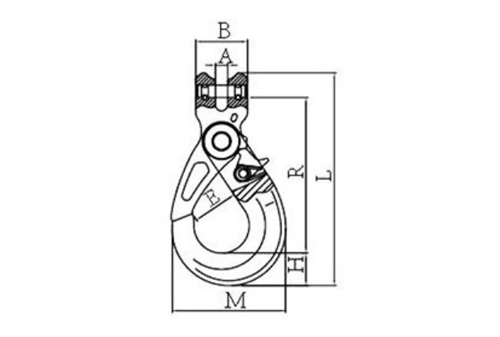

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A±0.5 | B±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
10CRCSH06 | 0.5 | 1.4 | 5.6 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 |
10CRCSH08 | 0.9 | 2.5 | 10 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 |
10CRCSH10 | 1.6 | 4 | 16 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 |
10CRCSH13 | 2.9 | 6.7 | 26.8 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 |
10CRCSH16 | 5.8 | 10 | 40 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 |
10CRCSH20 | 8.6 | 16 | 64 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 |
10CRCSH22 | 12.1 | 19 | 76 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 |
