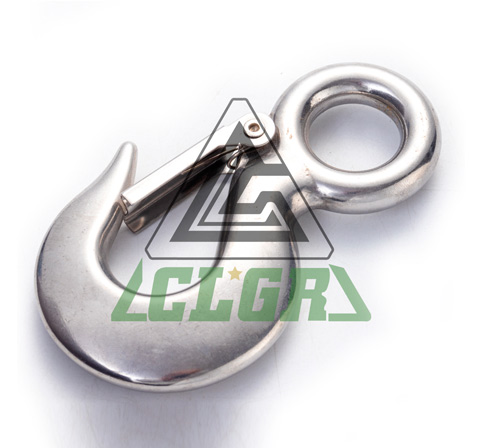

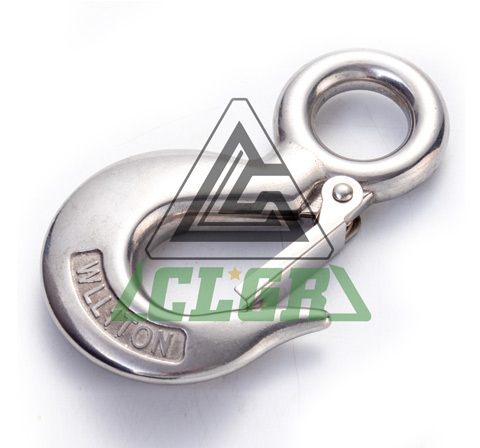

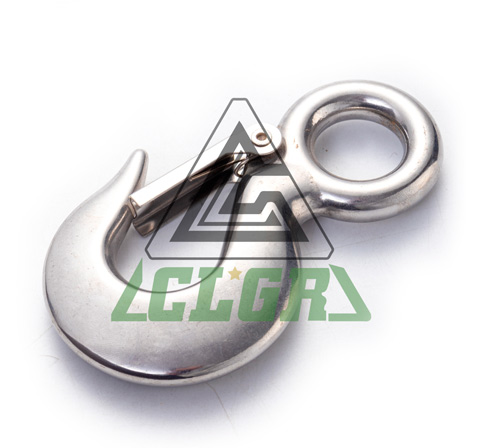

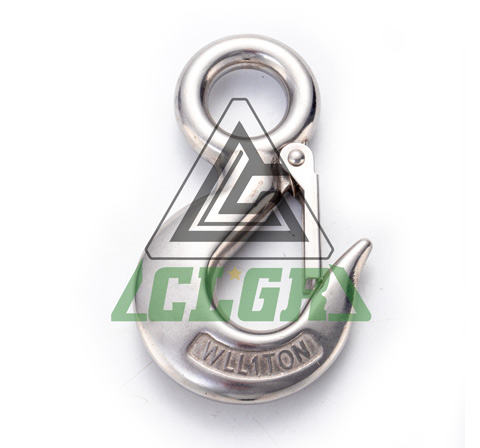

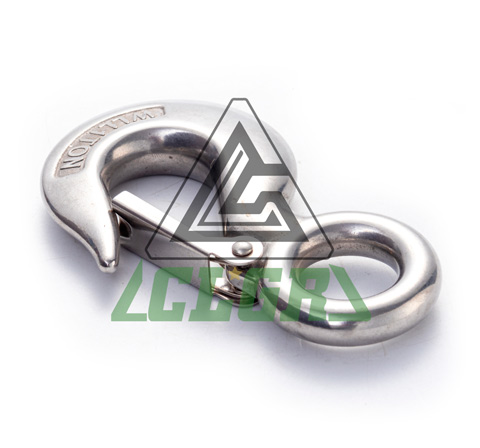

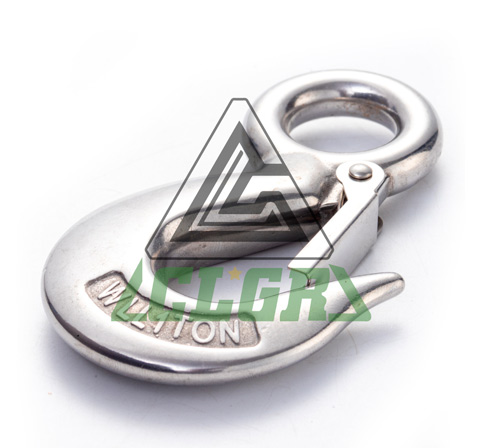

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320

Name: CLGR® Stainless Steel Eye Hoist Hook with Latch S-320
Brand: CLGR®

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320, also called Eye cargo snap hook, Stainless Steel Eye Sling Hook with latch, Stainless Steel Utility Eye Hook and eye slip hook with latch stainless steel.

It offers a durable and secure attachment point for boats, docks, and trailers, made from high-quality 316 Marine Grade stainless steel or grade 304, it ensures exceptional strength and corrosion resistance, perfect for marine environments. Versatile design suitable for various applications on boats, docks, or trailers.

The eye hoist crane hook can be effortlessly attached to shackles, lifting eyes, or loads secured with chains. The spring loaded safety latch prevents chain or sling slippage or detachment whilst in use.

Available for 1/2ton, 3/4ton, 1 ton, 1.5ton, 2ton, 3 ton.

To Get A Quote >

29 CLGR® Stainless Steel Eye Hoist Hook with Latch S 320

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Supplier

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Suppliers

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Wholesale Suppliers

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Wholesale Manufacturers

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Factory

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Exporter

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 China

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 in China

CLGR® Stainless Steel Eye Hoist Hook with Latch S-320 Manufacturer

 

Overview of CLGR® Stainless Steel Eye Hoist Hook with Latch S-320

Brand	CLGR®
Size	1/2ton, 3/4ton, 1ton, 1.5ton, 2ton, 3ton
Material	Stainless Steel AISI 304/316
Processing	Casting / Latch Stamping
Surface Finish	Highly Polishing

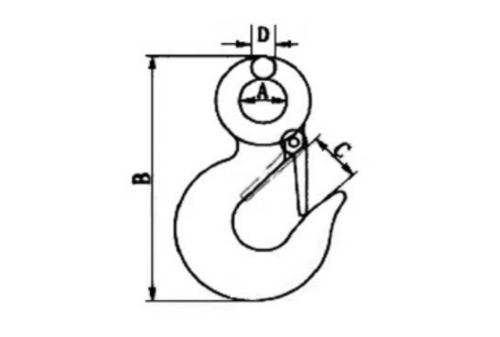

Specifications of CLGR® Stainless Steel Eye Hoist Hook with Latch S-320

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	Weight (kg)	WLL (ton)
CRSSH3201/2	16.5	92.7	15.3	8	0.159	1/2
CRSSH3203/4	18.3	109.5	18.3	10	0.253	3/4
CRSSH3201	22.6	118	20.7	11	0.34	1
CRSSH3201.5	28	138.3	24.3	12	0.476	1.5
CRSSH3202	32.4	165	25.6	15.5	0.848	2
CRSSH3203	38.2	199	31.5	18	1.156	3

*Break loads and WLL specifications are only valid for correct axial single-line suspension without spreading.
