CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A

Name: CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A
Brand: CLGR®

CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A, also known as Stainless Steel Spring Snap Link with Eyelet.

As a professional snap hooks manufacturer, we provide the marine snap hook made of stainless steel AISI304/AISI316, compliant with the international quality standard DIN 5299, which offers durability for indoor or occasional outdoor use.

CLGR® Stainless Steel Spring Snap Link with Eyelet is a rust-resistant metal connector for securing ropes, chains, or equipment. The marine snap hook features a spring-loaded gate for easy opening/closing and an eyelet for fixed attachment to bolts or hooks, ideal for wet or outdoor environments.

Shop spring snaps in multiple styles/sizes. Marine snap hook pairs with marine rope, wire rope, swivels, eye bolts, chains, and shackles for tool organization, outdoor setups, or marine applications.

To Get A Quote >

26 CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A

 

Overview of CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A

Brand	CLGR®
Size	4x40mm, 5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm, 13x160mm, 14x180mm stainless steel carbine hook
Type	DIN 5299C
Material	Stainless Steel Carabiner Hook
Processing	Stamping / Machining
Finish	Highly Polishing / Electrophoretic coating
Tip	Not for overhead lifting

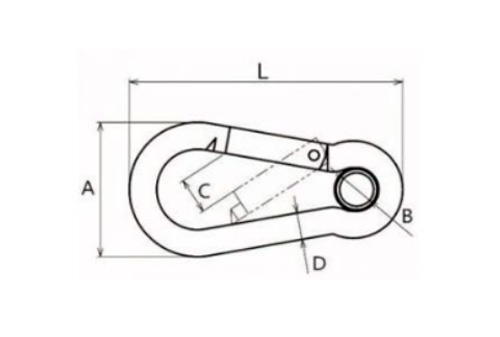

Specifications of CLGR® Stainless Steel Carabiner Snap Hook with Eyelet DIN 5299 Form A

Part No.	Size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	WLL (lbs)
CRSSSH5299E04	4×40	25	5	6	4	40	80
CRSSSH5299E05	5×50	30	6.5	7	5	50	100
CRSSSH5299E06	6×60	35	7.5	8	6	60	140
CRSSSH5299E07	7×70	40	9	8	7	70	200
CRSSSH5299E08	8×80	45	10	9	8	80	250
CRSSSH5299E09	9×90	50	11	10	9	90	280
CRSSSH5299E10	10×100	57	13	12	10	100	400
CRSSSH5299E11	11×120	67	15	16	11	120	500
CRSSSH5299E12	12×140	74	18	19	12	140	600
CRSSSH5299E13	13×160	86	20	25	13	160	700
CRSSSH5299E14	14×180	25	20	35	14	180	900

Notice: The load capacity specified in the table is intended to indicate the highest possible load capacity of the snap hooks.
