CLGR® 14SB Type HHP Ship Anchor - The China Manufacturer Supplier, Factory

Name: CLGR® 14SB Type HHP Ship Anchor - The China Manufacturer Supplier, Factory
Brand: CLGR®

The 14SB HHP Anchor, also called 14SB HHP Ship Anchor, stands out as a high holding power (HHP) solution, designed with an optimal weight-to-performance ratio.

Compared to conventional anchors, it offers a 25% weight reduction, which translates to less onboard weight and more storage space.

We provide both standard and fully balanced versions, assisting you in selecting the ideal SS-14SB anchor for your specific needs.

Renowned for its versatility, the 14SB anchor is suitable for merchant fleets, shipping, and the offshore industry.

As a "snug" stowing stockless marine bow anchor, it features a cast steel construction with a black or galvanized surface finish. This design ensures reliable performance while minimizing space requirements, making it a practical choice for vessels and offshore applications that demand high holding power.

To Get A Quote >

CLGR® 14SB Type HHP Ship Anchor - The China Manufacturer Supplier, Factory

Overview of CLGR® 14SB Type HHP Ship Anchor

Brand	CLGR®
Type	High Holding Power 14SB HHP Anchor
Material	Steel
Surface Finish	Black Bituminous Painting, Hot Dip Galvanized
Origin	China

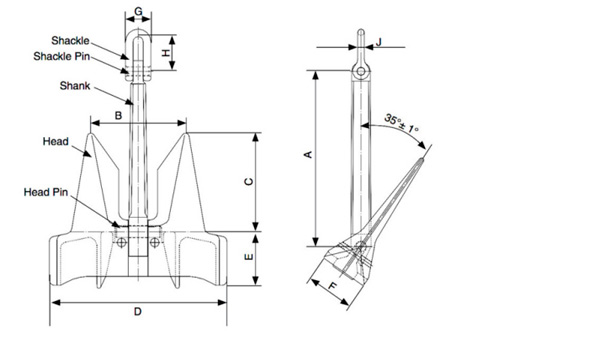

Specifications of CLGR® 14SB Type HHP Ship Anchor

Part No.	Nominal Weight (KG)	Dimensions (mm)
Part No.	Nominal Weight (KG)	A	B	C	D	E	F	G	J
CR14SB01	75	550	326	350	606	188	185	75	550
CR14SB02	100	607	380	385	704	207	200	100	607
CR14SB03	120	635	380	402	724	217	215	120	635
CR14SB04	180	742	442	470	802	254	252	180	742
CR14SB05	225	828	485	525	915	283	277	225	828
CR14SB06	250	828	495	525	915	283	298	250	828
CR14SB07	300	882	525	559	975	301	290	300	882
CR14SB08	340	918	548	582	1012	313	310	340	918
CR14SB09	360	918	548	582	1018	313	313	360	918
CR14SB10	430	990	590	628	1085	339	336	430	990
CR14SB11	495	1025	610	650	1135	350	348	495	1025
CR14SB12	585	1102	658	699	1220	376	375	585	1102
CR14SB13	675	1152	690	731	1278	394	390	675	1152
CR14SB14	765	1205	718	764	1335	411	420	765	1205
CR14SB15	855	1250	745	793	1385	427	408	855	1250
CR14SB16	970	1300	775	826	1445	444	440	970	1300
CR14SB17	1080	1330	805	857	1495	461	455	1080	1330
CR14SB18	1200	1400	835	885	1545	478	470	1200	1400
CR14SB19	1305	1440	858	913	1595	492	485	1305	1440
CR14SB20	1440	1484	885	943	1645	507	505	1440	1484
CR14SB21	1575	1554	915	972	1695	523	518	1575	1554
CR14SB22	1710	1615	940	998	1745	538	532	1710	1615
CR14SB23	1845	1716	965	1025	1785	552	546	1845	1716
CR14SB24	1980	1650	895	1048	1830	564	560	1980	1650
CR14SB25	2100	1686	1005	1070	1865	573	570	2100	1686
CR14SB26	2295	1738	1005	1102	1920	595	588	2295	1738
CR14SB27	2475	1780	1062	1128	1970	607	602	2475	1780
CR14SB28	2655	1820	1095	1155	2018	621	615	2655	1820
CR14SB29	2835	1862	1109	1180	2057	635	625	2835	1862
CR14SB30	3040	1896	1130	1204	2100	646	640	3040	1896
CR14SB31	3550	2030	1198	1287	2225	693	680	3550	2030
CR14SB32	3940	2080	1240	1318	2300	709	705	3940	2080
CR14SB33	4500	2170	1295	1370	2405	741	735	4500	2170
CR14SB34	4840	2225	1330	1416	2465	760	755	4840	2225
CR14SB35	5175	2275	1358	1443	2520	777	770	5175	2275
CR14SB36	5610	2339	1396	1483	2590	798	790	5610	2339
CR14SB37	6000	2390	1426	1515	2646	816	810	6000	2390
CR14SB38	6225	2420	1443	1534	2678	826	820	6225	2420
CR14SB39	6925	2450	1462	1554	2712	836	830	6925	2450
CR14SB40	6775	2507	1480	1589	2775	856	848	6775	2507
CR14SB41	7350	2610	1526	1622	2832	873	864	7350	2610
CR14SB42	7875	2650	1558	1655	2890	891	896	7875	2650
CR14SB43	8325	2665	1590	1689	2930	909	902	8325	2665
CR14SB44	8775	2707	1614	1715	2986	924	916	8775	2707
CR14SB45	9000	2765	1652	1754	3004	945	936	9000	2765
CR14SB46	9675	2850	1674	1776	3104	957	948	9675	2850
CR14SB47	10125	2880	1700	1807	3152	972	960	10125	2880
CR14SB48	10575	2880	1720	1827	3192	984	976	10575	2880
CR14SB49	11025	2930	1750	1859	3247	1001	990	11025	2930
CR14SB50	11700	2987	1782	1894	3308	1019	1010	11700	2987
CR14SB51	12075	3010	1800	1906	3334	1027	1020	12075	3010
CR14SB52	12675	3065	1812	1945	3384	1047	1038	12675	3065
CR14SB53	13350	3132	1870	1886	3470	1089	1060	13350	3132
CR14SB54	14100	3178	1894	2045	3530	1094	1090	14100	3178
CR14SB55	14700	3228	1926	2015	3570	1089	1076	14700	3228
CR14SB56	15400	3272	1954	2075	3626	1117	1108	15400	3272
CR14SB57	16100	3320	1980	2110	3680	1132	1123	16100	3320
CR14SB58	16700	3350	2000	2126	3720	1144	1144	16700	3350
CR14SB59	17250	3380	2016	2142	3740	1151	1162	17250	3380
CR14SB60	17500	3440	2050	2180	3806	1173	1144	17500	3440
CR14SB61	18800	3500	2088	2220	3875	1193	1185	18800	3500
CR14SB62	20000	3573	2132	2265	3950	1220	1210	20000	3573
CR14SB63	25000	3955	2360	2315	4396	1352	1295	25000	3955
CR14SB64	30000	4358	2588	2765	4663	1484	1380	30000	4358
