CLGR® Grade 80 Deep Throat Eye Grab Hook

Name: CLGR® Grade 80 Deep Throat Eye Grab Hook
Brand: CLGR®

CLGR® Grade 80 Deep Throat Eye Grab Hook, also known as grade 80 eye grab hook with saddle, is a type of G80/ Grade 80 chain hoist hook.

Drop forged from alloy steel, quenched and tempered, with a finished surface painted or galvanized, delivers critical load security with a 4:1 safety factor (ultimate load = 4 x WLL), the eye grab hooks are widely used in connecting chains, master links, or swivels in the lifting & hoisting industry.

Avaliable size in 6mm, 7/8mm, 10mm, 13mm, these eye grab hooks passed the fatigue test and break load test.

To Get A Quote >

Overview of CLGR® Grade 80 Deep Throat Eye Grab Hook

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	6mm, 7/8mm, 10mm, 13mm
Tips	Color Code: Customized according to customers' requirements
Note	Never exceed working load limit

Specifications of CLGR® Grade 80 Deep Throat Eye Grab Hook

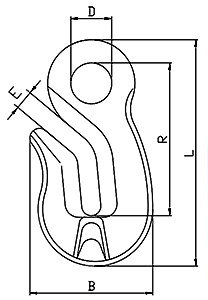

drawing-of-clgr-grade-80-deep-throat-eye-grab-hook-china-supplier

Part No.	WEIGHT (KG)	WLL (T)	B.L (T)	D±1 (mm)	E±0.3 (mm)	B±1.2 (mm)	R±1.5 (mm)	L±1.5 (mm)
8CREGHDT06	0.16	1.12	4.48	15	7	45	56	83
8CREGHDT7/8	0.35	2	8	16	9.6	52	74.3	106.5
8CREGHDT10	0.75	3.15	12.6	21	13	66	84.5	124.5
8CREGHDT13	1.5	5.3	21.2	26	16.5	96	114	170

*Ultimate load is 4 times the Working Load Limit.
