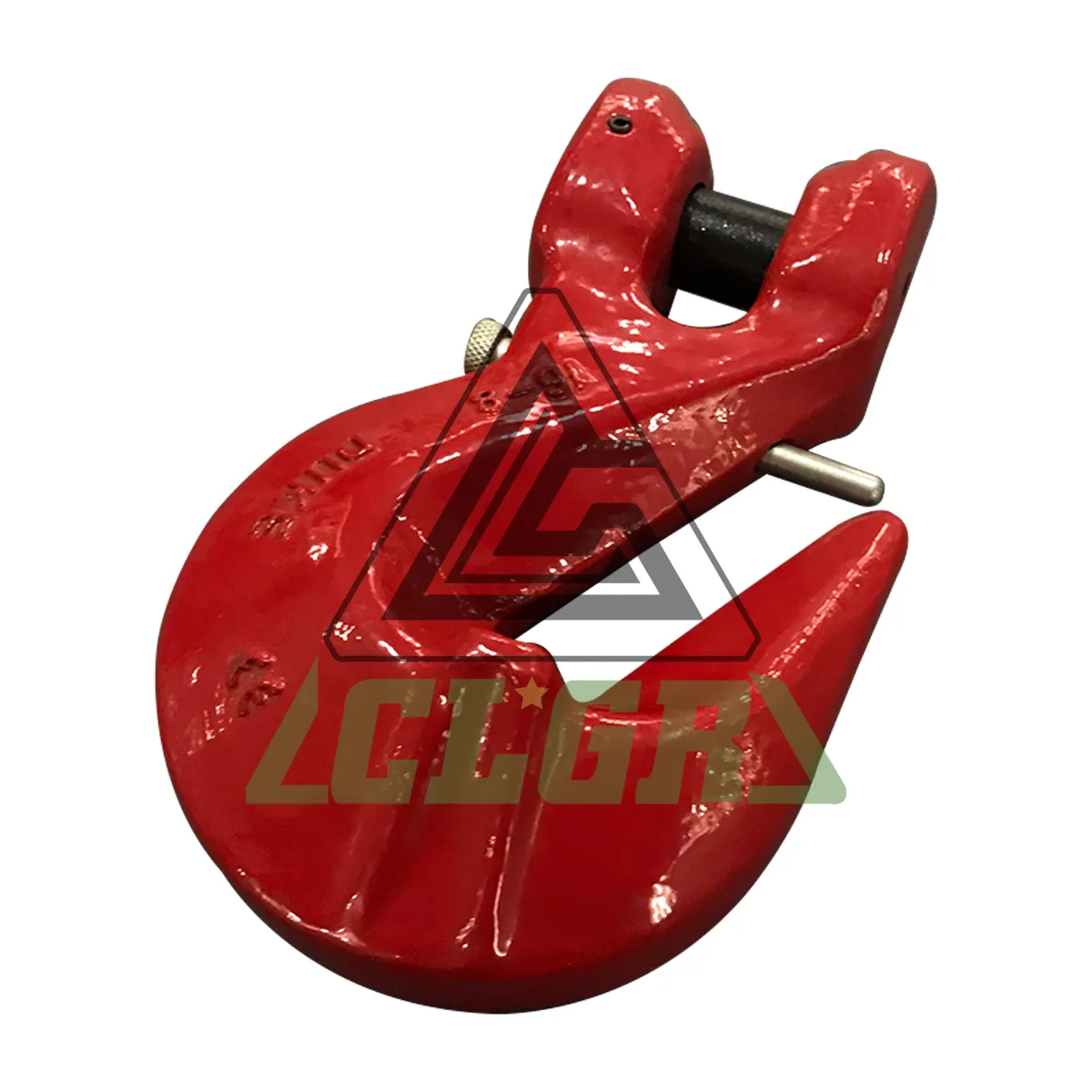

CLGR® Grade 80 Clevis Shortening Grab Hook with Safety Pin

Name: CLGR® Grade 80 Clevis Shortening Grab Hook with Safety Pin
Brand: CLGR®

CLGR® Grade 80 Clevis Shortening Grab Hook with Safety Pin, also known as Lifting Clevis Grab Hook with Safety Pin, G80 Clevis Grab Hook with Pin, G80 Clevis Grab Hook with Bolt and Cotter Pin.

This g80 clevis grab hook is equipped with a spring-loaded locking pin designed for secure load lashing. The pin securely retains the chain, preventing any accidental release during operation.

This clevis shortening hook, which can be easily mounted using a connecting link, is designed to enhance safety and stability, enabling quick and damage-free movement and storage of various loads.

To Get A Quote >

 

Overview of CLGR® Grade 80 Clevis Shortening Grab Hook with Safety Pin

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	6mm, 7/8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers’ requirements
Note	Never exceed working load limit
Country of Origin	China

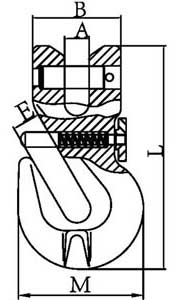

Specifications of CLGR® Grade 80 Clevis Shortening Grab Hook with Safety Pin

Part No.	U.W.	W.L.L.	B.L	A	B	E	M	L
Part No.	KGS	TONS	TONS	MM	MM	MM	MM	MM
8CRCSGHWP06	0.28	1.12	4.48	8	32	8	43.5	75
8CRCSGHWP7/8	0.33	2	8	9.5	35	11	19.5	89
8CRCSGHWP10	0.88	3.15	12.6	12.5	42.5	13.2	70.5	126
8CRCSGHWP13	1.85	5.3	21.2	15	63	16.5	90	163.5
8CRCSGHWP16	3.24	8	32	19.5	65.5	19.2	112.5	183.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
