CLGR® Grade 80 Double Clevis Link Special Type Chain Connector

Name: CLGR® Grade 80 Double Clevis Link Special Type Chain Connector
Brand: CLGR®

CLGR® Grade 80 Double Clevis Link Special Type Chain Connector, also known as G80 Special H Link Chain Connector.

The Grade 80 Double Clevis Link Special Type Chain Connector is designed for connecting Grade 80 alloy steel chains to each other or to other lifting components, such as hooks and shackles, in multi-leg sling assemblies.

Engineered for superior performance, this link offers an exceptional strength-to-weight ratio, ensuring maximum load-bearing capacity without unnecessary bulk. Each link undergoes rigorous testing to guarantee consistent integrity and reliability under the most demanding lifting conditions.

To Get A Quote >

Overview of CLGR® Grade 80 Double Clevis Link Special Type Chain Connector

Brand	CLGR®
Material	Super Alloy steel
Processing	Drop Forged
Finish	Powder Coated
Size	13mm
Safety Factor	4:1
Country of Origin	China

Specifications of CLGR® Grade 80 Double Clevis Link Special Type Chain Connector

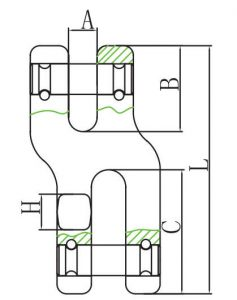

drawing-of-clgr®-grade-80-double-clevis-link-special-type-chain-connector-china-supplier

Part No.	Weight (KG)	WLL (T)	B.L (T)	A±0.5	B±1	C±0.5	D±0.5	H±0.5	L±1.2
8CRDCLS13	1.2	5.3	21.2	15	45	65	18	35	130
