CLGR® Grade 80 Master Link Rings, European Type EN1677-4 / DIN5688-3

Name: CLGR® Grade 80 Master Link Rings, European Type EN1677-4 / DIN5688-3
Brand: CLGR®

CLGR® Grade 80 Master Link Rings, also known as Grade 80 Oblong Master Link with Flat, G80 Oblong Recessed Master Link and Grade 80 Master Rings. It complies with EN1677-4 / DIN5688-3 standards. The surface finish is plastics spraying and forged from superior alloy steel.

Heavy duty tested and certified grade 80 master link suitable for single and double leg overhead lifting applications. It can be used with chain connectors and Grade 80 alloy lifting chains.

With a working load limit ranging from 1.6 t to 85.46 t, it is ideal for heavy-duty lifting applications, offering both strength and reliability.

To Get A Quote >

2 CLGR® Grade 80 Master Link Rings, European Type EN1677 4 DIN5688 3

CLGR® Grade 80 Master Link Rings for Sale

CLGR® Grade 80 Master Link Rings Material

CLGR® Grade 80 Master Link Rings Quality

 

Overview of CLGR® Grade 80 Master Link Rings, European Type EN1677-4 / DIN5688-3

Brand	CLGR®
Size	7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, 32mm, 36mm, 40mm, 72mm, 80mm
Material	Superior Alloy Steel
Standard	European Type
Safety Factor	4: 1
Processing	8-CR-ML-1677-07 to 8-CR-ML-1677-26 ⇒ WELDED (pressing flat on request) 8-CR-ML-1677-32 to 8-CR-ML-1677-80 ⇒ FORGED (no pressing flat) Quenched and Tempered
Surface Finish	Plastics Spraying
Note	Color code can be customized

Specifications of CLGR® Grade 80 Master Link Rings, European Type EN1677-4 / DIN5688-3

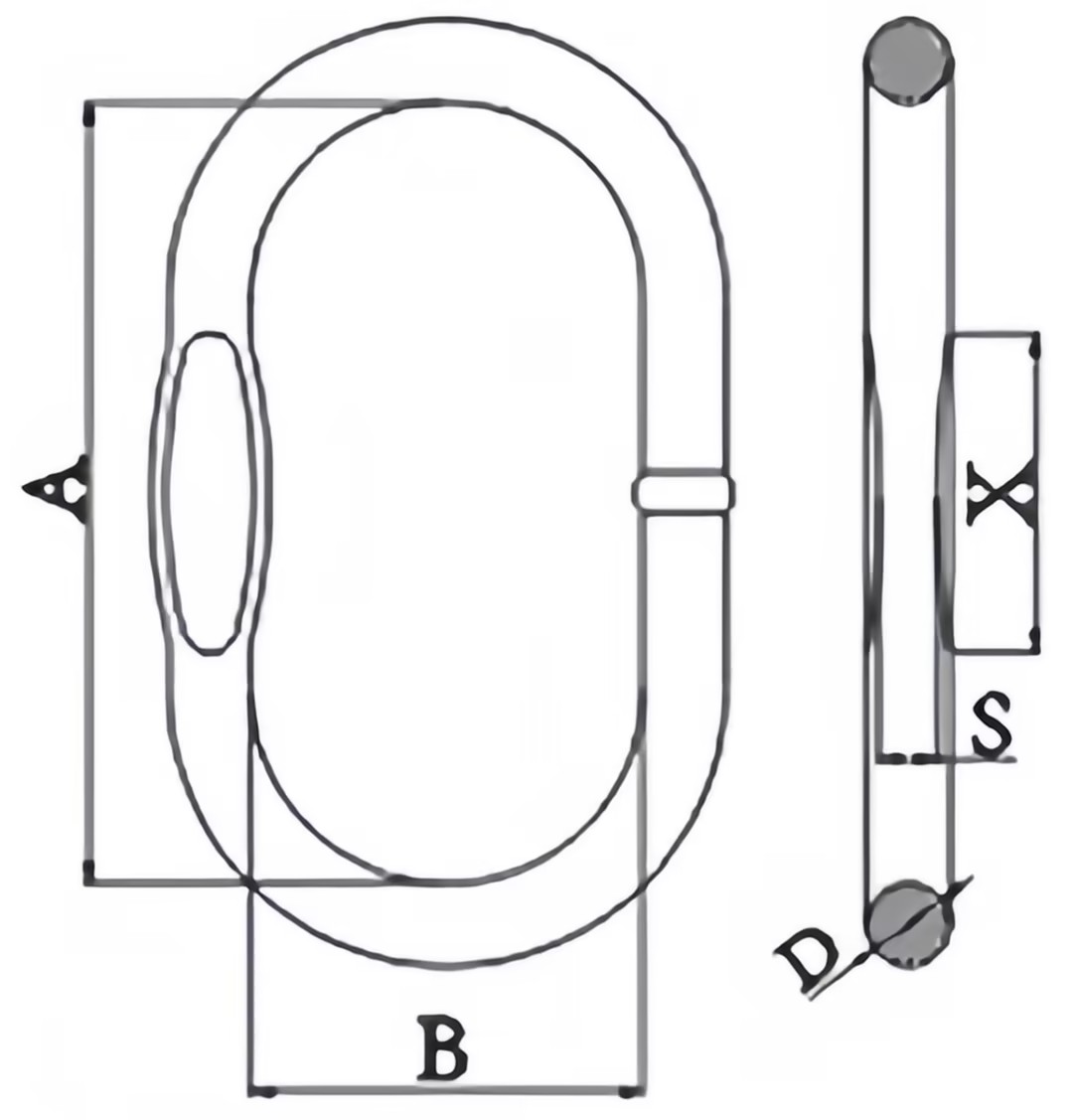

Drawing Grade 80 Master Link Rings, European Type EN1677-4

Part No.	G80 EN818-2 CHAIN		Size	Weight	WLL	B.L	D (mm)	A (mm)	B (mm)	S (mm)	X (mm)
Part No.	FOR 1 LEG	FOR 2 LEGS	mm	kg	T	T	D (mm)	A (mm)	B (mm)	S (mm)	X (mm)
8-CR-ML-EU07	7	6	7	0.34	1.6	6.4	13	110	60	7	25
8-CR-ML-EU08	8	7	8	0.54	2.12	8.48	16	110	60	7	25
8-CR-ML-EU10	10	8	10	0.823	3.15	12.6	18	135	75	7	35
8-CR-ML-EU13	13	10	13	1.5	5.3	21.2	22	160	90	11	35
8-CR-ML-EU16	16	13	16	2.32	8	32	26	180	100	13	45
8-CR-ML-EU18	18	16	18	3.95	11.2	44.8	32	200	110	17	55
8-CR-ML-EU20	20	18	20	6.34	14	56	36	260	140	19	60
8-CR-ML-EU22	22	20	22	8,96	17	68	40.	300	160	20	64
8-CR-ML-EU26	26	22	26	12.8	21.2	84.8	45	340	180	-	-
8-CR-ML-EU32	32	26	32	16.55	31.5	126	50	350	190	-	-
8-CR-ML-EU36	36	32	36	23.28	45	180	56	400	200	-	-
8-CR-ML-EU40	40	36	40	32	56	224	63	430	220	-	-
8-CR-ML-EU72	72	40	72	45.76	63	252	72	460	250	-	-
8-CR-ML-EU80	-	45	80	62	85.46	341.84	80	500	270	-	-

8-CR-ML-1677-07 to 8-CR-ML-1677-26: WELDED, there will be pressing flat on request.

8-CR-ML-1677-32 to 8-CR-ML-1677-80: FORGED, There is no pressing flat.

WLL based on 0°- 45°.
