CLGR® Grade 80 Eye Foundry Hook YD Type

Name: CLGR® Grade 80 Eye Foundry Hook YD Type
Brand: CLGR®

CLGR® Grade 80 Eye Foundry Hook YD Type, also known as Eye Type Foundry Hooks, Lifting Eye Foundry Hook Grade 80, G80 Large Open Eye Foundry Hook.

Forged from quenched and tempered alloy steel, finished with power coating for corrosion resistance, the hook meets the rigorous performance standards of EN1677, as well as all requirements of ASME B30.9 and B30.10. It is 100% Proof Tested in Accordance with ASTM A952, ensuring strength and reliability in heavy-duty lifting applications.

Designed for demanding foundry and fabrication environments, the Eye Foundry Hook features a large, easy‑connect opening that simplifies the lifting of molds, castings, and pipes, saving valuable time on the job. Its large eye is compatible with both chain slings and steel wire rope slings, offering versatile rigging options.

To Get A Quote >

CLGR® Grade 80 Eye Foundry Hook YD Type China Factory

CLGR® Grade 80 Eye Foundry Hook YD Type China Supplier

Overview of CLGR® Grade 80 Eye Foundry Hook YD Type

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm
Tips	Color Code: Customized according to customers' requirements
Note	Never exceed working load limit; For Use with Grade 80/100 Chain Slings

Specifications of CLGR® Grade 80 Eye Foundry Hook YD Type

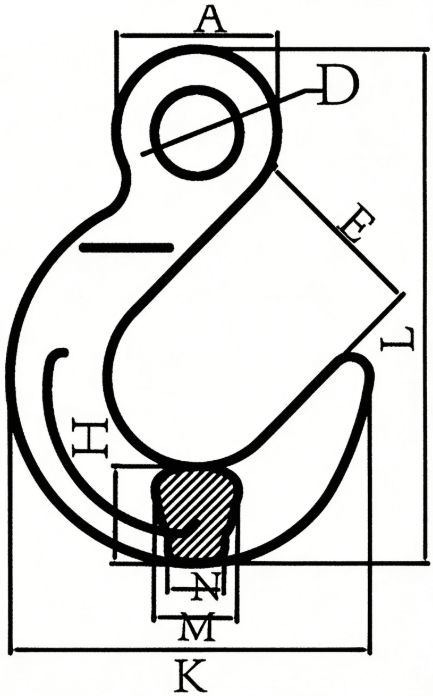

drawing-of-clgr-grade-80-eye-foundry-hook-china-manufacturer

Part No.	Weight (KG)	WLL (t)	B. L. (t)	E±1.2 (mm)	A±1 (mm)	D±1 (mm)	H±1 (mm)	M±1 (mm)	N±O.5 (mm)	K±2 (mm)	L±2 (mm)
8CREFH7/8	1.09	2	8	63.5	39	18	31	25.4	18	120	163
8CREFH10	2.04	3.15	12.6	76	50.8	22	38	32.6	23	146	200
8CREFH13	3.22	5.3	21.2	89	63.5	27	44.5	38.1	27	171	238
8CREFH16	5.53	8	32	102	76	32	52	46	32	198	278
8CREFH20	8.75	12.5	50	114.5	89	38	65	55	39	232	325
8CREFH22	11.93	15	60	127.5	102	45	69	57	40	256	361
8CREFH26	16.8	21.2	84.8	140	126	67.5	77	66	45	283	402
8CREFH32	26.6	31.5	126	153.5	151.5	81.5	97.5	80	58	327	461
