CLGR® Grade 100 Eye Grab Hook with Clevis Attachment

Name: CLGR® Grade 100 Eye Grab Hook with Clevis Attachment
Brand: CLGR®

CLGR® Grade 100 Eye Grab Hook with Clevis Attachment, also known as G100 Clevis Eye Shortening Grab Hook, Lifting Eye Grab Hook with Clevis Attachment, Grade 10 Integrated Eye Grab Hook, Integrated eye grab shortening hook.

Approved for overhead lifting, the Eye Grab Hook with Clevis Attachment features a chain cradle engineered to fully support the chain link and evenly distribute 100% of the Working Load Limit (WLL).

Grade 100 Eye Grab Hook with Clevis Attachment is quenched and tempered prior to undergoing rigorous proof testing at twice the working load limit (WLL) and fatigue testing for 20,000 cycles at 1.5 times the WLL. The unique bottom clevis design serves as a versatile anchor point for custom sling configurations.

To Get A Quote >

CLGR® Grade 100 Eye Grab Hook with Clevis Attachment

CLGR® Grade 100 Eye Grab Hook with Clevis Attachment China Supplier

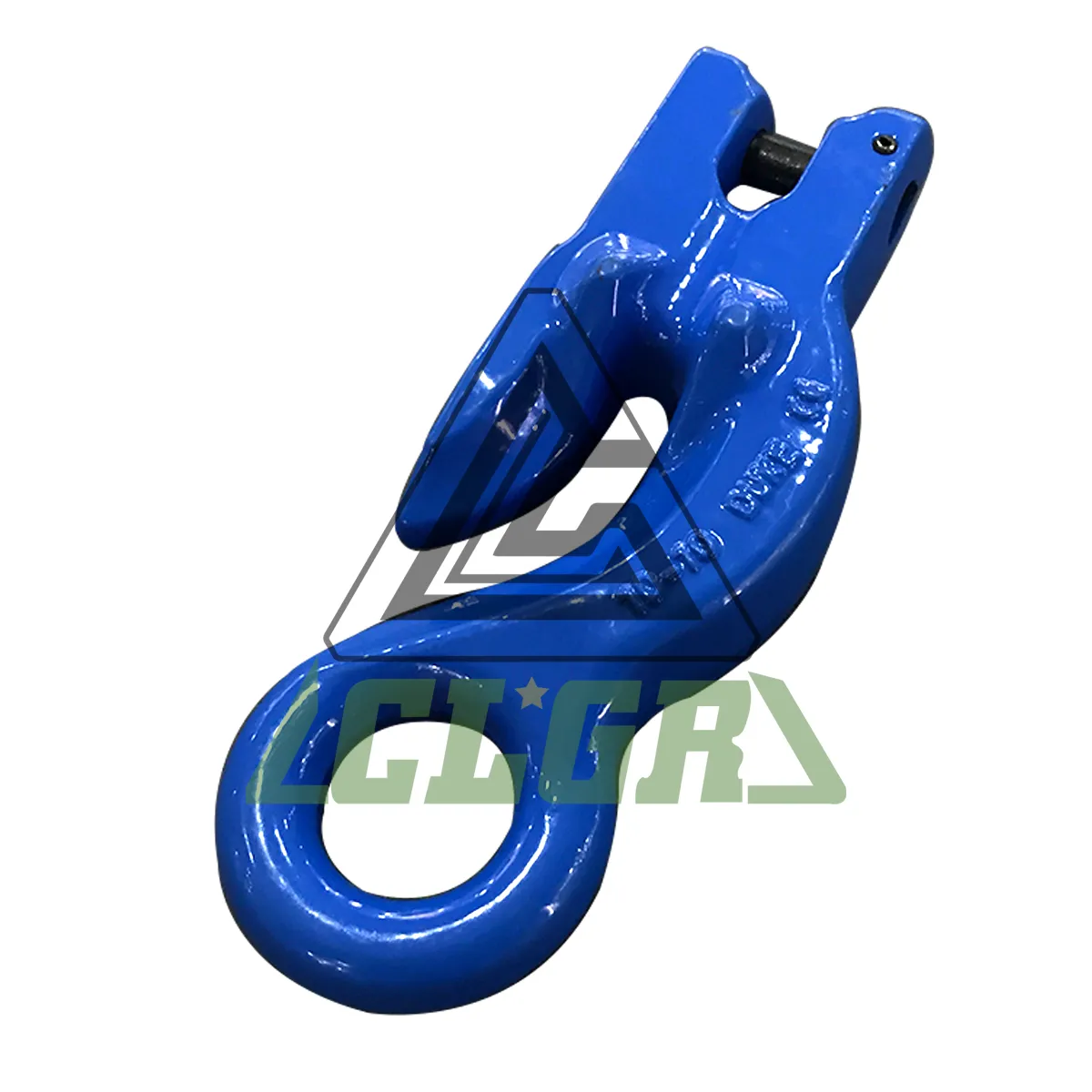

CLGR® Grade 100 Eye Grab Hook with Clevis Attachment China Wholesale

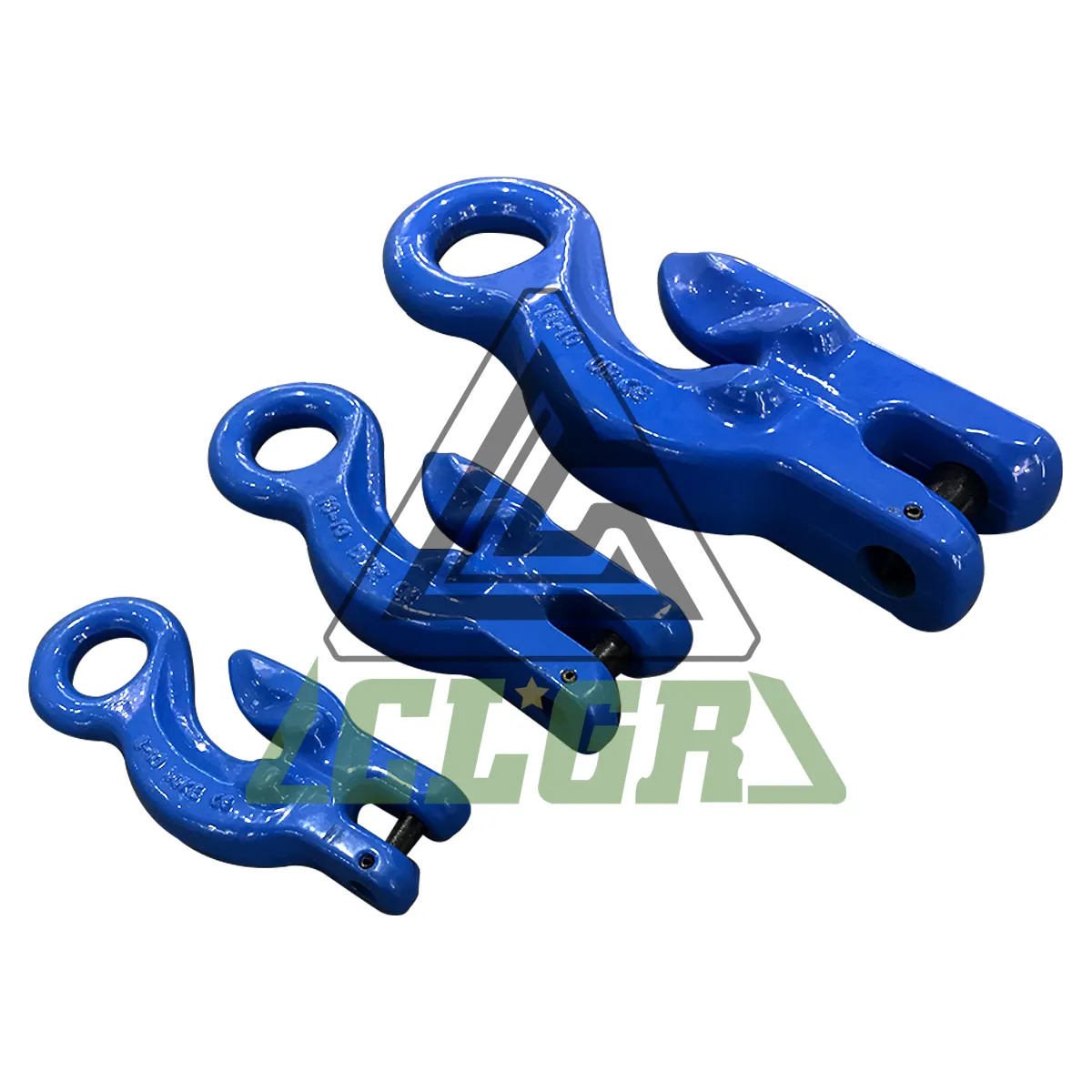

CLGR® Grade 100 Eye Grab Hook with Clevis Attachment China

 

Overview of CLGR® Grade 100 Eye Grab Hook with Clevis Attachment

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated
Size	8mm, 10mm, 13mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® Grade 100 Eye Grab Hook with Clevis Attachment

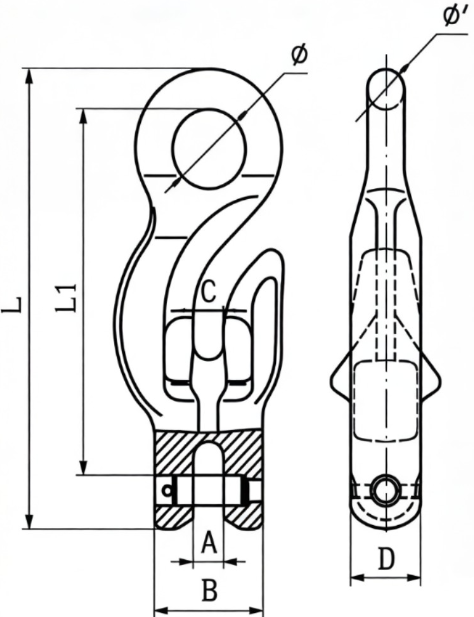

drawing-of-clgr®-grade-100-eye-grab-hook-with-clevis-attachment-china-supplier

Part No.	WEIGHT (Kg)	WLL (T)	B.L. (T)	∅±2	A±0.5	B±2	C±0.5	L1±2	L±3	∅'±1	D±1.5
10CREGHC6	0.3	1.4	5.6	18	8	32	8	88	112	9	17.5
10CREGHC8	0.69	2.5	1	24	10	36	10	116	145	12	23
10CREGHC10	1.33	4	16	30	12.5	48	12.5	145	184	15	28.5
10CREGHC13	2.36	6.7	26.8	37	15.5	59.5	15.5	178	223	18	35
10CREGHC16	4.5	10	40	45	19	70	19	216	273	22	42
10CREGHC20	9	16	64	58	24.5	85	24.5	278	351	28	52
