CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec.

Name: CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec.
Brand: CLGR®

CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec. , also known as Hot-Dip Galvanized Jaw&Eye Turnbuckle.

Built for heavy-duty use, this turnbuckle combines forged steel strength with hot-dip galvanizing for maximum corrosion resistance. Complies with US Fed. Spec. standards.

The jaw and eye ends enable versatile, secure connections, while reverse threads allow precise tension adjustment. Ideal for marine, construction, and industrial applications.

Available in various sizes with clearly rated Working Load Limits (WLL).

To Get A Quote >

clgr galvanized turnbuckle jaw & eye lhg 227 us fed. spec.

clgr galvanized turnbuckle jaw & eye lhg 227 us fed. spec. china factory

clgr galvanized turnbuckle jaw & eye lhg 227 us fed. spec. china manufacturer

clgr galvanized turnbuckle jaw & eye lhg 227 us fed. spec. rigging screw

clgr galvanized turnbuckle jaw & eye lhg 227 us fed. spec. for sale

 

Overview of CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec

Brand	CLGR®
Technical Notes	Jaw & Eye Turnbuckle meet US Federal Specification
Origin	China
Material	Superior Carbon Steel (1045)
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Processing	Drop Forged + Machining +Quenched & Tempered
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4×4, 5/16×41/2, 3/8×6, 1/2×6, 1/2×9, 1/2×12, 5/8×6, 5/8×9, 5/8×12 3/4×6, 3/4×9, 3/4×12, 3/4×18, 7/8×12, 7/8×18, 1×6, 1×12, 1×18, 1×24 11/4×12, 11/4×18, 11/4×24, 11/2×12, 11/2×18, 11/2×24, 13/4×18, 13/4×24 2×24, 2 1/2×24, 2 3/4×24
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec.

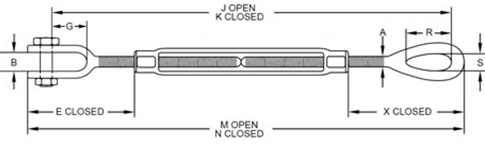

Drawing of CLGR® Galvanized Turnbuckle Jaw & Eye LHG-227 US Fed. Spec.

Part No.	Thread Dia & Take Up(in)	Working limited	Weight	Dimensions
		Working limited	Weight	Dimensions
		(Ibs)	(Ibs)	B	E	G	J	K	R	S
					Closed		Open	Closed
					Closed		Open	Closed
CR-TB-JE-US-01	1/4×4	500	0.33	0.45	1.66	0.64	11.57	7.57	0.81	0.34
CR-TB-JE-US-02	5/16×41/2	800	0.52	0.5	2.02	0.87	13.5	9	0.95	0.44
CR-TB-JE-US-03	3/8×6	1200	0.8	0.53	2.11	0.85	16.91	10.91	1.13	0.53
CR-TB-JE-US-04	1/2×6	2200	1.77	0.64	3.22	1.07	19.3	13.3	1.41	0.71
CR-TB-JE-US-05	1/2×9	2200	2.25	0.64	3.2	1.07	25.59	16.59	1.41	0.71
CR-TB-JE-US-06	1/2×12	2200	2.67	0.64	3.2	1.07	31.59	19.59	1.41	0.71
CR-TB-JE-US-07	5/8×6	3500	2.98	0.79	3.9	1.32	20.73	14.73	1.8	0.88
CR-TB-JE-US-08	5/8×9	3500	3.72	0.79	3.89	1.32	27.07	18.07	1.8	0.88
CR-TB-JE-US-09	5/8×12	3500	4.35	0.79	3.89	1.32	33.07	21.07	1.8	0.88
CR-TB-JE-US-10	3/4×6	5200	4.51	0.97	4.71	1.52	22.17	16.17	2.09	1
CR-TB-JE-US-11	3/4×9	5200	5.56	0.97	4.68	1.52	28.57	19.57	2.09	1
CR-TB-JE-US-12	3/4×12	5200	6.42	0.97	4.68	1.52	34.57	22.57	2.09	1
CR-TB-JE-US-13	3/4×18	5200	8.14	0.97	4.71	1.52	46.57	28.57	2.09	1
CR-TB-JE-US-14	7/8×12	7200	9.1	1.16	5.5	1.77	35.68	23.68	2.38	1.25
CR-TB-JE-US-15	7/8×18	7200	11.6	1.16	5.5	1.77	48.15	30.15	2.38	1.25
CR-TB-JE-US-16	1×6	10000	10	1.34	6.09	2.05	25.03	19.03	3	1.43
CR-TB-JE-US-17	1×12	10000	13.4	1.34	6.09	2.05	37.03	25.03	3	1.43
CR-TB-JE-US-18	1×18	10000	16.7	1.34	6.09	2.05	49.03	31.03	3	1.43
CR-TB-JE-US-19	1×24	10000	20.6	1.34	6.06	2.05	61.63	37.63	3	1.43
CR-TB-JE-US-20	11/4×12	15200	20.9	1.84	8.09	2.82	40.76	28.76	3.59	1.82
CR-TB-JE-US-21	11/4×18	15200	24.8	1.84	8.09	2.82	52.76	34.76	3.59	1.82
CR-TB-JE-US-22	11/4×24	15200	28.8	1.84	8.09	2.82	65.32	41.32	3.59	1.82
CR-TB-JE-US-23	11/2×12	21400	30.6	2.06	8.93	2.81	42.5	30.5	4.09	2.12
CR-TB-JE-US-24	11/2×18	21400	36	2.06	8.93	2.81	54.5	36.5	4.09	2.12
CR-TB-JE-US-25	11/2×24	21400	41.5	2.06	8.93	2.81	67.12	43.12	4.09	2.12
CR-TB-JE-US-26	13/4×18	28000	52.1	2.6	9.36	3.35	55.37	37.37	4.65	2.38
CR-TB-JE-US-27	13/4×24	28000	59.7	2.6	9.36	3.35	67.37	43.37	4.65	2.38
CR-TB-JE-US-28	2×24	37000	89.9	2.62	11.8	3.74	72.66	48.66	5.81	2.69
CR-TB-JE-US-29	2 1/2×24	60000	158	3.06	13.26	4.44	76.08	52.08	6.49	3.12
CR-TB-JE-US-30	2 3/4×24	75000	187	3.69	14.92	4.19	78.05	54.05	7	3.25
