CLGR® Galvanized Turnbuckle Eye&Eye LHG-226 US Fed. Spec.

Name: CLGR® Galvanized Turnbuckle Eye&Eye LHG-226 US Fed. Spec.
Brand: CLGR®

CLGR® Galvanized Turnbuckle Eye&Eye also known as a rigging screw or bottle screw and Hot-Dip Galvanized Turnbuckle Eye to Eye.

Our Galvanized Turnbuckle Eye&Eye provides superior corrosion resistance and durability for long-term outdoor use.

Constructed from high-carbon steel, this heavy-duty turnbuckle features reverse-cut threads for smooth, precise tension adjustment. It is ideal for a wide range of applications, including: Inground Swimming Pool Kits; Wire Rope Assemblies and Marine Rigging; Security Fences, Gates, and Guardrail Systems; Structural Guy Wires for antennas and towers.

Available in various sizes with clear Working Load Limits (WLL), this versatile tensioning device provides a reliable solution for your most demanding projects.

To Get A Quote >

galvanized turnbuckle eye&eye lhg 226 us fed. spec.

galvanized turnbuckle eye&eye lhg 226 us fed. spec. china factory

clgr galvanized turnbuckle eye&eye lhg 226 us fed. spec. china supplier

galvanized turnbuckle eye&eye lhg 226 us fed. spec. china

 

Overview of CLGR® Galvanized Turnbuckle Eye&Eye LHG-226 US Fed. Spec.

Brand	CLGR®
Technical Notes	Eye & Eye Turnbuckle meet US Federal Specification
Origin	China
Material	Superior Carbon Steel (1045#)
Safety Factor	Proof tested to 2 × WLL and Minimum Break Force is 5 × WLL
Processing	Drop Forged + Machining
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4×4, 5/16×4 1/2, 3/8×6, 1/2×6, 1/2×12, 5/8×6, 5/8×12, 3/4×6, 3/4×12, 3/4×18, 7/8×12, 7/8×18, 1×6, 1×12, 1×18, 1×24 1 1/4×12, 1 1/4×18, 1 1/4×24, 1 1/2×12, 1 1/2×18, 1 1/2×24, 1 3/4×18, 1 3/4×24,2×24, 2 1/2×24, 2 3/4×24
Tips	Color Code: Customized according to customers’ requirements

Specifications of CLGR® Galvanized Turnbuckle Eye&Eye US Fed. Spec. LHG-226

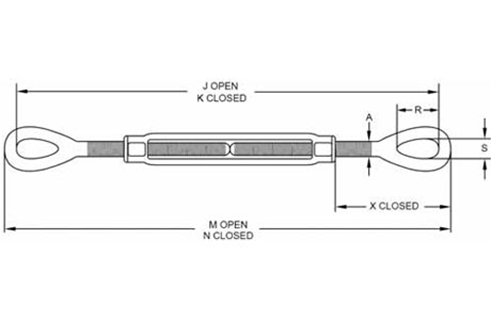

Part No.	Thread Dia & Take Up(in)	W.L.L. IBS	U.W IBS/pc	Dimensions


				J	K	M	N	R	S	X
				Open	Closed	Open	Open	R	S	Closed
CR-TB-EE-US-01	1/4×4	500	0.29	11.94	7.94	12.38	8.38	0.81	0.34	1.76
CR-TB-EE-US-02	5/16×41/2	800	0.48	13.92	9.42	14.48	9.98	0.95	0.44	2.2
CR-TB-EE-US-03	3/8×6	1200	0.75	17.56	11.56	18.24	12.24	1.13	0.53	2.48
CR-TB-EE-US-04	1/2×6	2200	1.72	19.94	13.94	20.82	14.82	1.41	0.71	3.56
CR-TB-EE-US-05	1/2×12	2200	2.63	32.23	20.23	33.11	21.11	1.41	0.71	3.54
CR-TB-EE-US-06	5/8×6	3500	2.75	21.72	15.72	22.72	16.72	1.8	0.88	4.35
CR-TB-EE-US-07	5/8×12	3500	4.12	34.06	22.06	35.06	23.06	1.8	0.88	4.34
CR-TB-EE-US-08	3/4×6	5200	4.22	23.24	17.24	24.5	18.5	2.09	1	5.12
CR-TB-EE-US-09	3/4×12	5200	6.12	35.64	23.64	36.9	24.9	2.09	1	5.09
CR-TB-EE-US-10	3/4×18	5200	7.83	47.64	29.64	48.9	30.9	2.09	1	5.12
CR-TB-EE-US-11	7/8×12	7200	8.83	36.7	24.7	38.2	26.2	2.38	1.25	5.79
CR-TB-EE-US-12	7/8×18	7200	11.5	49.17	31.17	50.67	32.67	2.38	1.25	5.79
CR-TB-EE-US-13	1×6	10000	9.62	26.24	20.24	28	22	3	1.43	6.5
CR-TB-EE-US-14	1×12	10000	13	38.24	26.24	40	28	3	1.43	6.5
CR-TB-EE-US-15	1×18	10000	16.3	50.24	32.24	52	34	3	1.43	6.5
CR-TB-EE-US-16	1×24	10000	20.2	62.84	38.84	64.6	40.6	3	1.43	6.47
CR-TB-EE-US-17	1 1/4×12	15200	19.9	42.14	30.14	44.38	32.38	3.59	1.82	8.49
CR-TB-EE-US-18	1 1/4×18	15200	23.8	54.14	36.14	56.38	38.38	3.59	1.82	8.49
CR-TB-EE-US-19	1 1/4×24	15200	27.8	66.7	42.7	68.94	44.94	3.59	1.82	8.49
CR-TB-EE-US-20	1 1/2×12	21400	28.7	44.24	32.24	46.74	34.74	4.09	2.12	9.46
CR-TB-EE-US-21	1 1/2×18	21400	34.1	56.24	38.24	58.74	40.74	4.09	2.12	9.46
CR-TB-EE-US-22	1 1/2×24	21400	39.6	68.86	44.86	71.36	47.36	4.09	2.12	9.46
CR-TB-EE-US-23	1 3/4×18	28000	50.7	57.38	39.38	60.38	42.38	4.65	2.38	9.97
CR-TB-EE-US-24	1 3/4×24	28000	58.2	69.38	45.38	72.38	48.38	4.65	2.38	9.97
CR-TB-EE-US-25	2×24	37000	83.5	75.68	51.68	79.18	55.18	5.81	2.69	13.03
CR-TB-EE-US-26	2 1/2×24	60000	149	79.18	55.18	83.18	59.18	6.49	3.12	13.76
CR-TB-EE-US-27	2 3/4×24	75000	174	81.34	57.34	85.84	61.84	7	3.25	15.09
