CLGR® DIN 1480 Turnbuckle Stub End

Name: CLGR® DIN 1480 Turnbuckle Stub End
Brand: CLGR®

CLGR® DIN 1480 Turnbuckle Stub End also known as straining screw DIN 1480 with stub end, DIN 1480 stud end turnbuckle, DIN 1480 turnbuckle working load limit stub end.

This DIN 1480 certified turnbuckle features sturdy stub ends for permanent connections. Its hot-dip galvanized steel construction provides exceptional corrosion resistance in marine environments.

The design is ideal for structural bracing, industrial rigging, and permanent installations requiring reliable load-bearing performance.

Customizable options are available for specialized applications.

To Get A Quote >

clgr din 1480 turnbuckle stub end china supplier

din 1480 turnbuckle stub end china manufacturer

Overview of CLGR® DIN 1480 Turnbuckle Stub End

Brand	CLGR®
Origin	China
Technical Notes	Turnbuckle Stub End To DIN 1480
Material	Super Mild Steel
Processing	Drop Forged
Finish	Zinc plated, Hot dipped galvanized
Size	M5, M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M33, M36
Important Notes	Turnbuckles are not for lifting. Only suitable for use in tension.

Specifications of CLGR® DIN 1480 Turnbuckle Stub End

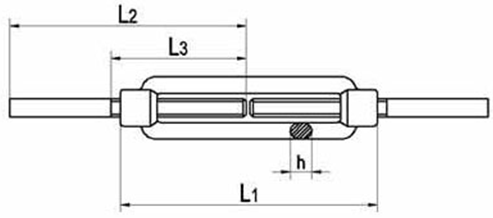

Drawing of CLGR® DIN 1480 Turnbuckle Stub End

Part No.	size	L1	h	L2	L3	W.L.L.	B.L.
Part No.	size	Mm				N
CR-1480-SE-05	M5	70	5	80	40	1530	6120
CR-1480-SE-06	M6	110	7	120	65	2250	9000
CR-1480-SE-08	M8	110	8	120	65	4100	16400
CR-1480-SE-10	M10	125	9.5	150	75	6500	26000
CR-1480-SE-12	M12	125	11	150	75	9300	37200
CR-1480-SE-14	M14	140	13.5	165	85	12600	50400
CR-1480-SE-16	M16	170	14	200	100	17700	70800
CR-1480-SE-20	M20	200	17	220	120	27000	108000
CR-1480-SE-22	M22	220	19	220	130	33900	135600
CR-1480-SE-24	M24	255	21	260	150	39200	156800
CR-1480-SE-27	M27	255	22	260	150	54100	205600
CR-1480-SE-30	M30	255	23	260	160	62500	250000
CR-1480-SE-33	M33	255	25	280	160	77700	310800
CR-1480-SE-36	M36	295	28	300	180	91000	364000
