CLGR® Galvanized Turnbuckle Hook & Eye US Fed. Spec.

Name: CLGR® Galvanized Turnbuckle Hook & Eye US Fed. Spec.
Brand: CLGR®

CLGR® Galvanized Turnbuckle Hook & Eye US Fed. Spec. also known as hot dipped galvanized turnbuckle hook eye and temporary fence turnbuckle.

This hot-dip galvanized turnbuckle features forged steel construction with hook and eye ends, combining quick-connect capability with secure fixed connections while offering precise tension adjustment through reverse threading.

It provides excellent corrosion resistance for marine, construction, and utility applications including temporary fencing, sail rigging, and structural bracing.

To Get A Quote >

clgr galvanized turnbuckle hook & eye us fed. spec.

clgr galvanized turnbuckle hook & eye us fed. spec. china manufacturer

clgr galvanized turnbuckle hook & eye us fed. spec. china supplier

clgr galvanized turnbuckle hook & eye us fed. spec. china

 

Overview of Galvanized Turnbuckle Hook & Eye US Fed. Spec.

Brand	CLGR®
Technical Notes	Hook & Eye Turnbuckle meet US Federal Specification
Origin	China
Material	Superior Forged Carbon Steel (1045#)
Safety Factor	Proof tested to 2×WLL and Minimum Break Force is 5 × WLL.
Processing	Drop Forged / Forged + Machining
Finish	Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4″×4″ , 5/16″×4 1/2″ , 3/8″×6″ , 1/2″×6″ , 1/2″×12″ , 5/8″×6″ , 5/8″×12″ , 3/4″×6″ , 3/4″×12″ , 3/4″×18″ , 7/8″×12″ , 1″×12″
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Galvanized Turnbuckle Hook & Eye US Fed. Spec.

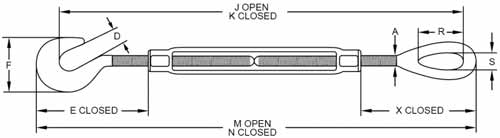

Drawing of CLGR® Galvanized Turnbuckle Hook & Eye US Fed. Spec.

Part No.	Thread Dia & Take Up(in)	WLL	Weight Each	Dimensions(in)
		WLL	Weight Each	Dimensions(in)
		(Ibs)	(Ibs)	A	D	E	F	J	K	M	N	R	S	X	BB
						Closed		Open	Closed	Open	Closed			Closed
						Closed		Open	Closed	Open	Closed			Closed
CR-TB-HE-US-01	1/4×4	400	0.31	0.25	0.44	1.67	1.27	11.66	7.66	12.29	8.29	0.81	0.34	1.76	4.07
CR-TB-HE-US-02	5/16×41/2	700	0.5	0.31	0.5	2	1.5	13.5	9	14.28	9.78	0.95	0.44	2.2	4.58
CR-TB-HE-US-03	3/8×6	1000	0.79	0.38	0.56	2.28	1.76	17.09	11.09	18.04	12.04	1.13	0.53	2.48	6.1
CR-TB-HE-US-04	1/2×6	1500	1.8	0.5	0.65	3.53	2.28	19.57	13.57	20.79	14.79	1.41	0.71	3.56	6.03
CR-TB-HE-US-05	1/2×12	1500	2.7	0.5	0.65	3.51	2.28	31.86	19.86	33.08	21.08	1.41	0.71	3.54	12.36
CR-TB-HE-US-06	5/8×6	2250	2.98	0.63	0.9	4.24	2.81	21.11	15.11	22.61	16.61	1.8	0.88	4.35	6.03
CR-TB-HE-US-07	5/8×12	2250	4.35	0.63	0.9	4.23	2.81	33.45	21.45	34.95	22.95	1.8	0.88	4.34	12.39
CR-TB-HE-US-08	3/4×6	3000	4.21	0.75	0.98	5.07	3.33	22.61	16.61	24.45	18.45	2.09	1	5.12	6.13
CR-TB-HE-US-09	3/4×12	3000	6.52	0.75	0.98	5.04	3.33	35.01	23.01	36.85	24.85	2.09	1	5.09	12.59
CR-TB-HE-US-10	3/4×18	3000	8.24	0.75	0.98	5.07	3.33	47.01	29.01	48.85	30.85	2.09	1	5.12	18.53
CR-TB-HE-US-11	7/8×12	4000	9.34	0.88	1.13	5.82	3.78	36.11	24.11	38.23	26.23	2.38	1.25	5.79	12.16
CR-TB-HE-US-12	1×12	5000	13.9	1	1.25	6.56	4.25	37.65	25.65	40.06	28.06	3	1.43	6.5	12.18
