CLGR® DIN 1478 Closed Turnbuckle Body - China Supplier

Name: CLGR® DIN 1478 Closed Turnbuckle Body - China Supplier
Brand: CLGR®

CLGR® DIN 1478 Closed Turnbuckle Body also known as hot dipped galvanized din 1478, Closed Body Rigging Screws, DIN 1478 Spannschloss and Bottle Screws.

Compliant with the DIN 1478 standard, our closed body turnbuckle ensures exceptional safety and performance in professional lifting applications. Constructed from forged steel with hot-dip galvanized coating, it provides superior corrosion resistance for harsh industrial and marine environments.

The enclosed design of the turnbuckle body offers enhanced safety by fully containing the threaded rods during adjustment, while the reverse-cut threads allow for precise tension control.

This DIN 1478 closed body turnbuckle is designed for industrial rigging, stage/event installations, marine equipment tensioning, permanent structural bracing, and heavy-duty machinery anchoring applications.

Rigging screw turnbuckles available in standard and custom sizes, and have a choice of eye or hook end fitting.

To Get A Quote >

clgr din 1478 closed turnbuckle body china factory

clgr din 1478 closed turnbuckle body china manufacturer

clgr din 1478 closed turnbuckle body china supplier

 

Overview of CLGR® DIN 1478 Closed Turnbuckle Body

Brand	CLGR®
Technical Notes	Turnbuckle to DIN1478
Origin	China
Material Body	Superior Carbon Steel or Alloy Steel
Finish	Zinc plated, hot dipped galvanized
Size	M6 M8 M10 M12 M16 M20 M24 M30 M36 M48 turnbuckle meet DIN 1478
Important Notes	Not for Lifting. Only suitable for using in tension.

Specifications of CLGR® DIN 1478 Closed Turnbuckle Body

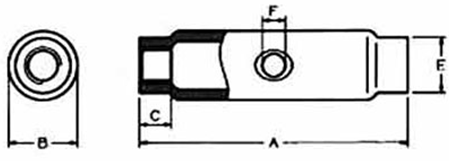

Drawing of CLGR® DIN 1478 Closed Turnbuckle Body

Part No.	Size	A	B	C	E	F	S.W.L.	U.W.
Part No.	Size	mm	mm	mm	mm	mm	kgs	kgs
CR1478-B06	M6	110	17.2	7.5	9	6	225	0.1
CR1478-B06	M6	110	17.2	10	12	8	410	0.09
CR1478-B10	M10	125	21.3	12	15	8	650	0.19
CR1478-B10	M10	125	25	15	18	10	930	0.27
CR1478-B16	M16	170	30	20	24	10	1170	0.42
CR1478-B16	M16	200	33.7	24	30	12	2700	0.62
CR1478-B24	M24	255	42.4	29	33	12	3920	1.24
CR1478-B24	M24	255	51	36	41	16	6250	1.47
CR1478-B36	M36	295	63.5	43	50	16	9100	2.87
CR1478-B36	M36	330	70	51	55	20	12500	4.2
CR1478-B48	M48	355	83	58	62	20	16500	5.78
