CLGR® Galvanized Jaw & Jaw Turnbuckle LHG-228 US Type

Name: CLGR® Galvanized Jaw & Jaw Turnbuckle LHG-228 US Type
Brand: CLGR®

CLGR® Galvanized Jaw & Jaw Turnbuckle US Type, also known as Jaw Jaw Open Turnbuckle and galvanized jaw and jaw straining screws, conforms to ASTM F-1145.

These turnbuckles can be used for tightening, tensioning, and adjusting many wire rope applications.

As they are open bodied, the thread is visible, allowing for the user to monitor the rate of turning.

Made from drop-forged and hot-dip galvanized steel / electrically galvanized, these Galvanized Steel Jaw & Jaw Turnbuckles resist rust and corrosion, making them ideal for outdoor and marine applications.

Galvanized turnbuckles are available in sizes ranging from 1/4'' to 2-3/4'' to suit a wide range of applications.

To Get A Quote >

clgr galvanized jaw jaw turnbuckle lhg 228 us type

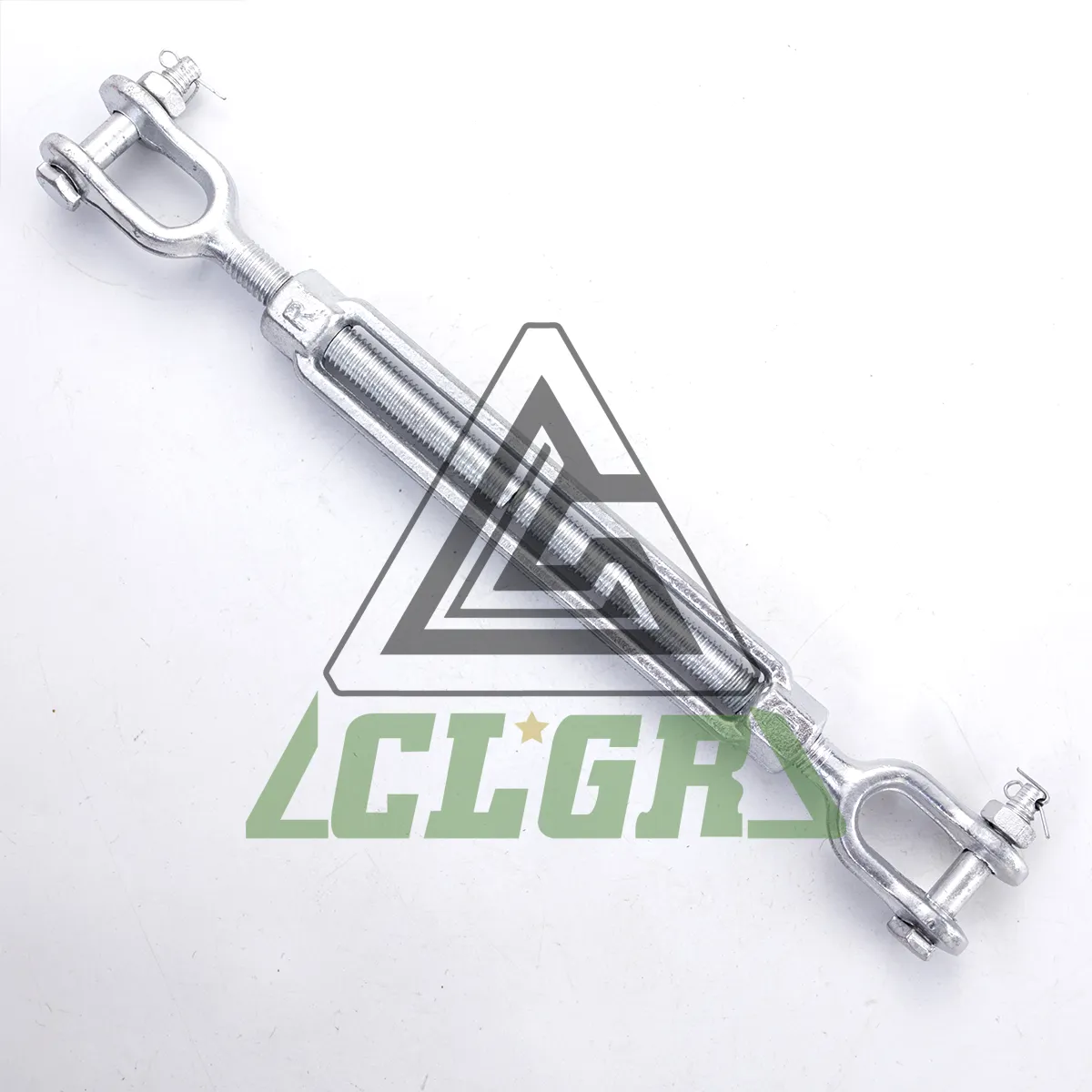

clgr galvanized jaw & jaw turnbuckle lhg 228 us type china wholesale

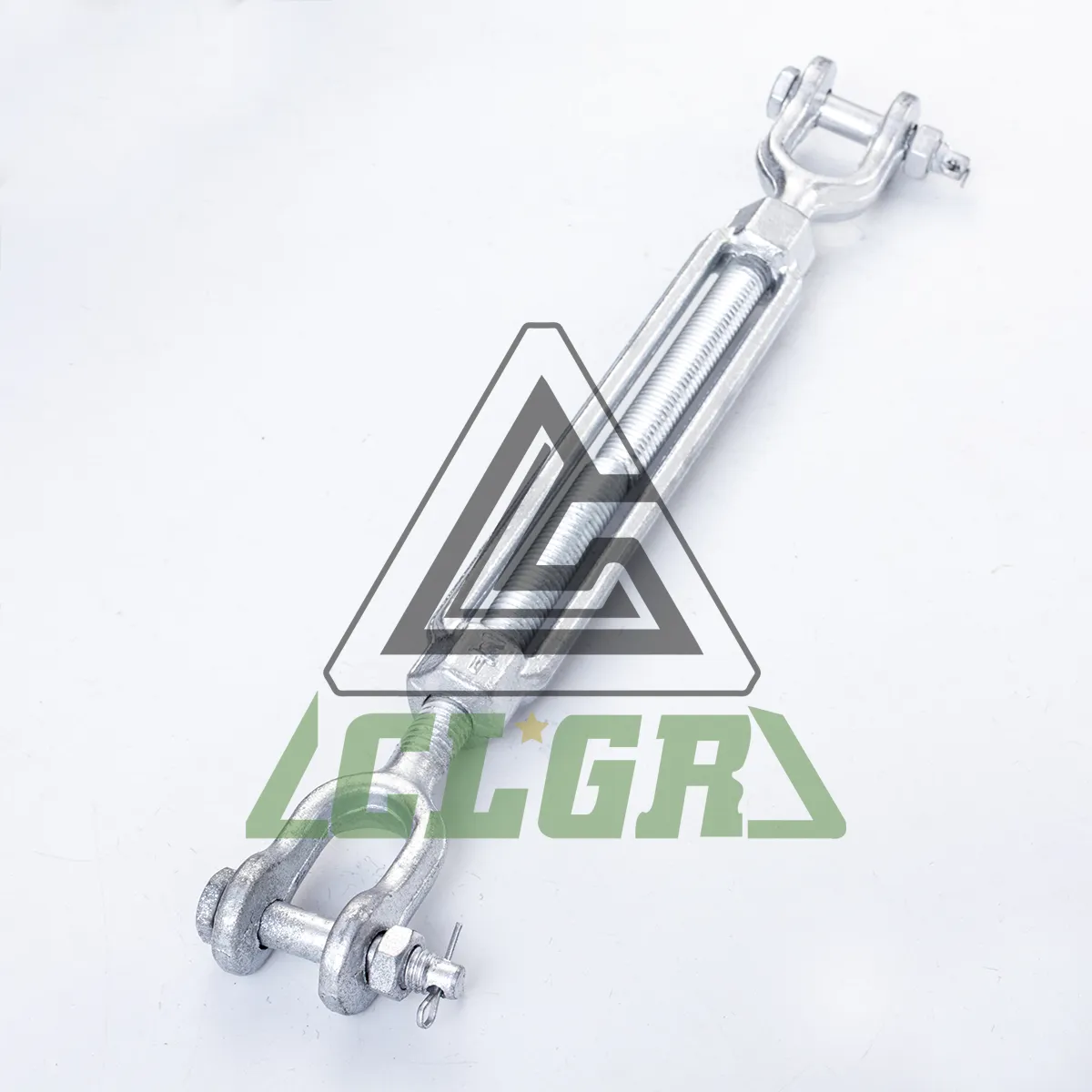

clgr galvanized jaw jaw turnbuckle lhg 228 us type china manufacturer

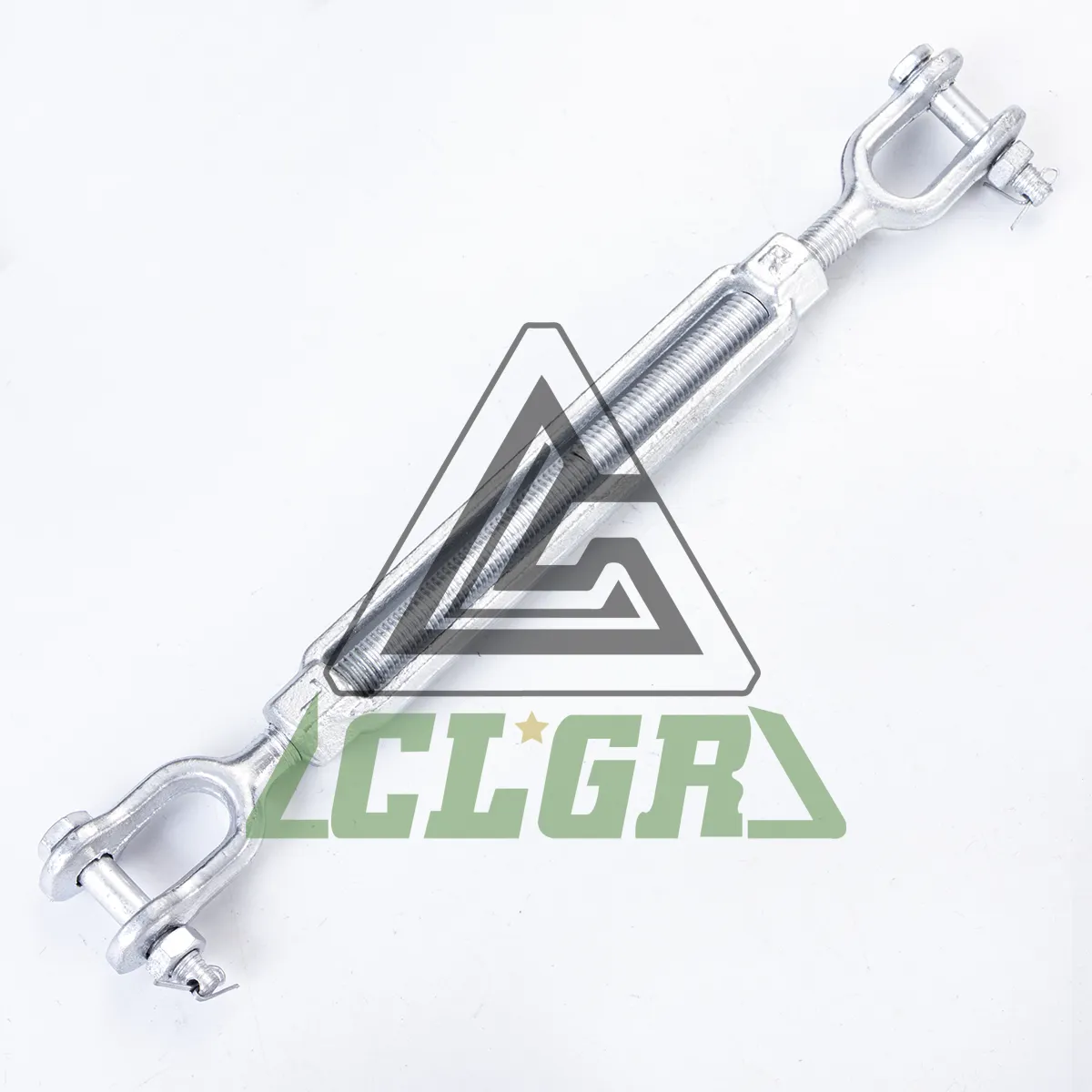

clgr galvanized jaw jaw turnbuckle lhg 228 us type china supplier

 

Overview of CLGR® Galvanized Jaw & Jaw Turnbuckle LHG-228 US Type

Brand	CLGR®
Origin	China
Standard	US Federal Specification ASTM F-114
Material	Superior Carbon Steel
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL
Processing	Drop Forged Machining
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4"×4", 5/16"×4 1/2", 3/8"×6", 1/2"×6", 1/2"×9", 1/2"×12" 5/8"×6", 5/8"×9", 5/8"×12", 3/4"×6",3/4"×9", 3/4"×12" 3/4"×18", 7/8"×12", 7/8"×18", 1"×6", 1"×12", 1"×18" 1"×24", 1 1/4"×12",1 1/4"×18", 1 1/4"×24", 1 1/2"×12" 1 1/2"×18", 1 1/2"×24", 1 3/4"×18", 1 3/4"×24", 2"×24" 2 1/2"×24", 2 3/4"×24"
Tips Color Code	Customized according to customers' requirements

Specifications of CLGR® Galvanized Jaw & Jaw Turnbuckle LHG-228 US Type

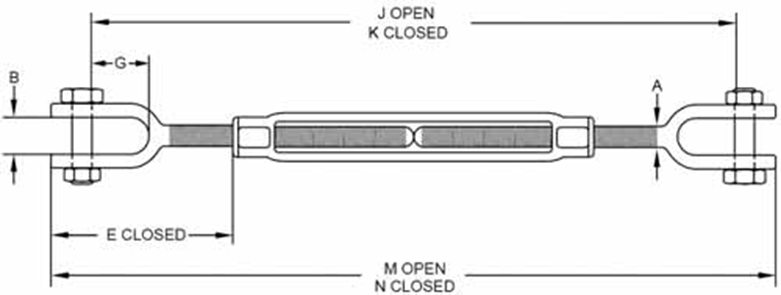

drawing-clgr-galvanized-jaw-jaw-turnbuckle-lgh-228-us-type

Part No.	Thread Dia & Take Up(in)	W.L.L. IBS	U.W IBS/pc	Dimensions


				B	E	G	J	K	M	N
				B	Closed	G	Open	Closed	Open	Closed
CRTBJJUS01	1/4×4	500	0.37	0.45	1.66	0.64	11.19	7.19	12.18	8.18
CRTBJJUS02	5/16×4 1/2	800	0.56	0.5	2.02	0.87	13.07	8.57	14.12	9.62
CRTBJJUS03	3/8×6	1200	0.85	0.53	2.11	0.85	16.25	10.25	17.5	11.5
CRTBJJUS04	1/2×6	2200	1.82	0.64	3.22	1.07	18.65	12.65	20.14	14.14
CRTBJJUS05	1/2×9	2200	2.29	0.64	3.2	1.07	24.94	15.94	26.43	17.43
CRTBJJUS06	1/2×12	2200	2.71	0.64	3.2	1.07	30.94	18.94	32.43	20.43
CRTBJJUS07	5/8×6	3500	3.21	0.79	3.9	1.32	19.74	13.74	21.82	15.82
CRTBJJUS08	5/8×9	3500	3.95	0.79	3.89	1.32	26.08	17.08	28.16	19.16
CRTBJJUS09	5/8×12	3500	4.58	0.79	3.89	1.32	32.08	20.08	34.16	22.16
CRTBJJUS10	3/4×6	5200	4.8	0.97	4.71	1.52	21.09	15.09	23.68	17.68
CRTBJJUS11	3/4×9	5200	5.85	0.97	4.68	1.52	27.49	18.49	30.08	21.08
CRTBJJUS12	3/4×12	5200	6.72	0.97	4.68	1.52	33.49	21.49	36.08	24.08
CRTBJJUS13	3/4×18	5200	8.45	0.97	4.71	1.52	45.49	27.49	48.08	30.08
CRTBJJUS14	7/8×12	7200	9.37	1.16	5.5	1.77	34.65	22.65	37.62	25.62
CRTBJJUS15	7/8×18	7200	11.8	1.16	5.5	1.77	47.12	29.12	50.09	32.09
CRTBJJUS16	1×6	10000	10.4	1.34	6.09	2.05	23.82	17.82	27.18	21.18
CRTBJJUS17	1×12	10000	13.8	1.34	6.09	2.05	35.82	23.82	39.18	27.18
CRTBJJUS18	1×18	10000	17.1	1.34	6.09	2.05	47.82	29.82	51.18	33.18
CRTBJJUS19	1×24	10000	21	1.34	6.06	2.05	60.42	36.42	63.78	39.78
CRTBJJUS20	11/4×12	15200	21.9	1.84	8.09	2.82	39.37	27.37	43.58	31.58
CRTBJJUS21	11/4×18	15200	25.9	1.84	8.09	2.82	51.37	33.37	55.58	37.58
CRTBJJUS22	11/4×24	15200	29.8	1.84	8.09	2.82	63.93	39.93	68.14	44.14
CRTBJJUS23	11/2×12	21400	32.6	2.06	8.93	2.81	40.76	28.76	45.68	33.68
CRTBJJUS24	11/2×18	21400	38	2.06	8.93	2.81	52.76	34.76	57.68	39.68
CRTBJJUS25	11/2×24	21400	43.5	2.06	8.93	2.81	65.38	41.38	70.3	46.3
CRTBJJUS26	13/4×18	28000	53.5	2.6	9.36	3.35	53.35	35.35	59.16	41.16
CRTBJJUS27	13/4×24	28000	61.1	2.6	9.36	3.35	65.35	41.35	71.16	47.16
CRTBJJUS28	2×24	37000	96.3	2.62	11.8	3.74	69.64	45.64	76.72	52.72
CRTBJJUS29	2 1/2×24	60000	167	3.06	13.26	4.44	72.97	48.97	82.18	58.18
CRTBJJUS30	2 3/4×24	75000	199	3.69	14.92	4.19	74.75	50.75	85.5	61.5
