CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Eye

Name: CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Eye
Brand: CLGR®

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Eye, also known as Malleable Single Wheel Pulley Block, Eye Single Sheave Pulley Sheave, Swivel Oval Eye Pulley Block.

Galvanised Malleable Iron Pulley Block comes with a swivel oval eye and a galvanized body. It has a plain bore design with a grey iron wheel and a hot-dipped galvanized finish.

Made for fiber rope, it is marked with CE, size, and W.L.L. Certification is available upon request.

To Get A Quote >

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Eye

Overview of Galvanised Malleable Iron Pulley Block Single Sheave with Eye

Brand	CLGR®
Type	Galvanised Malleable Iron Pulley Block Single Sheave with Eye
Material	Malleable Iron
Surface Finished	Hot dipped galvanized finish
Size	0.5 Ton, 1 Ton, 2 Ton, 3.2 Ton, 5 Ton
Origin	China

Specifications of Galvanised Malleable Iron Pulley Block Single Sheave with Eye

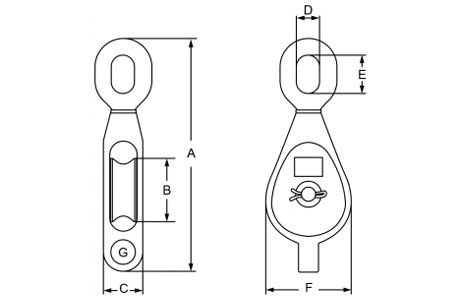

drawing-of-galvanised-malleable-iron-pulley-block-single-sheave-with-eye-china-supplier

Part No.	Size	Safe Working Load	A	B	C	D	E	F	G
CRMISOSB03	3″	0.2 Ton	172mm	42mm	30mm	12mm	22.5mm	58mm	15.5mm
CRMISOSB04	4″	0.4 Ton	230mm	57.5mm	35mm	17.5mm	35.5mm	78mm	21.5mm
CRMISOSB06	6″	1 Ton	345mm	100mm	49mm	27mm	52.5mm	116.5mm	33mm
CRMISOSB09	9″	1.8 Ton	485mm	175mm	64mm	40.5mm	69mm	200mm	36mm
