CLGR® Closed Type Pulley Block Single Sheave With Hook 7411

Name: CLGR® Closed Type Pulley Block Single Sheave With Hook 7411
Brand: CLGR®

CLGR® Closed Type Pulley Block with Eye Single Sheave 7411, also known as Close Type Single Sheave Pulley, Single Sheave Pulley Close Type Eye Hook.

Finish options include painted or hot dip galvanized for corrosion protection.

The closed design keeps the rope securely in the sheave groove during operation. Hook attachment is used for quick attachment and removal without tools or extra shackles.

Available in various sizes: 2'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12''.

Working load limits: 0.25t, 0.5t, 1t, 1.5t, 2t, 3t, 4t, 5t, 6t.

To Get A Quote >

CLGR® Closed Type Pulley Block Single Sheave With Hook 7411 China ,Manufacturer

CLGR® Closed Type Pulley Block Single Sheave With Hook 7411 China Supplier

CLGR® Closed Type Pulley Block Single Sheave With Hook 7411 China Factory

Overview of CLGR® Closed Type Pulley Block Single Sheave With Hook 7411

Brand	China CLGR®
Type	Single Sheave Snatch Block 7411
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Closed Type Pulley Block Single Sheave With Hook 7411

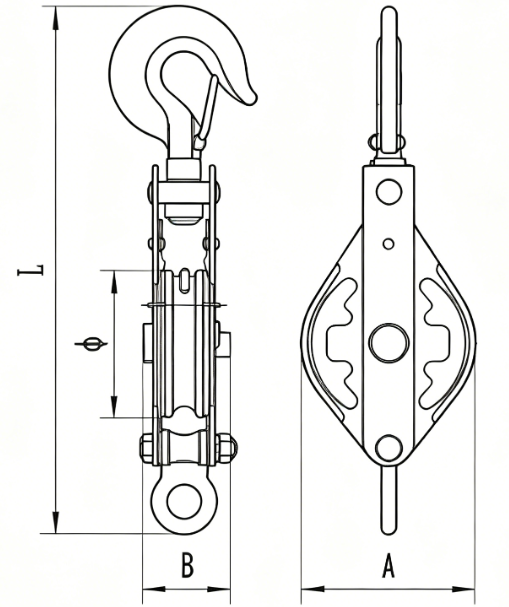

drawing-of-clgr®-closed-type-pulley-block-single-sheave-with-hook-7411-china-manufacturer

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7411H-2	2″	0.25	6mm	50	195	58	42	11	0.65
CR7411H-3	3″	0.5	8mm	71	294	88	57	10	1.4
CR7411H-4	4″	1	10mm	96	348	112	63	15	2.65
CR7411H-5	5″	1.5	13mm	121	402	140	68	17	4.2
CR7411H-6	6″	2	16mm	148	480	164	76	20	6.2
CR7411H-7	7″	3	19mm	173	547	196	84	22	9.3
CR7411H-8	8″	4	22mm	200	576	220	89	26	11.5
CR7411H-10	10″	5	25mm	250	683	272	89	28	16.5
CR7411H-12	12″	6	28mm	300	755	320	95	28	25
