CLGR® JIS Ship Wooden Block With Shackle Triple Sheave

Name: CLGR® JIS Ship Wooden Block With Shackle Triple Sheave
Brand: CLGR®

CLGR® JIS Ship Wooden Block With Shackle Triple Sheave, also known as JIS Wooden Block With Shackle.

Made of high quality wood and fitted with a hot-dip galvanized steel shackle, this wooden block with shackle minimizes line chafing while providing a smooth 180° rope redirection.

It is designed to work in conjunction with ropes, providing mechanical advantage and changing the direction of force. This allows crew members to handle heavy loads with less effort.

To Get A Quote >

Overview of CLGR® JIS Ship Wooden Block With Shackle Triple Sheave

Brand	China CLGR®
Material	Carbon steel/Wood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	140inch,180inch, 200inch, 220inch, 240inch
Sheave	Triple Sheave

Specification of CLGR® JIS Ship Wooden Block With Shackle Triple Sheave

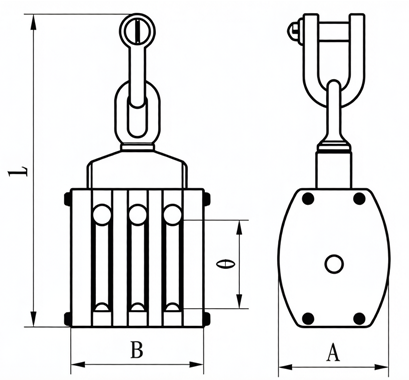

Drawing of CLGR® JIS Ship Wooden Block With Shackle Triple Sheave

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	Weight(KG)
CRWBSTS-1	200mm	1.8	20mm	130	453	160	191	12.25
CRWBSTS-2	220mm	2.1	22mm	143	475	176	211	16.24
CRWBSTS-3	240mm	2.5	24mm	156	523	192	225	20.65
