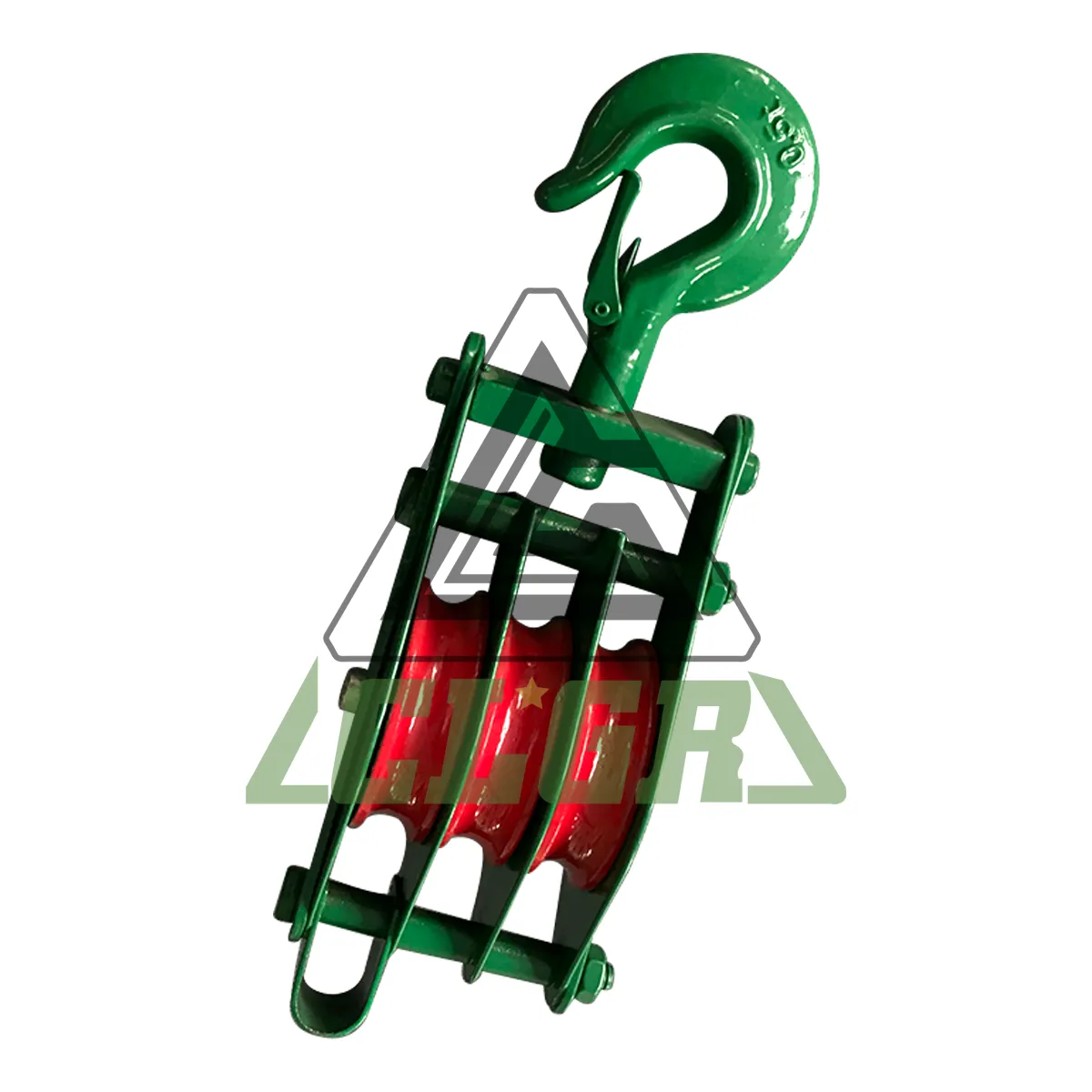

CLGR® Snatch Block Pulley with Hook Triple Wheel

Name: CLGR® Snatch Block Pulley with Hook Triple Wheel
Brand: CLGR®

CLGR® Snatch Block Pulley with Hook Triple Wheel, also known as Pulley Block With Hook, and Triple Pulley Block Snatch With Hook.

This snatch block triple sheave features a hook for easy attachment. It allows rope or wire rope to pass through three wheels, effectively maximizing the use of the crane in lifting loads.

The sheave system minimizes friction to ensure smooth, controlled conductor installation, which is essential for preventing cable damage.

Designed for smooth operation and reliable lifting.

To Get A Quote >

Overview of CLGR® Snatch Block Pulley with Hook Triple Wheel

Brand	China CLGR®
Type	7013
Material	Carbon Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Sheaves	Triple Wheel

Specifications of CLGR® Snatch Block Pulley with Hook Triple Wheel

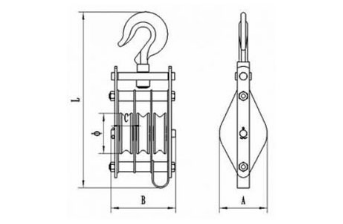

drawing-of-clgr®-snatch-pulley-block-with-hook-triple-wheel-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7013H-2	2″	0.25	6mm	49	217	58	73	11	1.1
CR7013H-3	3″	0.5	8mm	70.5	277	81	89	13	2.36
CR7013H-4	4″	1	10mm	97	325	112	102	16	4.2
CR7013H-5	5″	1.5	13mm	125	400	140	113	17	6.15
CR7013H-6	6″	2	16mm	146	450	168	144	22	9.2
CR7013H-7	7″	3	19mm	173	505	186	168	25	16.5
CR7013H-8	8″	4	22mm	200	535	212	168	26	20
CR7013H-10	10″	5	25mm	250	611	276	180	28	42.5
CR7013H-12	12″	6	28mm	300	661	326	180	28	68
