CLGR® Plain Pulley Block

Name: CLGR® Plain Pulley Block
Brand: CLGR®

CLGR® Plain Pulley Block is also referred to as wire rope blocks or cable pulley blocks, these units are designed to guide wire rope smoothly, change the direction of force, and reduce friction in lifting systems.

With a durable powder-coated finish, these cable blocks offer excellent corrosion resistance and long service life in demanding environments.

The wire rope sheave is precision-machined to ensure smooth rotation and minimal wear on the rope, extending the service life of both the sheave and the wire rope.

To Get A Quote >

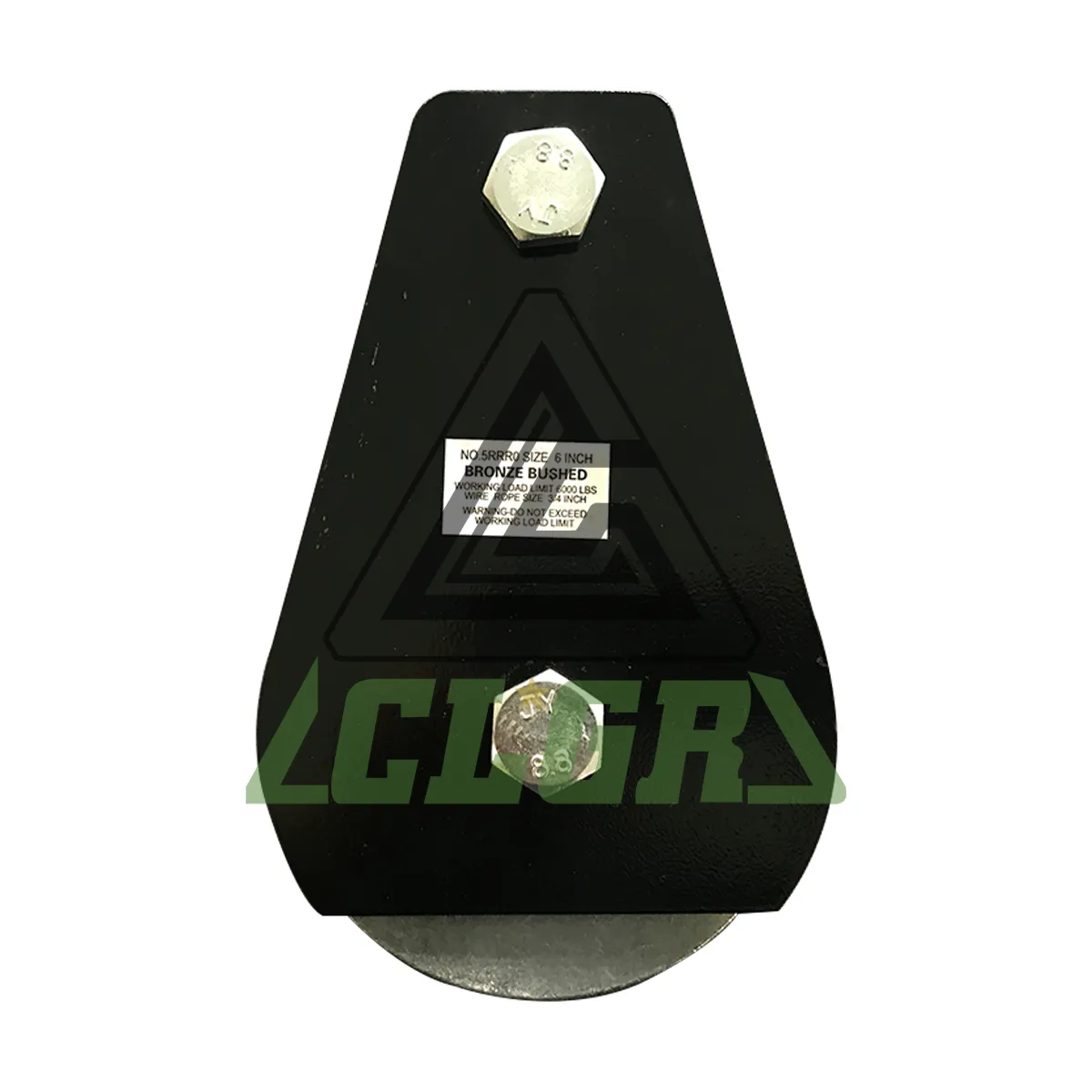

clgr wire rope blocks steel pulley for lifing

Overview of CLGR® Plain Pulley Block

Brand	China CLGR®
Type	Plain Pulley Block
Size	2″, 3″, 4″, 6″
WLL	1000lbs, 2000lbs, 3000lbs, 6000lbs
Surface Finished	Galvanized
Origin	China

Specifications of CLGR® Plain Pulley Block

No.	Size	W.L.L	Dia of Rope	Net Weight
No.	in	lbs	in	kgs
CR19301	2″	1000	7/32	0.35
CR19302	3″	2000	5/16	0.86
CR19303	4″	3000	3/8	2.3
CR19304	6″	6000	3/4	6.32
