CLGR® Snatch Block Pulley with Hook Double Wheel

Name: CLGR® Snatch Block Pulley with Hook Double Wheel
Brand: CLGR®

CLGR® Snatch Block Pulley with Hook Double Wheel, also known as Pulley Eye With Double Sheave, Double Pulley Sheave Block With Hook, and Double Snatch Block.

This snatch block double sheave features a Hook for easy attachment. It allows rope or wire rope to pass through two wheels, effectively doubling pulling power or changing direction.

The sheave system minimizes friction to ensure smooth, controlled conductor installation, which is essential for preventing cable damage.

To Get A Quote >

CLGR® Snatch Block Pulley with Hook Double Wheel

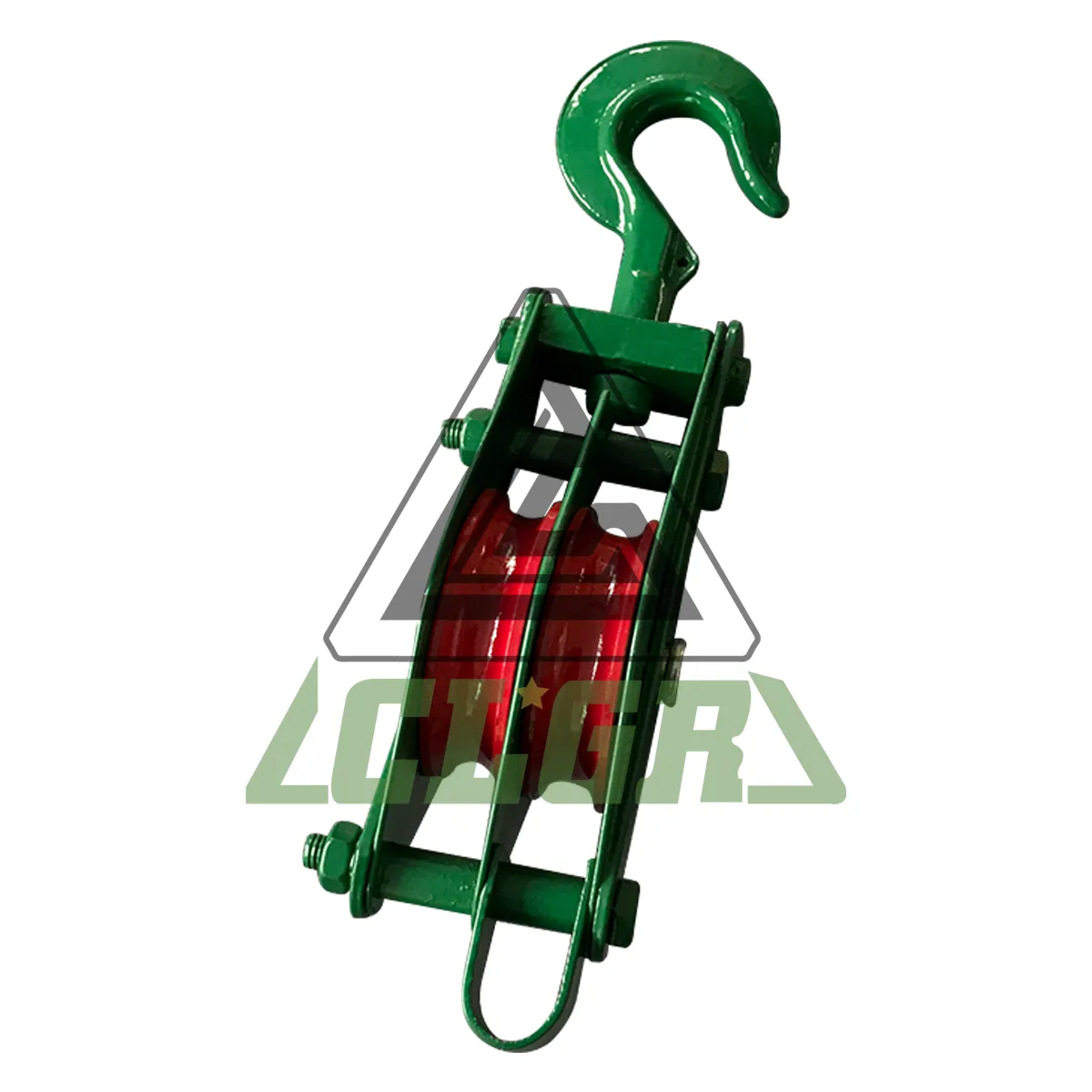

CLGR® Snatch Block Pulley with Hook Double Wheel China Supplier

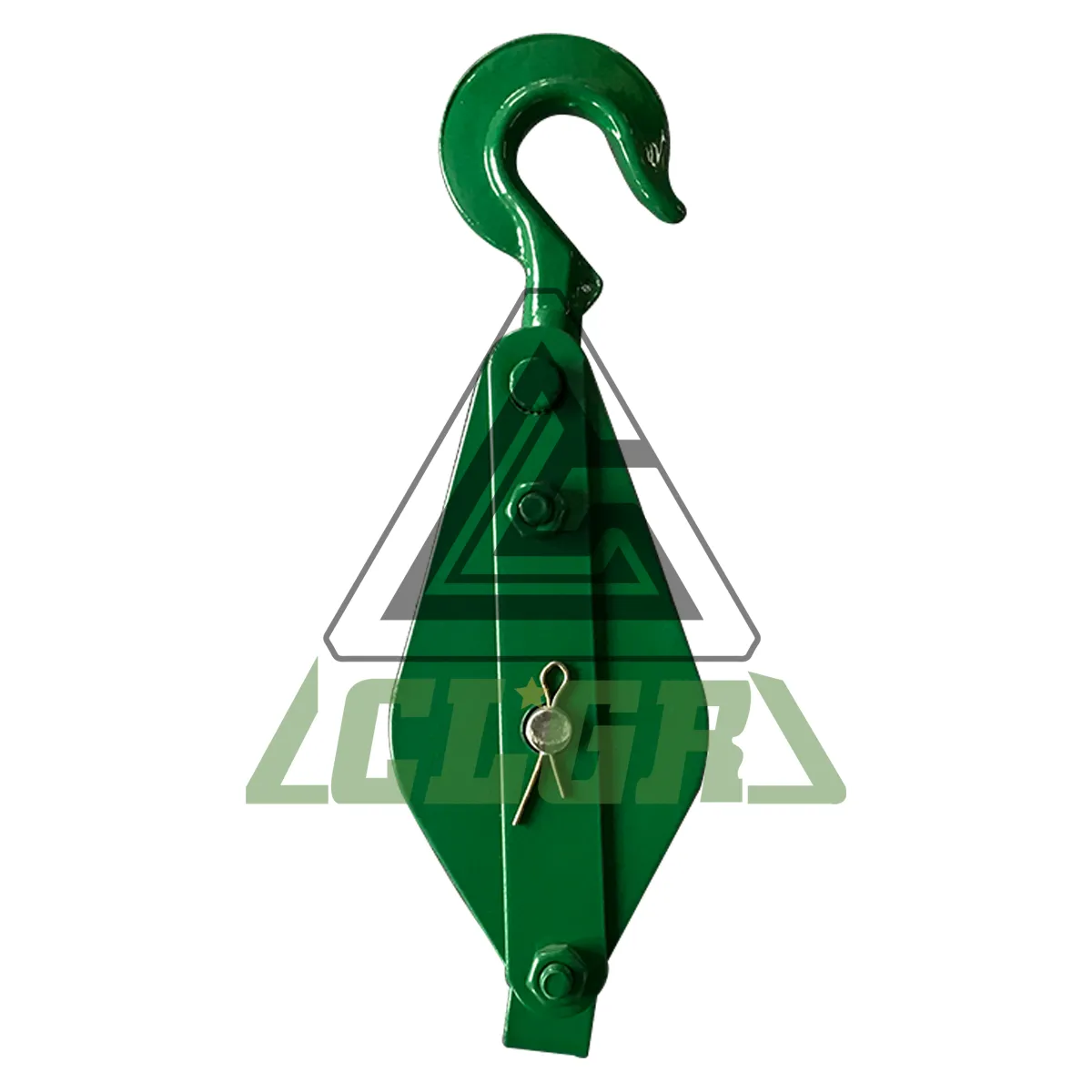

CLGR® Snatch Block Pulley with Hook Double Wheel China Manufacturer

Overview of CLGR® Snatch Block Pulley with Hook Double Wheel

Brand	CLGR®
Type	7012
Material	Super Mild Steel
Processing	Drop Forged
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Sheaves	Double Sheaves

Specifications of CLGR® Snatch Block Pulley with Hook Double Wheel

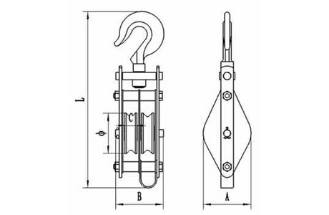

drawing-of-clgr®-snatch-pulley-block-with-hook-double-wheel-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7012H-2	2″	0.25	6mm	49	217	58	52.5	11	0.75
CR7012H-3	3″	0.5	8mm	70.5	277	81	68.5	13	1.8
CR7012H-4	4″	1	10mm	97	325	112	79.5	16	3
CR7012H-5	5″	1.5	13mm	125	400	140	87	17	4.7
CR7012H-6	6″	2	16mm	146	450	168	114	22	7
CR7012H-7	7″	3	19mm	173	505	186	128	25	12.7
CR7012H-8	8″	4	22mm	200	535	212	128.5	26	16
CR7012H-10	10″	5	25mm	250	611	276	133	28	31
CR7012H-12	12″	6	28mm	300	661	326	133	28	42
