CLGR® Closed Type Pulley Block Single Sheave With Hook 7511

Name: CLGR® Closed Type Pulley Block Single Sheave With Hook 7511
Brand: CLGR®

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511, also known as Close Type Single Sheave Pulley, Single Sheave Pulley Close Type Eye Hook.

It consists of 1 sheave and fitting with hook,eye, or shackle, and there are snatch(open) or closed type options, the closed design keeps the rope securely in the sheave groove during operation.

Finish options include painted or hot dip galvanized for corrosion protection.

Available in various sizes: 2'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12''.

Working load limits: 0.25t, 0.5t, 1t, 1.5t, 2t, 3t, 4t, 5t, 6t.

To Get A Quote >

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511 China

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511 China Supplier

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511 China Manufacturer

CLGR® Closed Type Pulley Block Single Sheave With Hook 7511 China Factory

 

Overview of CLGR® Closed Type Pulley Block Single Sheave With Hook 7511

Brand	China CLGR®
Type	Single Sheave Block 7413
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Closed Type Pulley Block Single Sheave With Hook 7511

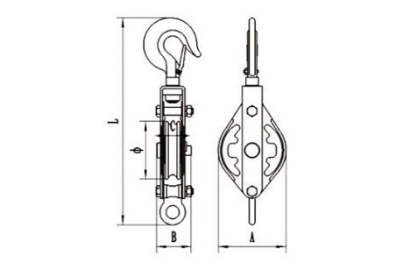

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight(KG)
CR7511H-2	2″	0.25	6mm	50	215	58	42	11	0.65
CR7511H-3	3″	0.5	8mm	71	300	88	57	10	1.4
CR7511H-4	4″	1	10mm	96	370	112	63	15	2.65
CR7511H-5	5″	1.5	13mm	121	415	140	68	17	4.2
CR7511H-6	6″	2	16mm	148	492	164	76	20	6.2
CR7511H-7	7″	3	19mm	173	560	196	84	22	9.3
CR7511H-8	8″	4	22mm	200	593	220	89	26	11.5
CR7511H-10	10″	5	25mm	250	703	272	89	28	16.5
CR7511H-12	12″	6	28mm	300	773	320	95	28	25
