CLGR® Steel Swivel with Tapered Roller Thrust Bearing Greaseable is a trawling swivel designed for commercial fishing and marine applications requiring smooth rotation under high loads. Its robust steel construction and tapered roller thrust bearing provide reliable performance while helping reduce twisting and torsional stress in connected fishing gear.
The greaseable bearing system allows easy lubrication and routine maintenance, supporting smooth rotation and extended service life in demanding marine environments. The swivel is suitable for trawling systems, commercial fishing gear and other heavy-duty fishing applications where controlled rotation and reliable load handling are required.
Available in different sizes and configurations, the swivel can be customized or supplied with other connecting and suspension components according to specific application requirements.
Brand | CLGR® |
Product | Swivels Steel - Tapered roller thrust bearing - Greaseable |
Material | Alloy Steel |
Processing | Quenched and Tempered |
Size | 7/8mm,10mm,13mm,16mm,18/20mm |
Fittings | Steel Bushing Pin and Steel Bushing |
Note | Connector not included |
Country of Origin | China |

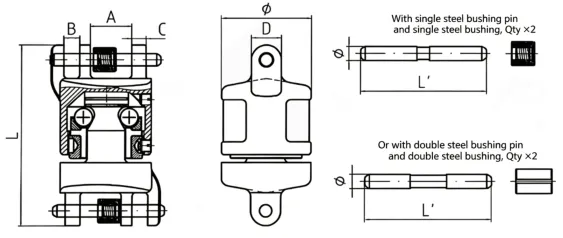

Part NO. | Size | WEIGHT/KG | WLL/T | BF/T | A | B | C | D | φ | L | φ' | L' |
CR8SSTRTB7/8 | 7/8-8 | 0.61 | 2 | 8 | 20.5±0.5 | 7.9±0.5 | 7.2±0.5 | 15±0.5 | 45±1 | 91±3 | 6 | 54.5 |
CR8SSTRTB10 | 10-8 | 1.2 | 3.15 | 12.6 | 28±0.5 | 9.5±0.5 | 8.5±0.5 | 18±0.5 | 58±1 | 113±3 | 7.8 | 69 |
CR8SSTRTB13 | 13-8 | 2.5 | 5.3 | 21.2 | 30±1 | 13±0.5 | 12±0.5 | 24±1 | 76±2 | 148±3 | 10 | 82.5 |
CR8SSTRTB16 | 16-8 | 4.4 | 8 | 32 | 36.3±1 | 16.5±0.5 | 15.5±0.5 | 30±1 | 90±2 | 171±4 | 12 | 101.5 |
CR8SSTRTB18/20 | 18/20-8 | 6.8 | 12.5 | 50 | 44±1 | 18.5±0.8 | 17.2±0.8 | 37±1 | 104±2 | 196±5 | 15 | 116.5 |
