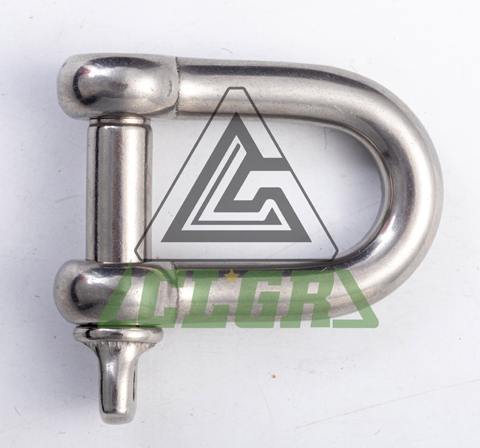

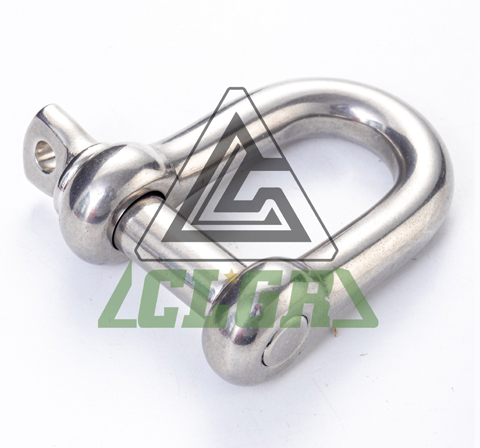

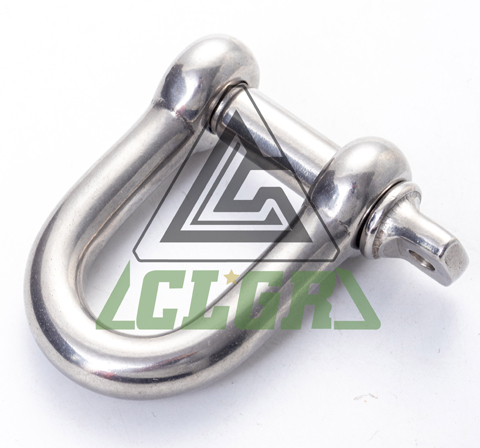

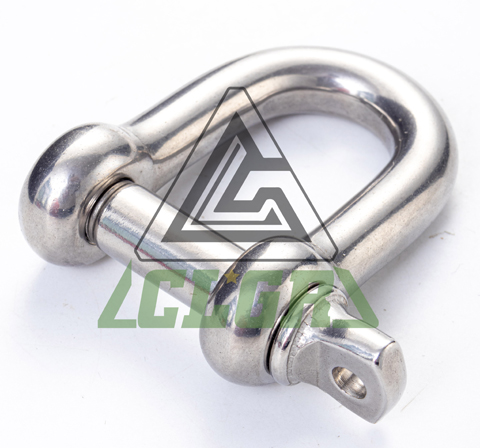

CLGR® Stainless Steel D Shackle Screw Pin is also called Dee Shackle with Screw Pin and Chain Shackle with Screw Pin.
D Shackle Screw Pin is made of marine grade 316 stainless steel with polished surface. It has excellent corrosion resistance even in the harshest marine environments. Typical applications for the Stainless-Steel Dee Shackle are offshore towing, industrial rigging and construction projects. CLGR® Stainless Steel Chain Shackle is forged for extreme strength and durability, and is easy to install and remove.
CLGR®, one of the professional shackles manufacturers, offers sizes from 4mm to 38 mm, special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm,38mm |
| Standard | European Type |
| Material | Stainless Steel grade 304 or 316 |
| Surface Finish | Highly Polishing, Electrophoretic Coating |
| Processing | Forged, Stamping |
| Important Note | Not suitable for lifting applications |
Part No. | Size | D | C | A | B | MBL |
mm | KN | |||||
CRSSDSSHP04 | 4 | 16 | 8 | 4 | 4 | 5.8 |
CRSSDSSHP05 | 5 | 20 | 10 | 5 | 5 | 9.1 |
CRSSDSSHP06 | 6 | 24 | 12 | 6 | 6 | 13.2 |
CRSSDSSHP08 | 8 | 32 | 16 | 8 | 8 | 23.7 |
CRSSDSSHP10 | 10 | 40 | 20 | 10 | 10 | 37.3 |
CRSSDSSHP12 | 12 | 48 | 24 | 12 | 12 | 54.9 |
CRSSDSSHP14 | 14 | 56 | 28 | 14 | 14 | 74.8 |
CRSSDSSHP16 | 16 | 64 | 32 | 16 | 16 | 97.7 |
CRSSDSSHP18 | 18 | 72 | 36 | 18 | 18 | 136.1 |
CRSSDSSHP20 | 20 | 76 | 40 | 20 | 20 | – |
CRSSDSSHP22 | 22 | 88 | 44 | 22 | 22 | 184.7 |
CRSSDSSHP25 | 25 | 100 | 50 | 25 | 25 | – |
CRSSDSSHP28 | 28 | 112 | 56 | 28 | 28 | 223.8 |
CRSSDSSHP32 | 32 | 128 | 64 | 32 | 32 | 353.6 |
CRSSDSSHP36 | 36 | 144 | 72 | 36 | 36 | – |
CRSSDSSHP38 | 38 | 152 | 76 | 38 | 38 | – |
