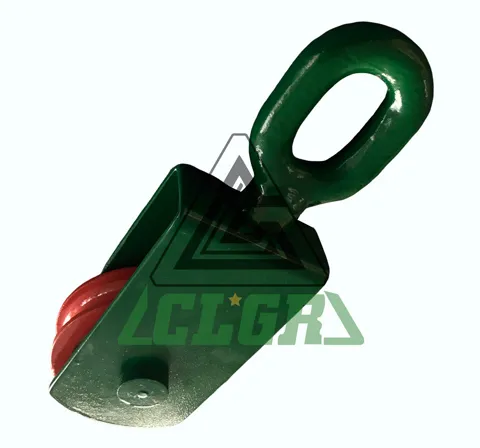

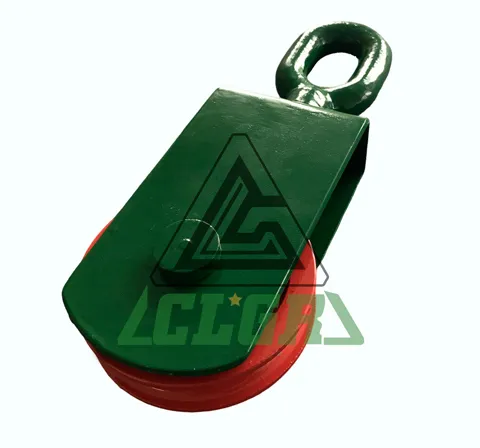

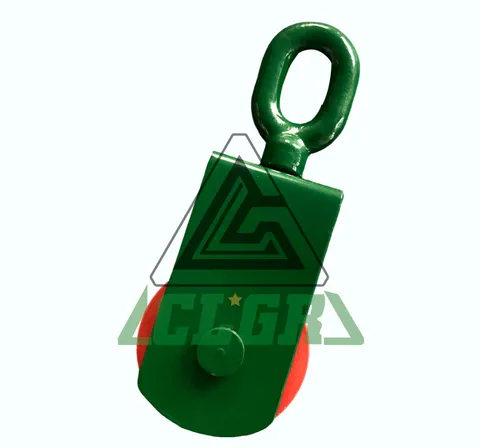

CLGR® Closed Trawl Block with Oval Eye

Name: CLGR® Closed Trawl Block with Oval Eye
Brand: CLGR®

CLGR® Enclosed Trawl Block with Oval Eye is made of carbon steel and features a hot-dip galvanized finish, ensuring enhanced corrosion resistance.

This trawl block facilitates slight rotation when lifting loads, adapting to application needs effectively. This trawl block is compatible with fibrous, nylon, or wire ropes, offering versatile use across different scenarios.

Notably, the oval eye is fixed to the pulley block and does not swivel, providing stable connection during operation.

The CLGR® Enclosed Trawl Block with Oval Eye is usable for offshore, maritime, construction and commercial fishing.

For this enclosed trawl block, size options of 2″, 3″, and 4″ are available for your selection.

Explore our collection of high-performance marine pulleys and blocks for your maritime and industrial applications.

To Get A Quote >

clgr closed trawl block with oval eye in china

clgr closed trawl block with oval eye china

clgr closed trawl block with oval eye factory

clgr closed trawl block with oval eye suppliers

 

Overview of CLGR® Closed Trawl Block with Oval Eye

Brand	CLGR®
Material	Super Carbon Steel
Surface Finished	Hot Dip Galvanized
Size	2″, 3″, 4″
Origin	China
Note	Do not exceed working load limit (WLL).

Specifications of CLGR® Closed Trawl Block with Oval Eye

Part No.	Size	W.L.L	Dia of Rope	Net Weight
Part No.	in	ton	mm	kg
CRCTB02	2″	0.25	8	0.4
CRCTB03	3″	0.5	8	1.25
CRCTB04	4″	1	10	2.25
