CLGR® Regular Wood Block with Shackle Single Wheel/Sheave

Name: CLGR® Regular Wood Block with Shackle Single Wheel/Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Shackle Single Wheel/Sheave, also known as Single Regular Wood Shell Block with Shackle and Regular Wood Shell Block Single Sheave.

The Regular Wood Block can change the direction of the traction cable of the pulley and the pulley block and lift or move the moving object many times.

The shells are varnished wood for a traditional look.

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

To Get A Quote >

CLGR® Regular Wood Block with Shackle Single Wheel Sheave Company

Overview of CLGR® Regular Wood Block with Shackle Single Wheel/Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Single Sheave
Designed for Use With	Rope
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Shackle Single Wheel/Sheave

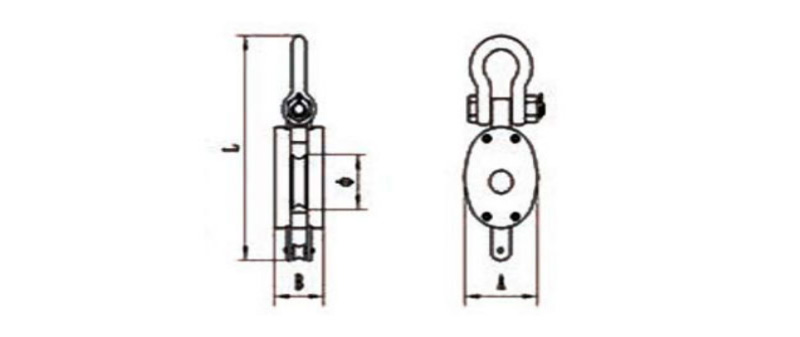

CLGR® Regular Wood Block with Shackle Single Wheel Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBS-001	3″	500	3/8″	45	195	61.5	44.5	0.55
CRWBS-002	4″	1000	1/2″	57	243	77	51.5	0.9
CRWBS-003	5″	1200	5/8″	76	289	99	64	1.9
CRWBS-004	6″	1800	3/4″	90	332	118	73.5	2.75
CRWBS-005	8″	2800	1″	121	438	138	78	6.1
CRWBS-006	10″	5000	11/8″	158	500	190	104	8.35
CRWBS-007	12″	6800	11/4″	196	564	246	111	12.6

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
