CLGR® Hydraulic Power Block 29 inch for Purse Seine / For Trawler

Name: CLGR® Hydraulic Power Block 29 inch for Purse Seine / For Trawler
Brand: CLGR®

CLGR® Hydraulic Power Block 29 inch for Purse Seine / For Trawler, also called Fishing Boat Power Block, Power Block and Net Hauler, which is used to haul Purse Seine Nets for Faster Hauling, Quicker Turn Around and Reduced Manual Work. This 29 inch size has three styles, old type and Easy Open/Side Open Type, and 2015 type.

Designed for purse seining, this equipment features a hydraulically driven system that enables seamless, infinite speed control. Its operational advantages, including exceptional maneuverability and reliability, are further enhanced by the use of high-strength, lightweight, and corrosion-resistant aluminum alloy for key structural components.

To Get A Quote >

Overview of CLGR® Hydraulic Power Block 29 inch for Purse Seine / For Trawler

Brand	CLGR®
Type	2015	Easy Open/Side Open Type	Old Type
Model	BTW1-29-2015	BTW1-29AEC	BTW1-29
Material	High-Quality Aluminum Alloy	High-Quality Aluminum Alloy	High-Quality Aluminum Alloy
Size	29inch	29inch	29inch
Hydraulic System Flow	110L/min	-	-
Rated Working Pressure	18Mpa	-	-
Line Speed 1/2 Sheave	65m/min	62.53m/min	60m/min
Line Pull 1/2 Sheave	3000kg	2146kgs	2100kgs
Sheave Diameter	736mm	736mm	736mm
Weight	-	225kgs	225kgs
Application	Purse Seine Fishing

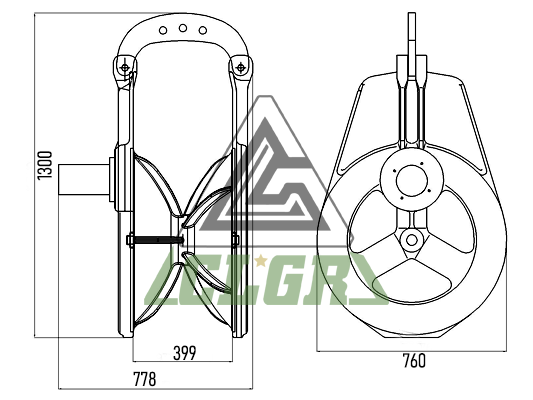

Specifications of CLGR® Hydraulic Power Block 29 inch for Purse

Explore our full range of power blocks: https://www.clgrindustrial.com/products/pulleys-blocks/

Custom solutions available. Contact us at: sales@clgrindustrial.com.
