CLGR® Welded Steel Oval Rings Painted

Name: CLGR® Welded Steel Oval Rings Painted
Brand: CLGR®

CLGR® Welded Steel Oval Rings Painted, also known as Welded Master Link, Oblong Master Links and Master Rings.

Made of superior mild steel, finished by powder coated, oblong mater links can be used with fishing nets, fishing tackle, cages and ropes and other accessories for connecting, reinforcing or adjusting the floating and sinking, need to pay attention to anti-rust and load-bearing match.

We offer forged steel oval rings in standard sizes, with the option for custom sizing to suit your requirements.

To Get A Quote >

Overview of CLGR® Welded Steel Oval Rings Painted

Brand	CLGR®
Material	Superior Mild Steel
Safety Factor	5: 1
Processing	Welded
Finish	Powder Coated
W.L.L.	1T, 1.7T, 3.2T, 4.6T, 5.8T, 7.3T, 12.7T, 13.5T, 15T
Size (Dia.)	12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 35mm, 38mm
Color	Red or OEM

Specifications of CLGR® Welded Steel Oval Rings Painted

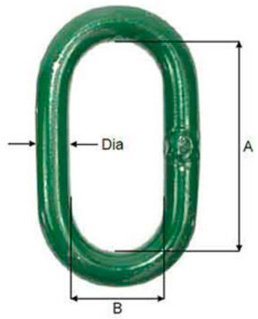

Drawing CLGR® Welded Steel Oval Rings Painted

Part No.	Dia. mm	WLL 5:1 ton	A mm	B mm	Weight kg
CRMLWSGR1.0T	12	1	70	30	0.2
CRMLWSGR1.7T	16	1.7	85	35	0.4
CRMLWSGR3.2T	19	3.2	110	45	0.7
CRMLWSGR4.6T	22	4.6	120	50	1.1
CRMLWSGR5.8T	25	5.8	130	50	1.5
CRMLWSGR7.3T	28	7.3	150	60	2.1
CRMLWSGR12.7T	32	12.7	150	60	2.8
CRMLWSGR13.5T	35	13.5	160	75	3.2
CRMLWSGR15T	38	15	150	60	4.2

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
