CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type

Name: CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type
Brand: CLGR®

CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks, also known as G80 Master Links with Sublinks, Oblong Master Link Sub-Assembly, Grade 80 Large Multi Headring and Welded Master Link Assembly.

This Quad Master Link Assembly is suitable for various uses in lifting when used on chains. These high-quality enlarged Quad Master Links are designed for the lifting gear industry, primarily used in 3 & 4-leg chain sling assemblies.

Available in sizes ranging from 7-26mm (customized sharps and sizes also), it maintains a safety factor of 4:1 to ensure reliable performance under heavy loads.

To Get A Quote >

clgr grade 80 quad master link assembly with enlarged sublinks european type in china

CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type Manufacturer

CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type Supplier

Overview of CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type

Brand	CLGR®
Size	7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm
Material	Super Alloy Steel
Standard	European Type (EN1677-4 / DIN5688-3)
Safety Factor	4: 1
Processing	8-CR-MLA-E-7 to 8-CR-MLA-E-16 ⇒ Main link: WELDED; Sub links: WELDED, flat on request. 8-CR-MLA-E-20 to 8-CR-MLA-E-26 ⇒ Main link: FORGED; Sub links: WELDED, no pressing flat. Quenched and Tempered
Surface Finish	Powder Coated
Note	Never Exceed Rated Capacity; Color code can be customized

Specifications of CLGR® Grade 80 Quad Master Link Assembly with Enlarged Sublinks European Type

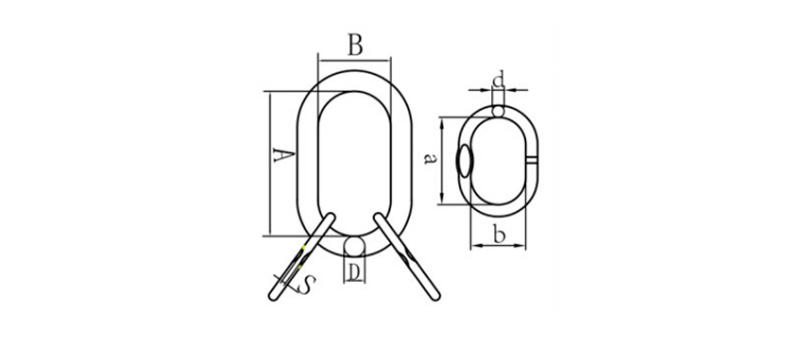

drawing-of-clgr®-grade-80-quad-master-link-assembly-with-enlarged-sublinks-european-type

Part NO.	G80 EN818-2 CHAIN	WEIGHT	WLL	DIMENSION(MM)
Part NO.	FOR 3 OR 4 LEG SLING	(KG)	(T)	A	B	D	a	b	d
8-CR-MLA-E-7	7	1.9	5.5	160	95	20	110	60	13
8-CR-MLA-E-8	8	2.82	6.65	160	95	22	140	80	16
8-CR-MLA-E-10	10	4.87	9.4	190	110	26	160	95	20
8-CR-MLA-E-13	13	9.38	14.2	230	130	32	190	110	26
8-CR-MLA-E-16	16	15.28	22.3	275	150	38	230	130	30
8-CR-MLA-E-20	20	21.78	33.5	340	180	45	230	130	32
8-CR-MLA-E-22	22	31.52	40.8	350	190	50	275	150	38
8-CR-MLA-E-26	26	48.92	60	400	200	56	340	180	45
