CLGR® Regular Wood Block Single Sheave with Swivel Hook

Name: CLGR® Regular Wood Block Single Sheave with Swivel Hook
Brand: CLGR®

CLGR® Regular Wood Block Single Sheave with Swivel Hook, also known as Regular Wood Shell Block Single Sheave, Wooden Pulley Blocks Single Sheave.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The sheaves and fittings are galvanised to protect against corrosion.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

To Get A Quote >

CLGR® Regular Wood Block Single Sheave with Swivel Hook Factory

Overview of CLGR® Regular Wood Block Single Sheave with Swivel Hook

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Hot Dipped Galvanized
Sheave	Single Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

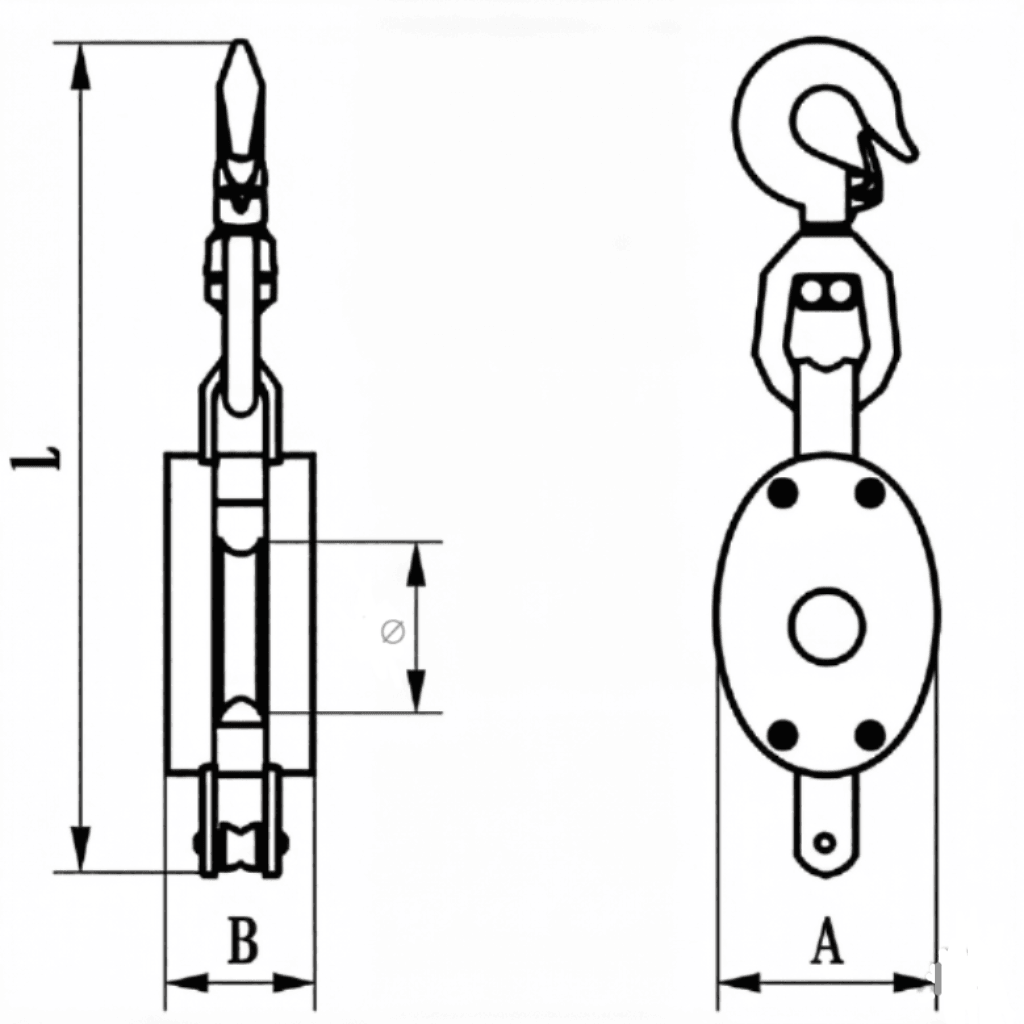

Specifications of CLGR® Regular Wood Block Single Sheave with Swivel Hook

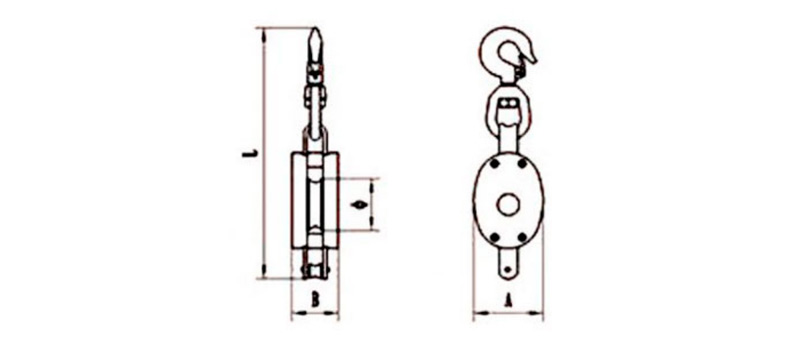

CLGR® Regular Wood Block Single Sheave with Swivel Hook Diagram

Part No.	Size	Diam	∅	L	A	B	Wight(KG)	SWL/LBS
CRWBSSH101	3″	3/8″	45	257	61.5	44.5	1.1	500
CRWBSSH102	4″	1/2″	57	288	77	51.5	1.35	1000
CRWBSSH103	5″	5/8″	76	367.5	99	64	2.3	1200
CRWBSSH104	6″	3/4″	90	420	118	73.5	3.2	1800
CRWBSSH105	8″	1″	121	514	138	78	7	2800
CRWBSSH106	10″	11/8″	158	602	190	104	12	5000
CRWBSSH107	12″	11/4″	196	717	246	111	19	6800
