CLGR® Regular Wood Block Double Sheave with Swivel Hook

Name: CLGR® Regular Wood Block Double Sheave with Swivel Hook
Brand: CLGR®

CLGR® Regular Wood Block Double Sheave with Swivel Hook, also known as Regular Wood Shell Block Double Sheave, Wooden Pulley Blocks Double Sheave.

The Regular Wood Block Double Sheave, with a wooden shell and hot-dipped galvanized steel components for corrosion protection, is suitable for offshore, maritime, construction and commercial fishing use.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

To Get A Quote >

CLGR® Regular Wood Block Double Sheave with Swivel Hook in China

Overview of CLGR® Regular Wood Block Double Sheave with Swivel Hook

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Hot Dipped Galvanized
Sheave	Double Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block Double Sheave with Swivel Hook

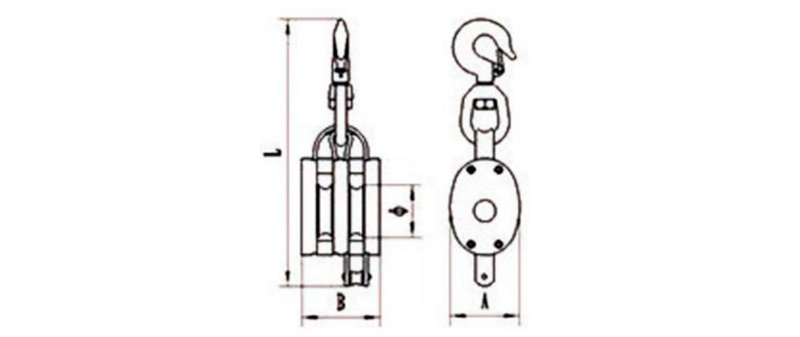

CLGR® Regular Wood Block Double Sheave with Swivel Hook Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Wight (KG)
CRWBSSH101	3″	800	3/8″	45	271	61.5	74.5	1.3
CRWBSSH102	4″	1400	1/2″	57	334	77	86	2
CRWBSSH103	5″	1800	5/8″	76	377	99	107	3
CRWBSSH104	6″	2500	3/4″	90	433.5	118	124.5	5.3
CRWBSSH105	8″	3800	1″	121	570	138	132.5	10.5
CRWBSSH106	10″	7700	11/8″	158	702	190	174	19.5
CRWBSSH107	12″	10600	11/4″	196	754	246	186	28.5
