CLGR® Regular Wood Block with Shackle Triple Wheel/Sheave

Name: CLGR® Regular Wood Block with Shackle Triple Wheel/Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Shackle Triple Wheel/Sheave, also called Triple Wood Shell Block with Shackle, Regular Wood Shell Block Triple Sheave with anchor shackle and Wooden Pulley Block with Shackle.

Regular Wood Block is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The Triple Wood Shell Block with Shackle can change the direction of the traction cable of the pulley and the pulley block and lift or move the moving object many times.

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

To Get A Quote >

CLGR® Regular Wood Block with Shackle Triple Wheel Sheave Application

Overview of CLGR® Regular Wood Block with Shackle Triple Wheel/Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Triple Sheave
Designed for Use With	Rope
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Shackle Triple Wheel/Sheave

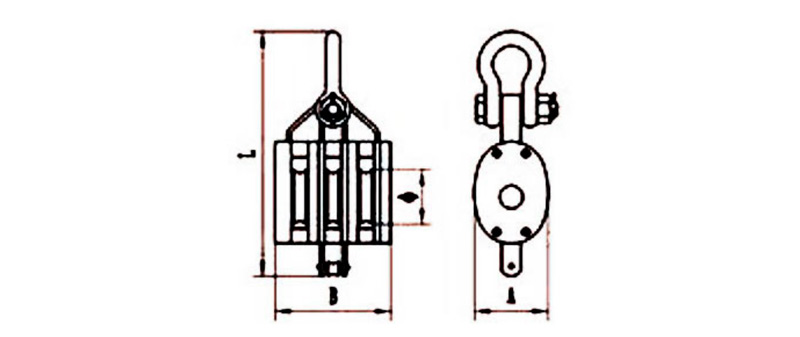

CLGR® Regular Wood Block with Shackle Triple Wheel Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSTS-03	3″	1200	3/8″	45	211.5	61.5	104.5	1.3
CRWBSTS-04	4″	1800	1/2″	57	259	77	120.5	2.25
CRWBSTS-05	5″	2400	5/8″	76	302.5	99	150	3.4
CRWBSTS-06	6″	3200	3/4″	90	350.5	118	175.5	6
CRWBSTS-08	8″	4800	1″	121	473	138	187	10
CRWBSTS-10	10″	8000	11/8″	158	555	190	244	16
CRWBSTS-12	12″	10000	11/4″	196	638	246	261	25
