CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type - The China Manufacturer Supplier, Factory

Name: CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type - The China Manufacturer Supplier, Factory
Brand: CLGR®

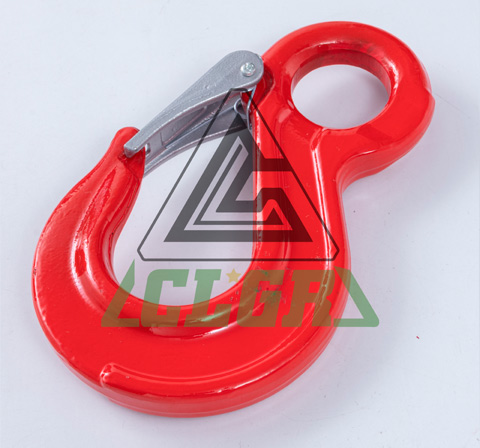

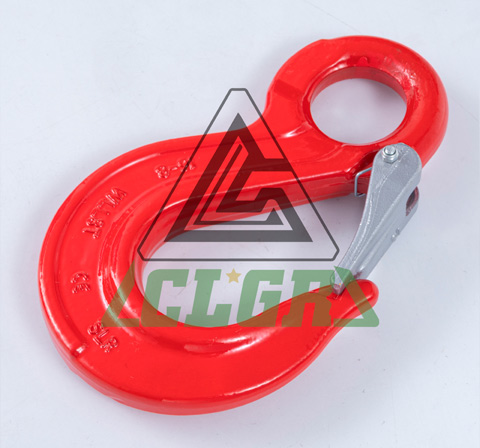

Grade 80 Eye Sling Hook with Latch, also known as Eye Sling Hook with Safety Catch and Eye Slip Hook w/Latch. It is designed for the assembly of chain slings and forged by super alloy steel and conforms to EN 1677-4.

Grade 80 alloy steel eye sling hook is equipped with spring loaded safety latch. Powder coated finish. Safety factor is 4:1.

To Get A Quote >

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Companies

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Manufacturers

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Suppliers

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Factory

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Exporter

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type China

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type for Sale

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Price

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Company

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Cost

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Wholesale Manufacturers

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Wholesale Suppliers

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Factories

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Maker

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Speed

CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type Function

 

Overview of CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, 32mm
Standard	European Type
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch: Forged / Casted / Stampe
Surface Finish	Body: Powder coated
Latch	Hot dip galvanized / Galvanized / Dacroment / Stainless steel
Important Note	Using with grade 80 alloy chain or wire rope for overhead lifting

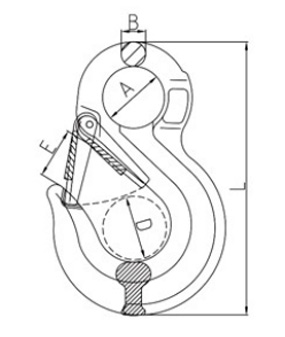

Specifications of CLGR® Grade 80 Eye Sling Hook with Safety Latch GH Type

Part No.	WEIGHT /kg	W.L.L. (T)	B.L. (T)	B±1.5	E±2	D±2	A±3	L±2
8CRESHGH06	0.3	1.12	4.48	9	24	21	20	108
8CRESHGH7/8	0.4	2	8	11	30	26	25	133
8CRESHGH10	0.9	3.15	12.6	15	34	39	38	167
8CRESHGH13	1.7	5.3	21.2	19	39	54	43	213
8CRESHGH16	3.2	8	32	23	46	64	50	255
8CRESHGH20	5.8	12.5	50	24	40	80	62	305
8CRESHGH22	8.5	15	60	32	71	80	62	348
8CRESHGH26	13	21.2	84.8	35	81	82	64	394
8CRESHGH32	17	31.5	126	37	102	112	88	480

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
