CLGR® Stainless Steel Chain Shackle Oversized Screw Pin

Name: CLGR® Stainless Steel Chain Shackle Oversized Screw Pin
Brand: CLGR®

CLGR® Stainless Steel Chain Shackle Oversized Screw Pin also known as Chain shackle with oversized screw pin, US Federal Spec shackle, Oversized screw pin shackle, Dee shackle oversized pin and Electrophoretic coating 316 stainless steel chain shackle with oversized screw pin for marine rigging.

Certified to meet U.S. Federal Specification RR-C-271F Type IVA, Grade A, Class 2 (G-210), the rated stainless steel shackles feature an oversized screw pin design for secure temporary or repeated connections in demanding applications.

Crafted from premium AISI 304/316 stainless steel through free forging, the rated stainless steel shackles offer superior corrosion resistance and durability even in harsh conditions.

The rated stainless steel shackles' D-shape design is engineered for straight-line applications, while its oversized screw pin with key hole enables quick tightening and loosening.

Finished with high polishing or electrophoretic coating, the rated stainless steel shackles provide exceptional protection in marine, industrial, and rigging environments.

Each unit of the rated stainless steel shackles is clearly marked with imperial size specifications and permanent Working Load Limit indicators.

Available in sizes from 3/16" to 1-1/2", the CLGR® rated stainless steel shackles is ideal for non-overhead lifting applications, including multi-leg slings, load rings, and wide strap connections.

To Get A Quote >

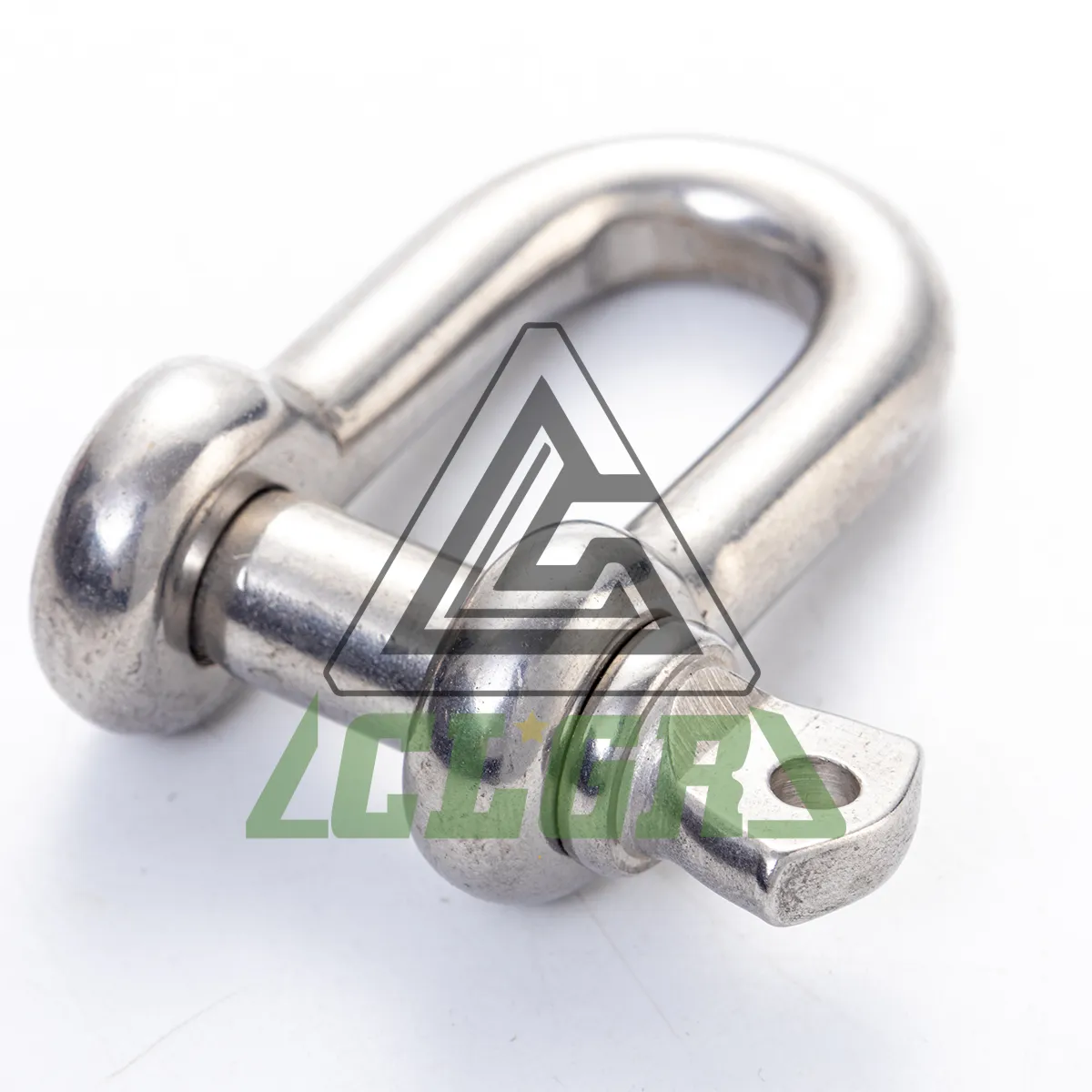

Stainless Steel Chain Shackle Oversized Screw Pin

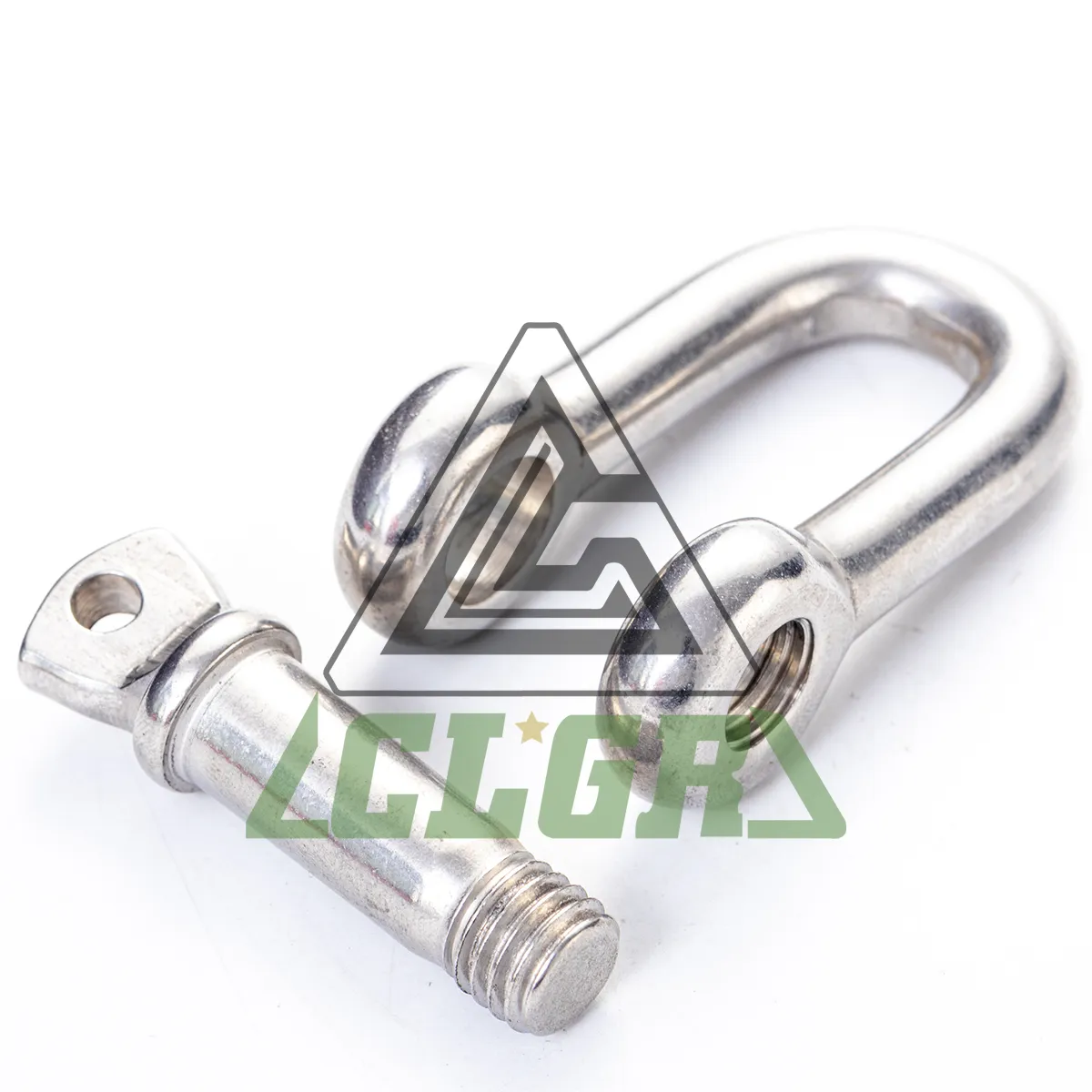

stainless steel chain shackle oversized screw pin china manufacturer

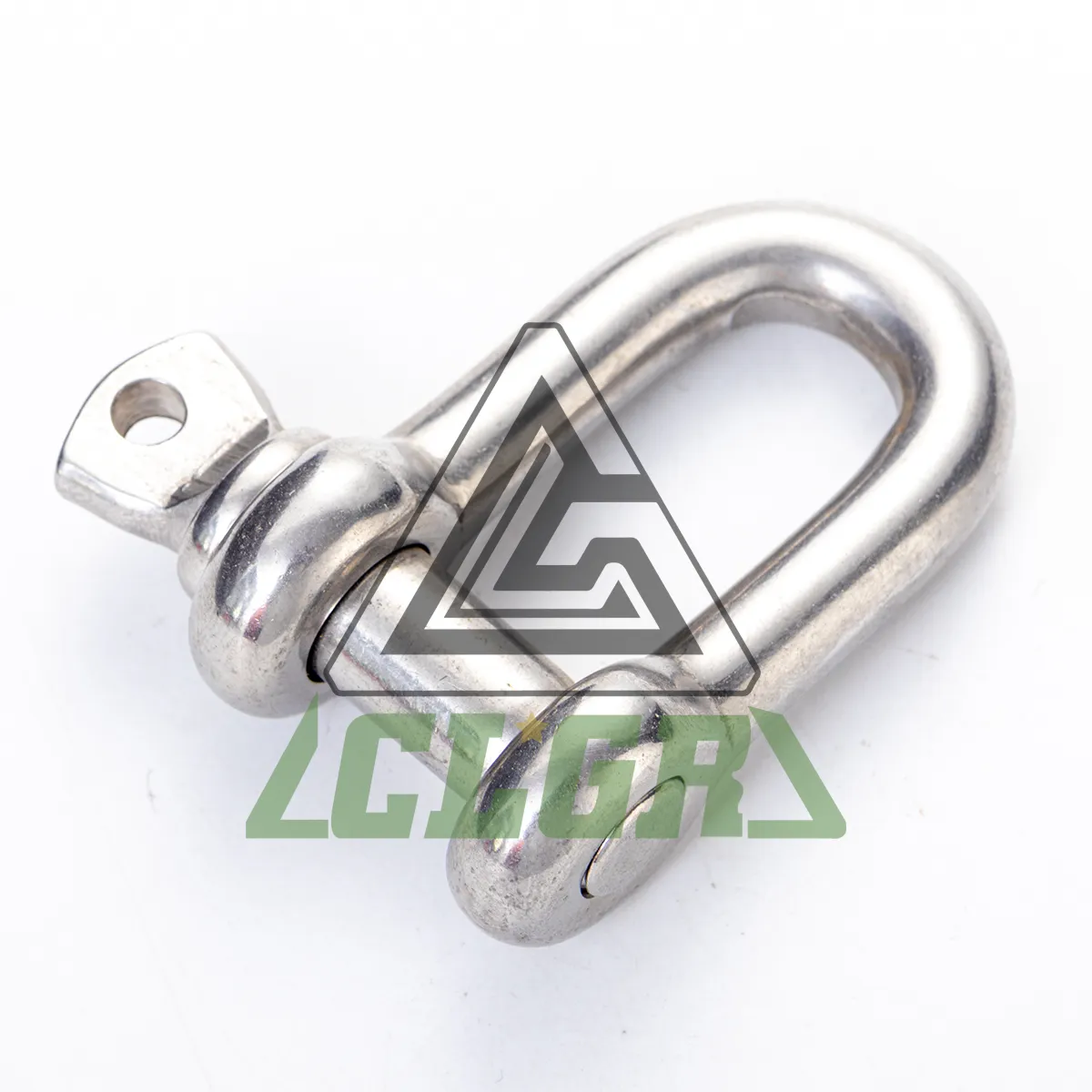

stainless steel chain shackle oversized screw pin china supplier

 

Overview of Stainless Steel Chain Shackle Oversized Screw Pin

Brand	CLGR®
Origin	China
Technical Notes	D shackle conform to U.S. Federal Specification
Material	Stainless Steel AISI 304/316 D Shackle
Processing	Free Forging
Finish	Highly polished finish
Size	3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-1/2”

Specifications of Stainless Steel Chain Shackle Oversized Screw Pin

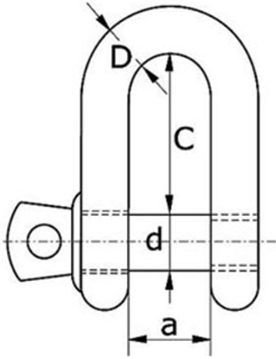

Part No.	D	d	a	C	Min.BL
Part No.	in				KN
CR-SS-210-S-3/16	3/16	1/4	0.38	0.71	13.7
CR-SS-210-S-1/4	1/4	5/16	0.47	0.88	24.4
CR-SS-210-S-5/16	5/16	3/8	0.53	1.03	38.2
CR-SS-210-S-3/8	3/8	7/16	0.66	1.25	54.9
CR-SS-210-S-7/16	7/16	1/2	0.75	1.44	54.9
CR-SS-210-S-1/2	1/2	5/8	0.81	1.63	97.7
CR-SS-210-S-5/8	5/8	3/4	1.06	2	152.6
CR-SS-210-S-3/4	3/4	7/8	1.25	2.38	184.7
CR-SS-210-S-7/8	7/8	1	1.44	2.81	219.7
CR-SS-210-S-1/1	1	1-1/8	1.69	3.19	278.1
CR-SS-210-S-1-1/8	1-1/8	1-1/4	1.81	3.58	390.7
CR-SS-210-S-1-1/4	1-1/4	1-1/2	2.03	3.94	494.4
CR-SS-210-S-1-1/2	1-1/2	1-5/8	2.38	4.81	672.9

WARNING: Remember to always tighten the shackle pin, to avoid accidental bending.
