CLGR® Grade 80 Twist Eye Choke Hook

Name: CLGR® Grade 80 Twist Eye Choke Hook
Brand: CLGR®

CLGR® Grade 80 Twist Eye Choke Hook, also known as Twist Eye Choker Hook, and G80 Eye Choke Hook.

The G80 Twist Eye Choke Hook is forged from superior alloy steel, providing a solid construction that delivers secure lashing and pulling performance. It offers excellent rust and corrosion resistance for long-term durability.

To Get A Quote >

Overview of CLGR® Grade 80 Twist Eye Choke Hook

Brand	CLGR®
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm, 18mm, 20mm/22mm
Tips	Color Code can be customized.
Note	Never exceed working load limit

Specifications of CLGR® Grade 80 Twist Eye Choke Hook

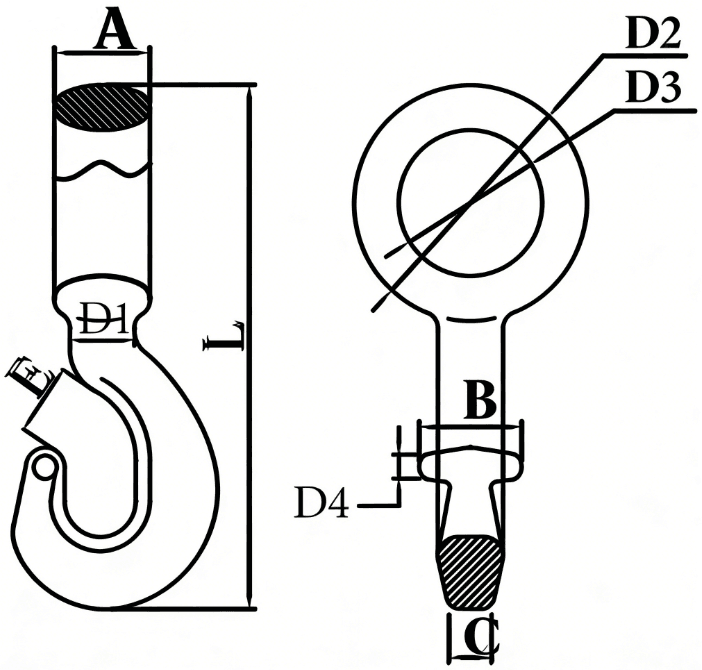

drawing-of-clgr-grade-80-twist-eye-choke-hook-china-supplier

Part No.	Weight (KG)	WLL (T)	BL (T)	A±1 (mm)	B±1 (mm)	C±0.5 (mm)	D1±1 (mm)	D2±0.3 (mm)	D3±1.5 (mm)	D4 (mm)	E±0.5 (mm)	L±2 (mm)
8CRTECH7/8	0.36	2	8	19	28	6.5	17	52	30.5	7.5	16	123
8CRTECH10	0.72	3.2	12.8	26	40	17.5	20	68	39	8	20	157
8CRTECH13	1.4	5.4	21.6	34	43	21	25	85	52	9.5	27	195
8CRTECH16	3.17	8.2	32.8	51	45.5	31	30	108	64	10.5	30	246
8CRTECH18	3.8	10	40	49.5	53	22	33.5	121	75	12	37	268
8CRTECH20/22	8.95	15.3	61.2	70	80	14	52	146	84	14	47	367
